AMX NI-900 Specifications
AMX NI-900 Specifications

AMX NI-900 Specifications

Amx netlinx ni-900 integrated controllers: specifications
Hide thumbs Also See for NI-900:

Advertisement

IR
I/O
SERIAL
MASTER
NI-900
1
1
TX
LINK/ACT
1
PROGRAM
2
2
RX
STATUS
CONFIGURATION
IR
ON
3
3
OUTPUT
RX
4
INPUT
FRONT VIEW
RS232 / 422 / 485
ETHERNET
10/100
L/A
SPD
3
2
1
4
3
2
1
IR RX
I/O
IR
AXlink
REAR VIEW
ID
NI-900
12VDC
PWR
NOTICE: This drawing is the
property of AMX Corporation.
All information contained herein
that is not generally known
shall be confidential except
to the extent the information
has been previously established.
This drawing may not be copied,
reproduced, or used as the basis
for manufacture or sale without
written permission.
REV
ECN
A
7200
REL APPR
REL DATE
UNLESS OTHERWISE SPECIFIED:
DRAWN
PVL
8/19/05
TOLERANCE ON DECIMAL DIMENSIONS: XX = .010
XXX = .005
ENGR SERV
TOLERANCE ON HOLE DIAMETERS:
ENGINEER
UNDER .250 ú
= +/- .005
.250 TO .500
= +.006 -.005
PROD ENGR
OVER .500
= +.008 -.005
FRACTIONAL DIMENSIONS INCLUDING HOLES: +/- 1/64
MATL SUP
ANGLES: +/- 1.0°
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
QUALITY
ALL DIMENSIONS IN INCHES.
THIRD ANGLE
DO NOT SCALE THIS DRAWING.
PROJECTION
REVISIONS
DESCRIPTION
DATE
APPROVED
PRODUCTION RELEASE
9/6/05
PVL
REV APPR

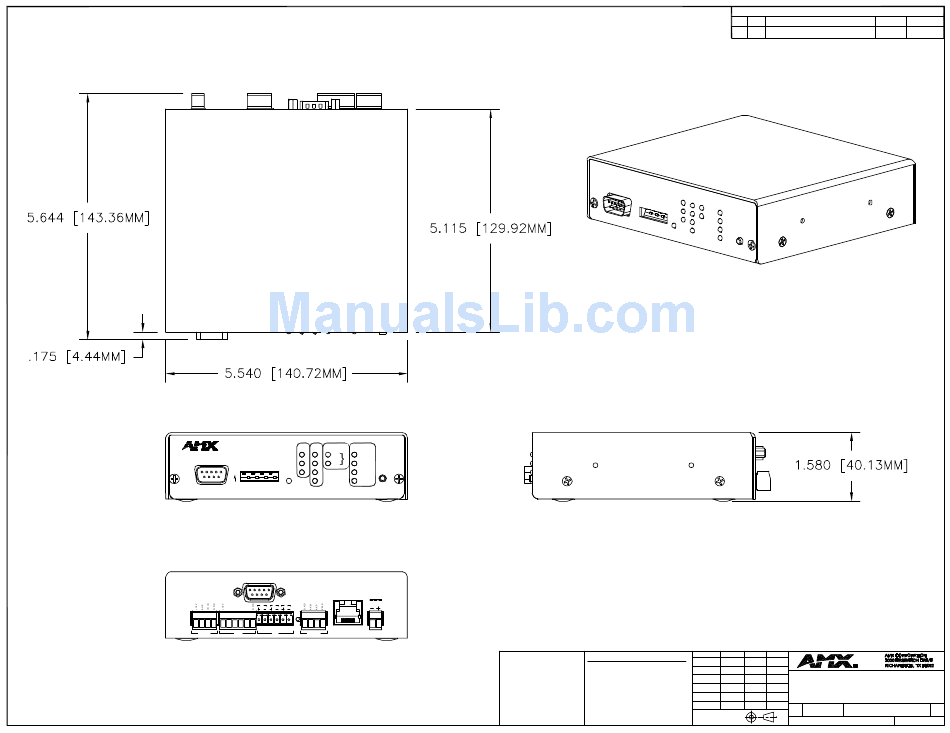

PICTORIAL,
NI-900
SIZE
SCALE
DWG. NO.
REV.
95-2105-09
C
N/A
A
95-2105-09_ Pictorial, NI-900.dwg
SHEET
1 OF 1
