Protoss-PE11 User Manual

2.1. Protoss-PE11 Pins Definition

Pin Description
1 AC Power Input
2 AC Power Input
5
6 Signal GND
7
RJ45 Ethernet
Restore to factory
Reload
setting button
Reset Reset button
Network status
Net
LED
UART Data
Active
Transfer
Power Power LED
Server
Link
connection LED
http://www.hi-flying.com

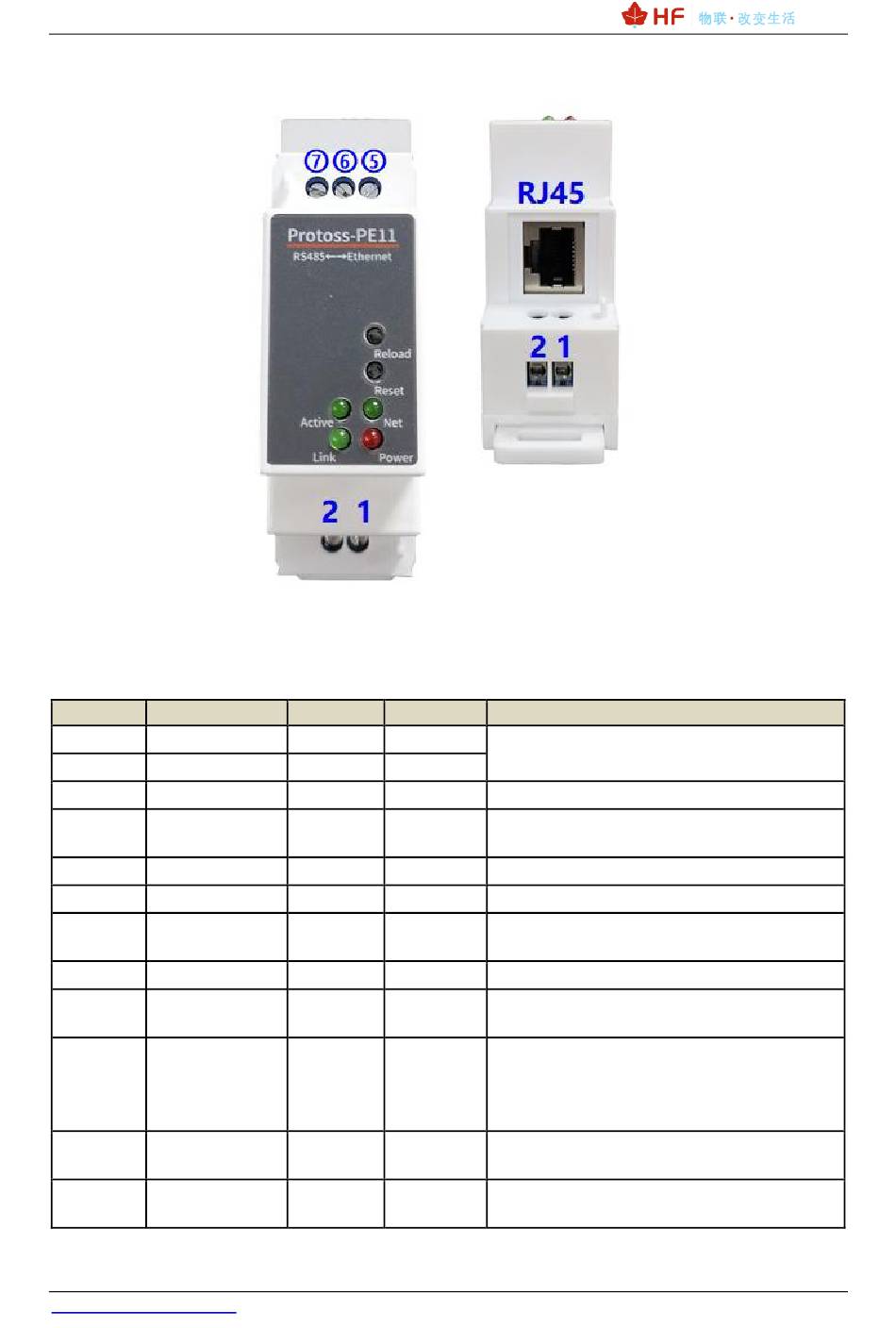

Figure 2. Protoss-PE11 Interface
Table2. Protoss-PE11-H Interface Definition
Net Name Signal Type
L Power
N Power
RS485_B- IO
GND Power
RS485_A+ IO
RJ45 I/O
Reload I
Reset I
Net O
Active O
Power O
Link O
- 9 -
Comment
100～240VAC Input
RS485 B-
Used for RS485 GND, usually leave it
unconnected
RS485 A+
Press down for more than 3 seconds and
loose to restore factory setting.
Hardware reset button
On: Ethernet connection is OK
Off: No Ethernet connection
Off: No data transfer
0.3s Off -> 0.9s On: UART TX Output
0.3s Off -> 0.3s On: UART RX Receive
On: UART bidirection.
On: Power input OK
Off: Power input NG.
On: netp Socket connection OK.
Off: no netp Socket connection.
