Solar Elf-SEG4xB User Manual
TTL/RS232/RS485/ to 4G&BLE
Overview of Characteristic
Adopting RISC architecture SOC chip, with a maximum frequency of 160MHz, 276KB RAM,
2MB Flash, based on FreeRTOS system
Supports 4G, LTE-TDD, LTE-FDD for all network connectivity, with optional sub models
supporting specific networks
Support BLE 5.0 for diagnostic or local Bluetooth debugging and data collection functions
Supports RS485/RS232/TTL (one out of three) to 4G data transmission, with a maximum
serial port speed of 460800bps
Support Solar Of Things photovoltaic energy management platform, web page or APP to
monitor energy data
Power supply: 5~ 36VDC@10W
Dimensions: 68.5 x 35 x 17.8mm
http://www.iotworkshop.com
Solar Elf-SEG4xB
User Manual
V 1.0
- 1 -
Advertisement
Table of Contents
Related Manuals for HF SOLAR Elf-SEG40B
Summary of Contents for HF SOLAR Elf-SEG40B
- Page 1 Solar Elf-SEG4xB User Manual Solar Elf-SEG4xB TTL/RS232/RS485/ to 4G&BLE User Manual V 1.0 Overview of Characteristic Adopting RISC architecture SOC chip, with a maximum frequency of 160MHz, 276KB RAM, 2MB Flash, based on FreeRTOS system Supports 4G, LTE-TDD, LTE-FDD for all network connectivity, with optional sub models supporting specific networks ...
-
Page 2: Table Of Contents
Solar Elf-SEG4xB User Manual TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS TABLE OF CONTENTS ................2 LIST OF FIGURES ..........................3 LIST OF TABLES ..........................3 PRODUCT OVERVIEW ......................4 1.1. General Description ......................4 1.2. Device Paremeters ......................4 1.3. -
Page 3: List Of Figures
Solar Elf-SEG42B+4PIN Connector....................14 Figure 17. RJ45 Conversion cable ........................14 Figure 18. Solar Elf-SEG40B + RJ45 Conversion cable ................. 15 Figure 19. Solar Elf-SEG41B + RJ45 Conversion cable ................. 15 Figure 20. Solar Elf-SEG42B + RJ45 Conversion cable ................. 16 Figure 21. -
Page 4: Product Overview
Solar Elf-SEG4xB User Manual 1. PRODUCT OVERVIEW 1.1. General Description Solar Elf-SEG4xB supports 4G full Netcom LTE-TDD and LTE-FDD. There are multiple sub- models that support 4G bands in different regions and the network supports a maximum downlink rate of 10Mbps and a maximum uplink rate of 5Mbps. Solar Elf-SEG4xB built-in rich network protocol, integrated RS232/RS485/TTL standard data transmission interface, without any driver, convenient for traditional serial device networking use. - Page 5 Frequency 2402GHz-2480GHz Tx Power Max 15dBm Rx Sensitive -97dBm Serial Port Number of serial ports Solar Elf-SEG40B:1 RS232 Interface standards Solar Elf-SEG41B:1 RS485 Solar Elf-SEG42B:1 TTL Data Bits Stop Bit Check Bit None, Even, Odd Baud Rate TTL: 1200 bps to 460,800 bps http://www.hi-flying.com/...
-
Page 6: Frequency Band Description
Solar Elf-SEG4xB User Manual No flow control Flow Control Half duplex (RS485) Software Firmware upgrade Serial port or OTA upgrade Configuration Basic Parameter SIM card interface Nano SIM (1.8V/3V) Size 68.5mm x 35mm x 17.8mm Operating Temp. -40 ~ 85° C Storage Temp. -
Page 7: Figure 1. Typical Applications
Solar Elf-SEG4xB User Manual Figure 1. Typical Applications http://www.hi-flying.com/ - 7 -... -
Page 8: Hardware Introduction

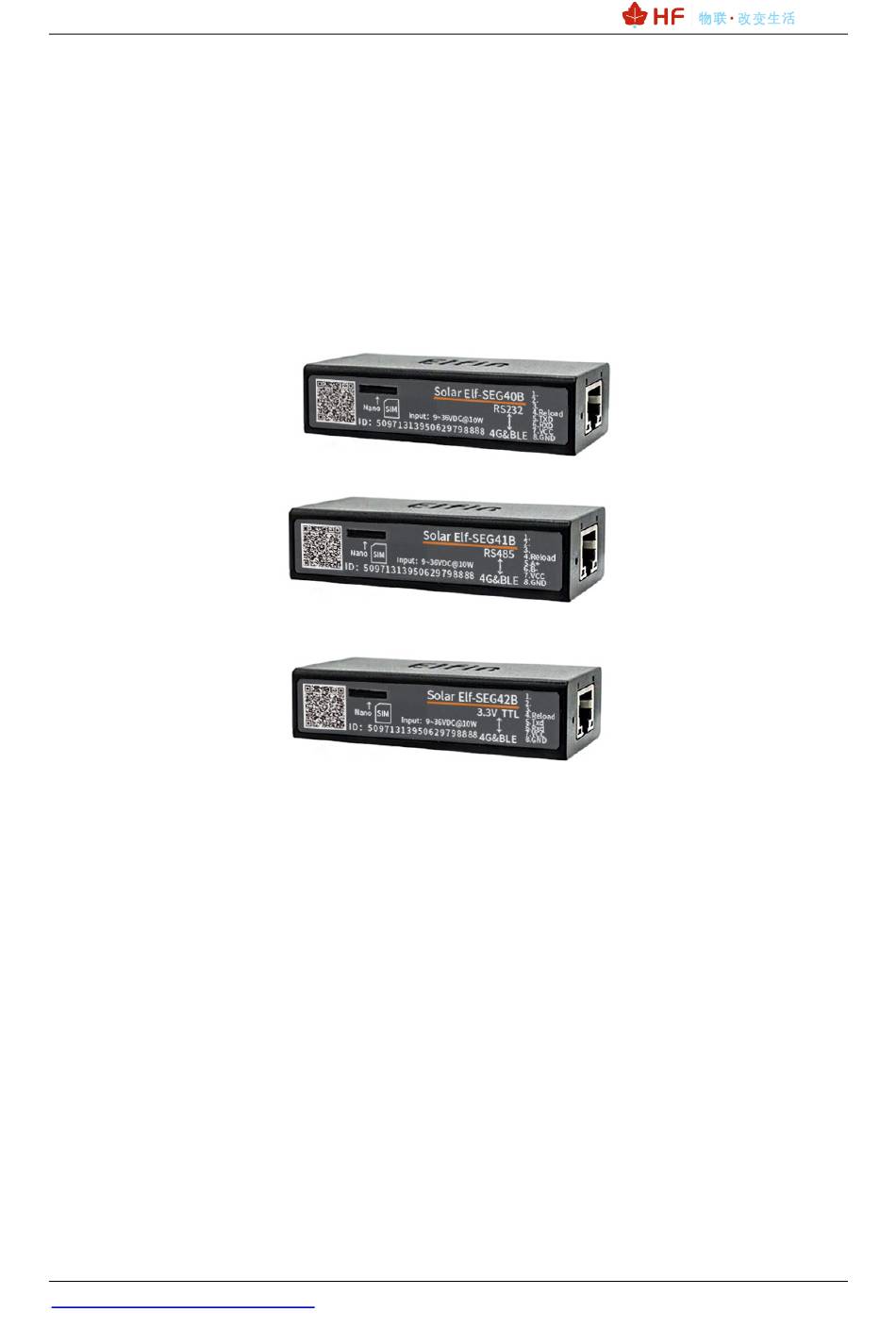

Solar Elf-SEG4xB User Manual 2. HARDWARE INTRODUCTION Solar Elf-SEG4xB is a cellular network solution with the function of serial device networking. 2.1. Device appearance diagram Figure 2. Solar Elf-SEG40B Appearance Figure 3. Solar Elf-SEG41B Appearance Figure 4. Solar Elf-SEG42B Appearance We provide different antenna type for customer to use. -
Page 9: Solar Elf-Seg4Xb Pins Definition
Table3. Solar Elf-SEG4xB Interface Definition Description Net Name Signal Type Comment Reserved Reserved Reserved Reserved Solar Elf-SEG40B：RS232 TX Solar Elf-SEG41B：RS485 A+ UART1_TXD UART1_TXD Solar Elf-SEG42B：3.3V TTL TX Solar Elf-SEG40B：RS232 RX Solar Elf-SEG41B：RS485 B- UART1_RXD UART1_RXD Solar Elf-SEG42B：3.3V TTL RX 5~36VDC@10W... -
Page 10: Sim Interface
Solar Elf-SEG4xB User Manual Description Net Name Signal Type Comment On: The power supply is normal. Off for 2 seconds and on for 2 seconds: The cellular network is registered and Green LED connected properly. Net Status Off for 0.1 seconds and on for 0.1 seconds: The cellular network is receiving or sending data Off: No data is being exchanged... -
Page 11: Ttl Interface
Solar Elf-SEG4xB User Manual 2.6. TTL Interface The serial port of this device has no hardware flow control function, and the physical level is ±3.3V 2.7. Mechanical Size The dimensions of Solar Elf-SEG4xB are defined as following picture (mm): Figure 8. Solar Elf-SEG4xB Mechanical Dimension 2.8. -
Page 12: Figure 10. Solar Elf-Seg40B +8Pin Connector
Solar Elf-SEG4xB User Manual Figure 10. Solar Elf-SEG40B +8PIN Connector Figure 11. Solar-Elf-SEG41B+8PIN Connector Figure 12. Solar Elf-SEG42B+8PIN Connector http://www.hi-flying.com/ - 12 -... -
Page 13: Rj45 4Pin Connector
Solar Elf-SEG4xB User Manual 2.9. RJ45 4PIN Connector Figure 13. RJ45 4PIN Connector Figure 14. Solar Elf-SEG40B +4PIN Connector Figure 15. Solar Elf-SEG41B+4PIN Connector http://www.hi-flying.com/ - 13 -... -
Page 14: Rj45 Conversion Cable
Solar Elf-SEG4xB User Manual Figure 16. Solar Elf-SEG42B+4PIN Connector 2.10. RJ45 Conversion cable Figure 17. RJ45 Conversion cable http://www.hi-flying.com/ - 14 -... -
Page 15: Figure 18. Solar Elf-Seg40B + Rj45 Conversion Cable
Solar Elf-SEG4xB User Manual Figure 18. Solar Elf-SEG40B + RJ45 Conversion cable Figure 19. Solar Elf-SEG41B + RJ45 Conversion cable http://www.hi-flying.com/ - 15 -... -
Page 16: Homemade Cable
Solar Elf-SEG4xB User Manual Figure 20. Solar Elf-SEG42B + RJ45 Conversion cable 2.11. Homemade cable Customers can make their own RJ45 conversion cable, add 232 DB9 interface, DC power connector, reset button and so on according to the following sequence. Figure 21. -
Page 17: Fixed Bracket
Solar Elf-SEG4xB User Manual 2.12. Fixed Bracket Figure 22. Fixed Bracket 2.13. Rail Bracket Figure 23. Rail Bracket 2.14. Bracket Figure 24. Bracket Size http://www.hi-flying.com/ - 17 -... -
Page 18: Product Installation
Solar Elf-SEG4xB User Manual Figure 25. Bracket Install Picture 2.15. Product Installation Figure 26. Product Installation 2.16. Order Information Base on customer detailed requirement, our product provide different configuration version, Details as below: http://www.hi-flying.com/ - 18 -... -
Page 19: Figure 27. Solar Elf-Seg4Xb Product Order Information
Solar Elf-SEG4xB User Manual Function Power Type Antenna UART Model Input External Solar Elf-SEG40B 5~36VDC 4G&BLE RS232 External Solar Elf-SEG41B 5~36VDC 4G&BLE RS485 External Solar Elf-SEG42B 5~36VDC 4G&BLE 3.3V TTL Figure 27. Solar Elf-SEG4xB Product Order Information http://www.hi-flying.com/ - 19 -... -
Page 20: Appendix A: Contact Information
Solar Elf-SEG4xB User Manual APPENDIX A: CONTACT INFORMATION <END OF DOCUMENT> http://www.hi-flying.com/ - 20 -...
