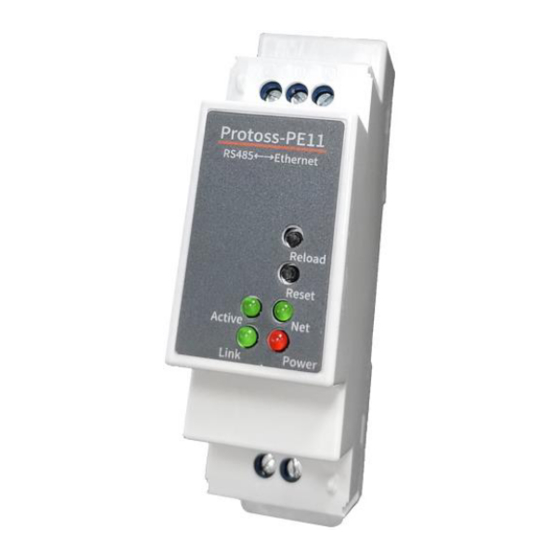

Protoss-PE11 User Manual
Overview of Characteristic
Cortex-M3 MCU with 2MB Flash and 128KB SRAM
Use FreeRTOS Operation System
Support TCP/UDP/MQTT/HTTP/WebSocket Protocol
Support Modbus TCP to RTU, Modbus Master Function
Support RS485 To 10/100M Ethernet Conversion, Serial Speed Up to 460800 bps
Support 10/100M Ethernet Auto-Negotiation
http://www.iotworkshop.com
Protoss-PE11
RS485 to Ethernet
User Manual
V 1.1
- 1 -
Advertisement
Table of Contents
Related Manuals for HF Protoss-PE11
Summary of Contents for HF Protoss-PE11
- Page 1 Protoss-PE11 User Manual Protoss-PE11 RS485 to Ethernet User Manual V 1.1 Overview of Characteristic Cortex-M3 MCU with 2MB Flash and 128KB SRAM Use FreeRTOS Operation System Support TCP/UDP/MQTT/HTTP/WebSocket Protocol Support Modbus TCP to RTU, Modbus Master Function ...
- Page 2 Protoss-PE11 User Manual Support Webpage Easy Configuration or PC IOTService Tool Support Security Protocol Such As AES/DES3 Support Heartbeat and Resister Packet Function Support Webpage OTA Wireless Upgrade Support Industrial Temperature: -40 to +85˚ C ...
-
Page 3: Table Of Contents
1.1. General Description ......................6 1.2. Device Paremeters ......................6 1.3. Key Application ........................ 7 HARDWARE INTRODUCTION ................... 8 2.1. Protoss-PE11 Pins Definition ..................9 2.2. RS485 Interface ......................10 2.3. RJ45 Interface ........................10 2.4. Mechanical Size ......................11 2.5. Product Installation .......................13 2.6. -
Page 4: List Of Figures
Protoss-PE11 Appearance ......................8 Figure 2. Protoss-PE11 Interface ........................9 Figure 3. RJ45 Pin Defination ........................10 Figure 4. Protoss-PE11 Mechanical Dimension .................... 12 Figure 5. Product Installation ........................13 Figure 6. Protoss-PE11 Product Order Information ..................13 http://www.iotworkshop.com - 4 -... -
Page 5: List Of Tables
Protoss-PE11 User Manual LIST OF TABLES Table1. Protoss-PE11 Technical Specifications ....................6 Table2. Protoss-PE11-H Interface Definition ....................... 9 Table3. Protoss-PE11-M Interface Definition ....................10 Table4. RJ45 Interface ............................11 HISTORY Ed. V1.0 02-10-2020 First Version Ed. V1.1 03-18-2020 Update RS485 interface http://www.hi-flying.com... -
Page 6: Product Overview
TCP/IP network stack and FreeRTOS OS. Protoss-PE11 also includes an embedded web server used to configure device. The Protoss-PE11 using highly integrated hardware and software platform, it has been optimized for all kinds of applications in the industrial control, smart grid, personal medical application and remote control that have lower data rates, and transmit or receive data on an infrequent basis. -
Page 7: Key Application
Protoss-PE11-H：100～240VAC@50～60Hz Input Voltage Protoss-PE11-M：9～48VDC@1A Working Current ~100mA Power <400mW 1.3. Key Application The Protoss-PE11 device connects serial device to Ethernet networks using the TCP/IP protocol: ⚫ Remote equipment monitoring ⚫ Asset tracking and telemetry ⚫ Security Application ⚫ Industrial sensors and controls ⚫... -
Page 8: Hardware Introduction
Protoss-PE11 User Manual 2. HARDWARE INTRODUCTION The Protoss-PE11 unit is a complete solution for serial port device connecting to network. This powerful device supports a 10/100BASE-T Ethernet connection, a reliable and proven operating system stored in flash memory, an embedded web server, a full TCP/IP protocol stack, and standards- based (AES) encryption. -
Page 9: Protoss-Pe11 Pins Definition
Protoss-PE11 User Manual 2.1. Protoss-PE11 Pins Definition Figure 2. Protoss-PE11 Interface Table2. Protoss-PE11-H Interface Definition Description Net Name Signal Type Comment 100～240VAC Input AC Power Input Power AC Power Input Power RS485 B- RS485_B- Used for RS485 GND, usually leave it... -
Page 10: Rs485 Interface
Protoss-PE11 User Manual Table3. Protoss-PE11-M Interface Definition Description Net Name Signal Type Comment 9～48VDC@1A Input DC Power Input VCC+ Power DC Power Input GND- Power RS485 B- RS485_B- Used for RS485 GND, usually leave it Signal GND Power unconnected RS485 A+... -
Page 11: Mechanical Size
Description Transfer Data+ Transfer Data- Receive Data+ Transformer Tap Voltage PHY-VCC Transformer Tap Voltage PHY-VCC Receive Data- None Connect N.C. None Connect N.C. 2.4. Mechanical Size The dimensions of Protoss-PE11 are defined as following picture (mm): http://www.hi-flying.com - 11 -... -
Page 12: Figure 4. Protoss-Pe11 Mechanical Dimension
Protoss-PE11 User Manual Figure 4. Protoss-PE11 Mechanical Dimension http://www.hi-flying.com - 12 -... -
Page 13: Product Installation
Protoss-PE11 User Manual 2.5. Product Installation Figure 5. Product Installation 2.6. Order Information Base on customer detailed requirement, Protoss-PE11 provide different configuration version, Details as below: Figure 6. Protoss-PE11 Product Order Information http://www.hi-flying.com - 13 -... -
Page 14: Function Description
Protoss-PE11 User Manual 3. FUNCTION DESCRIPTION Refer to “IOT_Device_Series_Software_Funtion” document for more detailed function. http://www.hi-flying.com - 14 -... -
Page 15: Appendix A: Contact Information
Protoss-PE11 User Manual APPENDIX A: CONTACT INFORMATION ------------------------------------------------------------------------------------------------------------ Address: Room 1002,Building 1,No.3000,Longdong Avenue,Pudong New Area,Shanghai,China,201203 Web: www.iotworkshop.com www.hi-flying.com Contact: Sales: sales@iotworkshop.com Support: support@iotworkshop.com Service: service@iotworkshop.com Business: business@iotworkshop.com ---------------------------------------------------------------------------- ------------------------------- For more information about IOTworkshop modules, applications, and solutions, please visit our web site www.iotworkshop.com...
