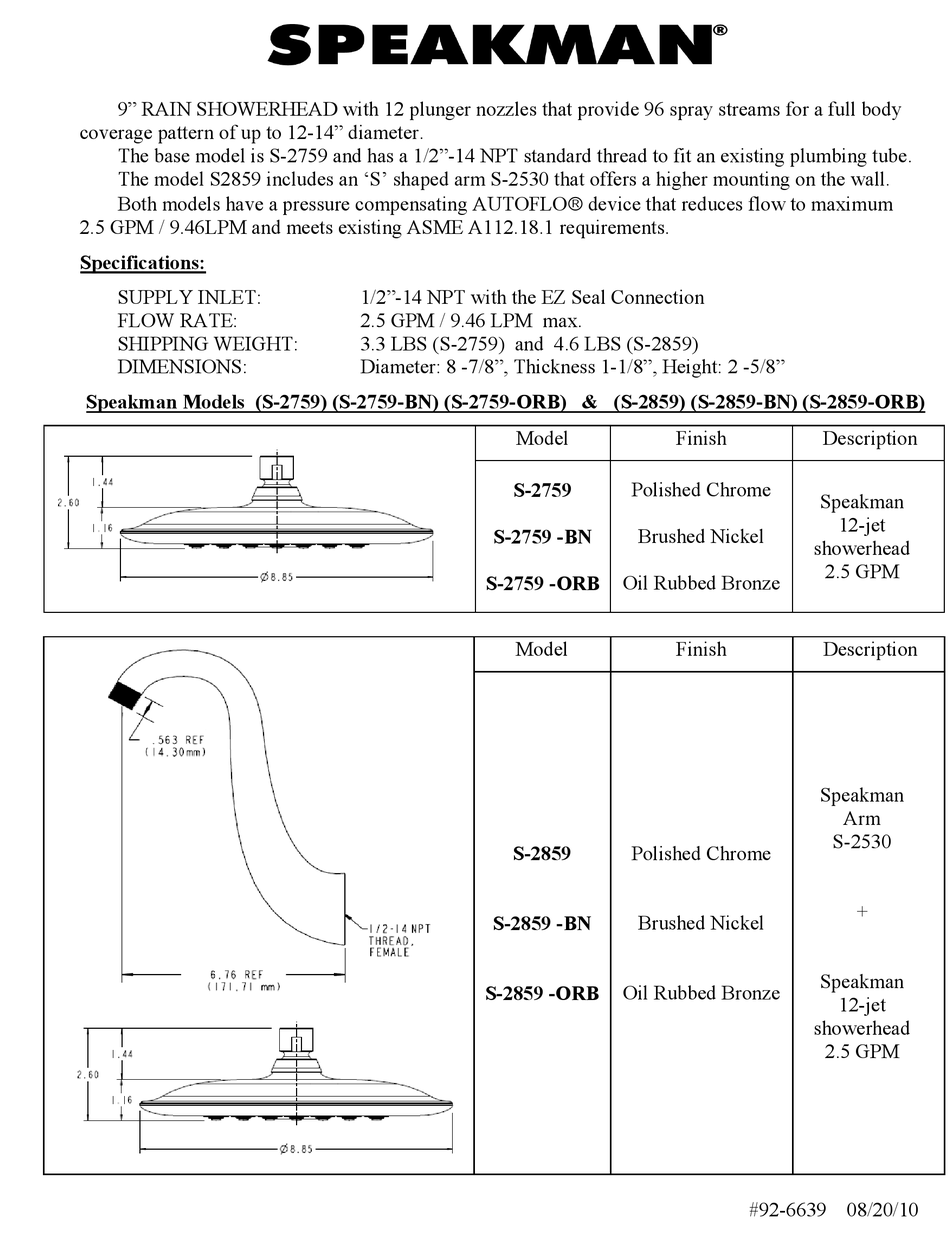

9" RAIN SHOWERHEAD with 12 plunger nozzles that provide 96 spray streams for a full body
coverage pattern of up to 12-14" diameter.
The base model is S-2759 and has a 1/2"-14 NPT standard thread to fit an existing plumbing tube.
The model S2859 includes an 'S' shaped arm S-2530 that offers a higher mounting on the wall.
Both models have a pressure compensating AUTOFLO device that reduces flow to maximum
2.5 GPM / 9.46LPM and meets existing ASME A112.18.1 requirements.
Specifications:
SUPPLY INLET:
FLOW RATE:
SHIPPING WEIGHT:
DIMENSIONS:
Speakman Models (S-2759) (S-2759-BN) (S-2759-ORB) & (S-2859) (S-2859-BN) (S-2859-ORB)
1/2"-14 NPT with the EZ Seal Connection
2.5 GPM / 9.46 LPM max.
3.3 LBS (S-2759) and 4.6 LBS (S-2859)
Diameter: 8 -7/8", Thickness 1-1/8", Height: 2 -5/8"
Model
S-2759
S-2759 -BN
S-2759 -ORB
Model
S-2859
S-2859 -BN
S-2859 -ORB
Finish
Polished Chrome
Brushed Nickel
Oil Rubbed Bronze
Finish
Polished Chrome
Brushed Nickel
Oil Rubbed Bronze
#92-6639 08/20/10
Description
Speakman
12-jet
showerhead
2.5 GPM
Description
Speakman
Arm
S-2530
+
Speakman
12-jet
showerhead
2.5 GPM
