How do I connect my headset with my Alcatel IP Touch
4028EE, 4038EE or 4068EE?
Jabra Pro 9470 Mono

Requirements:

Jabra Link 14201-20
To connect your headset, please follow these steps:
1. Plug one end of the phone cable supplied with your Jabra device into
the socket marked phone on your Jabra device base
2. Plug the other end of that cable into the socket marked with a phone
symbol on the EHS adapter
3. Plug the red end of the cable (EHS adapter) to the socket marked AUX
on the EHS adapter
4. Plug the other end into the AUX socket on your Jabra device base
5. Plug the cable marked white and "D" to the socket marked
Headset/handset on the EHS adapter
6. Plug the other end to the headset socket on your phone
7. Plug the orange cable marked "A" to the socket marked COM on the
EHS adapter
8. Plug the other end of that cable to the "bell" socket on your phone

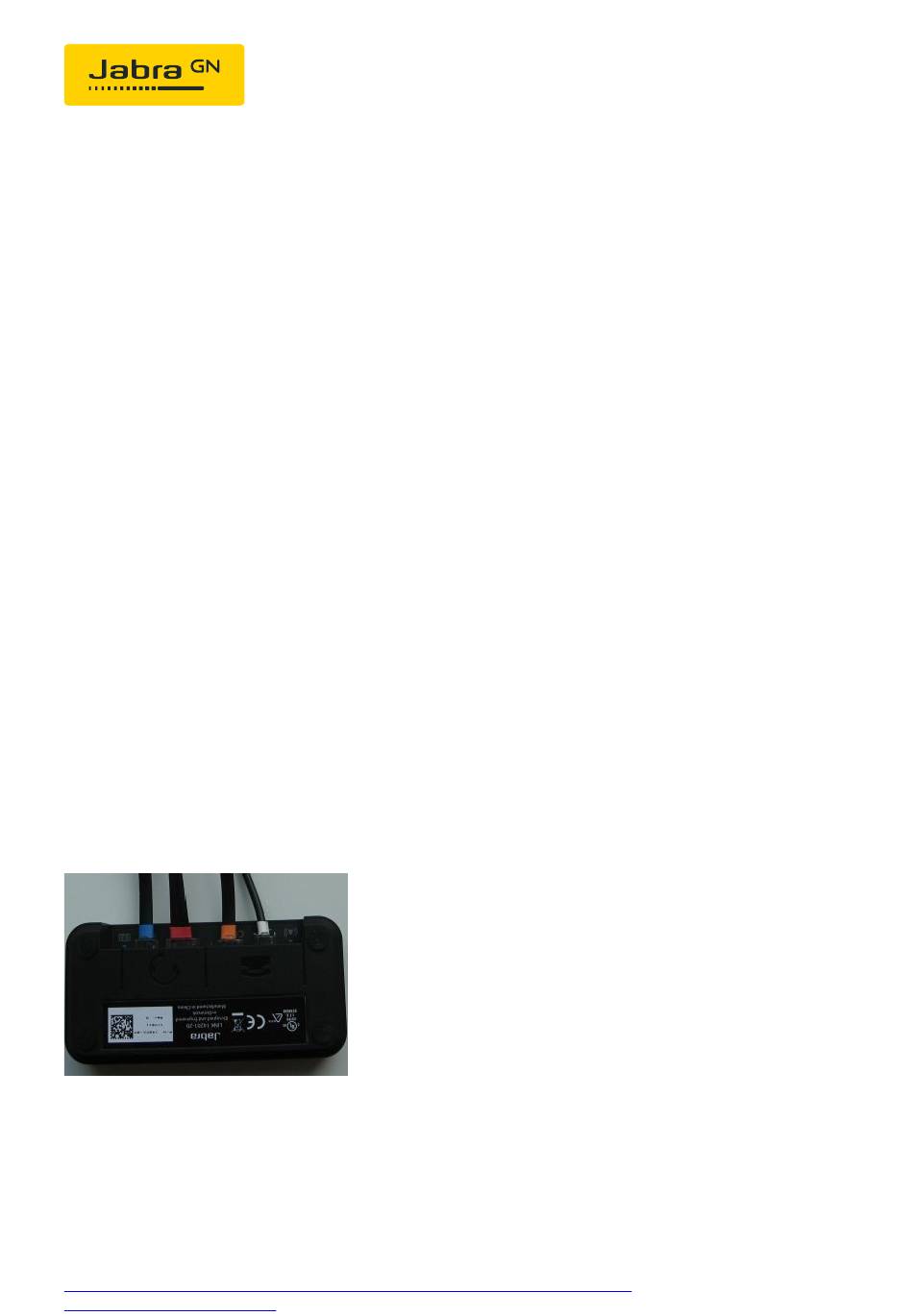

Please be aware that the device will not be fully functional until the
colored markings for all cables have been connected to the EHS adapter
(see photo).
