Jabra Pro 920Mono How Do

How do i connect my wireless headset with the link 14201-17 to my polycom desk phone so i have remote call control using my headset

How do I connect my Jabra wireless headset with the Jabra

Link 14201-17 to my Polycom desk phone so I have remote call

control using my headset?

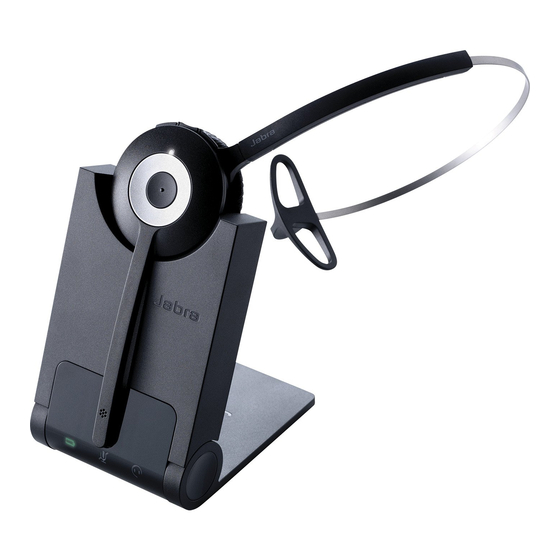

Jabra Pro 920 Mono

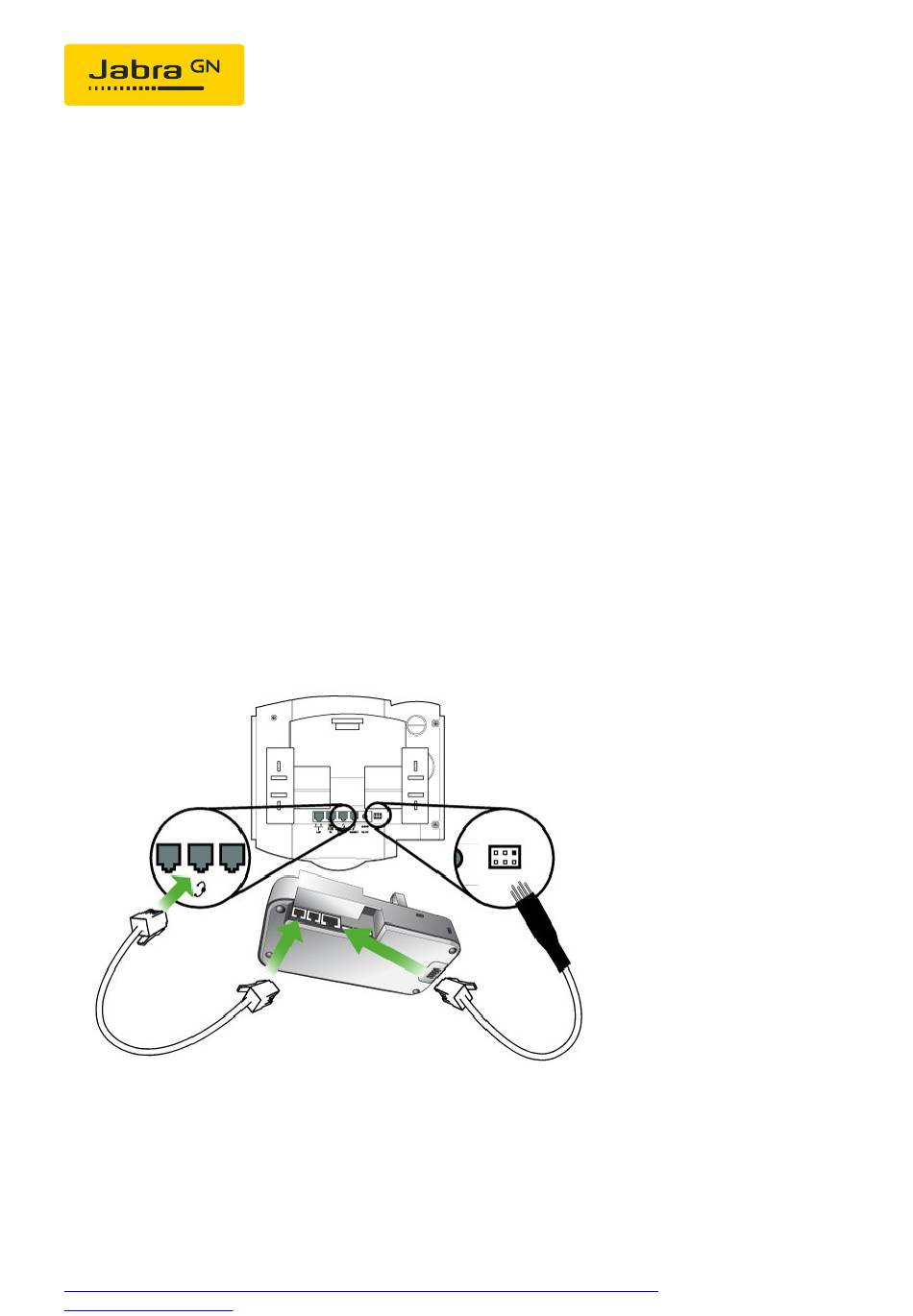

Connection:

1. Connect the AC adapter (supplied with the headset) to the headset

base, and connect the other end to an electrical outlet.

2. Connect the modular connector (supplied with the headset) to the

headset interface on your Polycom phone, and connect the end with the

blue band to the headset base socket that is marked with a phone icon.

3. Connect the Jabra Link 14201-17 EHS cable with the red band to the

AUX interface on the headset base, and connect the other end to the

AUX interface on the Polycom phone.

1. Ensure the "Headset Hook Switch" function on the desk phone is set to

"Jabra EHS". Refer to your phone or IT support for assistance.

https://www.jabra.com/supportpages/jabra-pro-920/920-65-508-105/faq/6f849251-f166-

4f92-864c-950abfb88ccf

06/04/2021 16:25

Page 1 of 2

Table of Contents

Do you have a question about the Pro 920Mono and is the answer not in the manual?

Page 1 3. Connect the Jabra Link 14201-17 EHS cable with the red band to the AUX interface on the headset base, and connect the other end to the AUX interface on the Polycom phone.
Page 2 06/04/2021 16:25 2. Follow the setup instructions for your Jabra wireless headset. If the headset base requires manual configuration, set the Electronic Hook Switch setting to “DHSG” and set the dial tone switch to position “A”. 3. Make a call to the headset. If the volume of your voice is too loud or quiet to the person you are calling, adjust the headset microphone volume until you achieve the optimum level.
