TEST PRINT (FOR SERVICE)
1. Enter the test mode and select the test print mode (for service).
2. Press the ENTER button. (Test print is carried out.)
Another procedure
1.Press the switch inside the hole on the front panel. (See the figure on the right)
When you press the switch and release it within one second, the test print is carried
out. When you press and hold the switch for five seconds or more, the printer is reset.

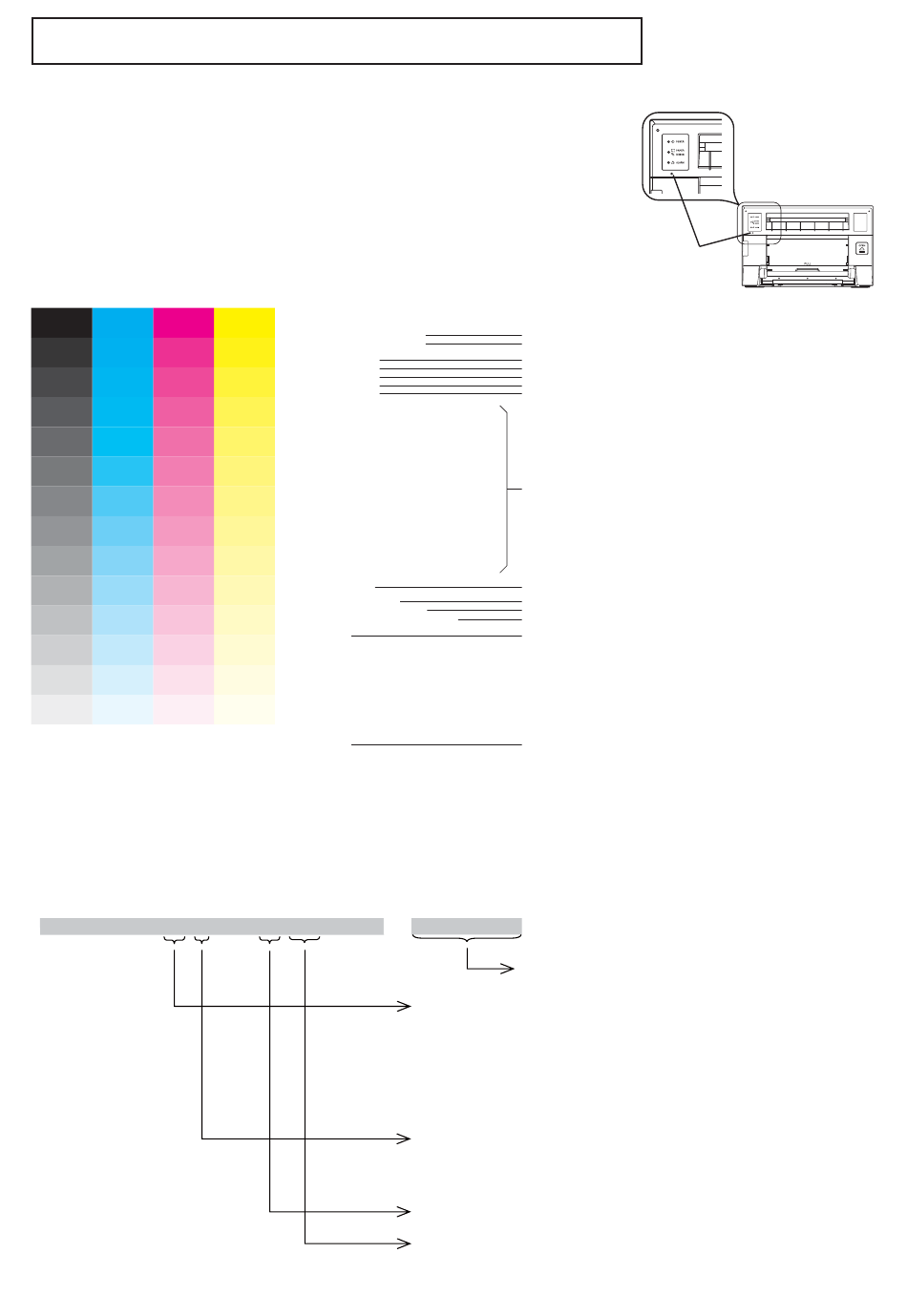

REFERENCE METHOD OF ERROR INFORMATION

Service Test Print
Please refer from the following format to the situation when the error occurs.
a a b b c c d d e e f f
CP-D70/707 Test Print (02)
Print Count : 3736223
Cut Count : 0787693
L315A1 27A9F
M316A1 3BA7C
F317A1 464F5
T318A1 3F8DF
R319A1 2C32E
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
XXXXXXXXXXXXXXhhXXXXXXXX YYYYYYY
i Sn : CPD70D
1DC 00 FF 04 38 00
00 00 00 00 00 B8 FF 00 00
FF645500 FF645500 FF645500FF
7800 11
0000234
07MEL2SPA0
0002D1
00000190
00000000
000000000000
0000234
53
3736223
g g h h i i i i j j k k
Number of printings of the head
Number of cuts
Loader version and check sum
Main version
FPGA version
Copy version
Tag version
Errors
i serila
Thermistor (Head HDTH, KTH inside, Platen PTH, Humidity HUM, Drive HTH, Motor MTH)
Horizontal adjustment, Y top margin, Margin cut amount, Continuous cut amount, Post, M1 phase current, M3duty, M5duty, M6duty
S15 (Light quantity duty/Threshold ↑/Threshold ↓/AD value) S16 (same as S15) Post (Light
quantity duty/Threshold ↑/Threshold ↓/AD value white/AD value black)
Coefficient of density adjustment, 24-V adjustment
Total number of printings
x x x x x x x
x x x x x x x : Total Print Count ( Hex )
e e : Printin g Size ( Hex )
0 1 : 3.5x5 "
0 2 : 4x6 "
0 4 : 5x7 "
0 5 : 6x9 "
0 A : 6x8"
F F : No Information (Error happens before printing)
f f : Printing Speed (Hex)
0 0 : Standard
0 1 : Slow
F F : No Information (Error happens before printing)
h h : Error Code (Refer to the Error Code on page 6 of DIAGNO)
i i i i : Rest Print Count ( Hex )
- 5 -
