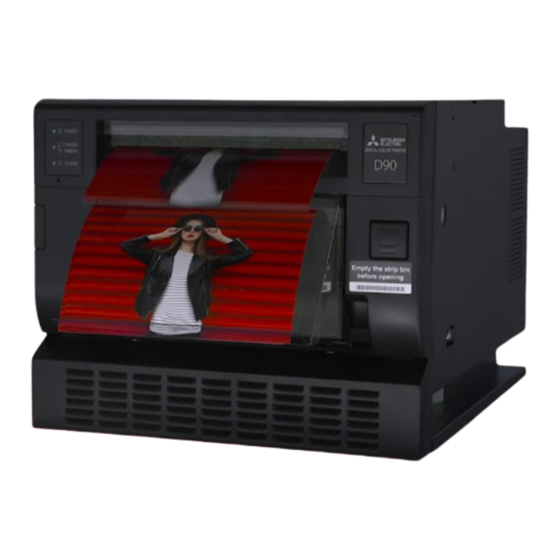

- Page 1 DIGITAL COLOR PRINTER MODEL CP-D90DW-SL OPERATION MANUAL THIS OPERATION MANUAL IS IMPORTANT TO YOU. PLEASE READ IT BEFORE USING YOUR DIGITAL COLOR PRINTER.
- Page 2 WARNING : TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. WARNING: Use the included AC power cord so as not to interfere with radio and television reception. If you use other cables, it may cause interference with radio and television reception. CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN...
- Page 3 This symbol mark is according to the directive 2012/19/EU Article 14 Information for users and Annex IX, and/or to the directive 2006/66/EC Article 20 Information for end-users and Annex II. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and/or reused.
-
Page 4: Table Of Contents
CONTENTS CONTENTS ........................1 SAFETY PRECAUTIONS ....................2 PROTECTIVE MEASURES ................2 INSTALLATION LOCATIONS ................3 FOR LONG OPERATING LIFE................3 OTHER CAUTIONS ....................4 SPECIAL FEATURES ....................5 UNPACKING ........................6 FEATURES AND FUNCTIONS ..................7 FRONT PANEL ....................7 SIDE AND REAR PANELS .................8 BEFORE OPERATION ....................9 PRINTER SETUP PROCEDURE ...............9 PRINT PAPER INSTALLATION ................10 INK RIBBON INSTALLATION ................12 HANDLING OF PAPER / INK RIBBON SET ............14... -
Page 5: Safety Precautions
SAFETY PRECAUTIONS In the interest of safety, please observe the following precautions: POWER REQUIREMENT This Digital Color Printer is designed to operate on 100 - 240 V AC 50/60 Hz. Never connect to any outlet or power supply having a different voltage or frequency. In addition, be sure to supply power to the printer from a receptacle with a ground fault circuit interrupter. -
Page 6: Installation Locations
SAFETY PRECAUTIONS DO NOT LEAVE THE PRINTING UNIT OPEN When the printer is moved with the printing unit open, it may cause injury or damage. CLOSE THE PRINTING UNIT FIRMLY Take care not to pinch your hand when closing the printing unit. When the printing unit is not closed firmly, it may open during transportation and it may cause injury or damage. -
Page 7: Other Cautions
SAFETY PRECAUTIONS OTHER CAUTIONS • Do not pull out nor touch the print paper until printing is completed. It may degrade the print quality or cause an error. • Dust or other foreign matter adhering to the print paper or the ink cassette, or deformation resulting from exposure to extremely low or high temperatures could cause loss of color, uneven color or lines, or wrinkles in the print images. -
Page 8: Special Features
HIGH QUALITY PRINTS CP-D90DW-SL is a dye sublimation thermal transfer color printer, which produces superior high quality images. It also produces a continuous tone at 256 gradient for each of Y, M, and C. HIGH SPEED PRINTING... -
Page 9: Unpacking
UNPACKING Take the printer out of the box by the following procedures. Make sure to check the accessories. Open the printer box from the top and remove Protective the top cushion containing the accessories out cardboard of the box. Remove the protective cardboard and then take the accessories Accessories out of the cushion. -
Page 10: Features And Functions
FEATURES AND FUNCTIONS FRONT PANEL ALARM INDICATOR ( ) OPENING THE DOOR This indicator illuminates or blinks when a paper jam Pull out the printing unit by pressing the OPEN button occurs, the door is open, or the paper strip bin is and then pull the knob to open the door. -
Page 11: Side And Rear Panels
FEATURES AND FUNCTIONS SIDE AND REAR PANELS RIGHT SIDE PANEL LEFT SIDE PANEL REAR PANEL VENTILATION INLETS RECESSED AREA FOR TRANSPORTING These inlets are for cooling the inside of the printer. When carrying the printer, hold this area and the handle on the left side panel ( DC POWER SWITCH SECURING HOLES FOR THE CABLE TIE... -
Page 12: Before Operation
BEFORE OPERATION PRINTER SETUP PROCEDURE Before printing, follow the printer setup listed below. Install the print paper to this printer. (See pages 10 to 11.) Install the ink ribbon to this printer. (See pages 12 to 13.) Connect the printer to a personal computer. (See page 15.) Make sure to close the printing unit when the setup procedure is completed. -
Page 13: Print Paper Installation
BEFORE OPERATION PRINT PAPER INSTALLATION Attach the supplied paper flanges to both sides of the print paper. When you pinch the latches on the paper flange, the stoppers retract into the shaft. Attach the flanges to the print paper with the stoppers retracted. Make sure that the flanges are attached to the print paper securely, and release the latches. - Page 14 BEFORE OPERATION Install the print paper into the unit. Place the printing paper in the correct orientation. Make sure the paper roll is firmly installed. CAUTION • Do not push down on the printing unit or the door. If you push down on the printing unit or the door when they are open, this unit may fall and it can cause damage or injury.
-
Page 15: Ink Ribbon Installation
BEFORE OPERATION INK RIBBON INSTALLATION After installing the print paper, install the ink cassette into this unit. Before installing the ink cassette into this unit, load the ink ribbon in the ink cassette. NOTE • Place the ink cassette on a flat surface, when loading the ink ribbon. •... - Page 16 BEFORE OPERATION Push the printing unit to close. Close the printing unit by pushing the right and left sides of the unit from the front with both hands. When a new paper is loaded and the printing unit is closed with the power turned on, the paper will be automatically fed and cut.
-
Page 17: Handling Of Paper / Ink Ribbon Set
BEFORE OPERATION HANDLING OF PAPER / INK RIBBON SET BEFORE PRINTING • Fingerprints or dust on the paper printing surface may produce poor print quality and cause paper jams. • When the print paper or ink ribbon is abruptly transferred from a cool place to a hot place, vapor or dew is generated on the surface, which causes paper jams or degraded print quality. -
Page 18: Connection With Usb Data Signal Equipment
BEFORE OPERATION CONNECTION WITH USB DATA SIGNAL EQUIPMENT CONNECTING TO PERSONAL COMPUTER (EXAMPLE) Check that the printer is turned on before connection. Turn on the power of a personal computer. Connect the printer and a personal computer with a USB cable. Connect the printer to a personal computer as shown below. -
Page 19: Error Messages And Countermeasures
ERROR MESSAGES AND COUNTERMEASURES INDICATIONS ON THE FRONT PANEL AND COUNTERMEASURES If, for some reason, printing is not possible or an error occurs during printing, the indicators on the front panel will illuminate or blink. In this case, follow the procedure described below. : Steady on : Off : Blinking... -
Page 20: Overcoming Paper Jams
ERROR MESSAGES AND COUNTERMEASURES OVERCOMING PAPER JAMS Press the OPEN button to open the printing unit. Make sure that the power is turned on before opening the printing unit. OPEN button Remove the ink cassette. Remove the paper strip bin and then pull the knob to open the Knob door. -
Page 21: Repairing A Torn Ink Ribbon
ERROR MESSAGES AND COUNTERMEASURES REPAIRING A TORN INK RIBBON Position the ink cassette with the torn ink ribbon on a flat, clean surface. Place a piece of transparent adhesive cellophane tape on the center of the ink ribbon. Cellophane tape Direction to turn the shaft Wind the shaft of the ink ribbon in the direction of the arrow so that the cellophane tape is not... -
Page 22: Before Calling For Service
ERROR MESSAGES AND COUNTERMEASURES BEFORE CALLING FOR SERVICE For the following symptoms, check the unit again before calling for service. Symptom Check & Remedy The power is not turned on. Is the power cord plug disconnected from the outlet? →... -
Page 23: Cleaning
CLEANING Cleaning as indicated below will help maintain stable printer operation and extend the printer’s life. Wearing gloves at cleaning is recommended to prevent injury. Make sure to turn off the power before cleaning. VENTILATION INLET CLEANING Ventilation inlets Clean the ventilation inlets on the front and both sides of the printer with a vacuum as shown right. -
Page 24: Platen Roller Cleaning
CLEANING PLATEN ROLLER CLEANING Preparations Platen roller Alcohol (ethyl alcohol, etc.) Soft and clean cloth Clean the black part of the roller. Wipe the black part carefully with cloth dampened with a small amount of alcohol. Wipe the whole roller by turning it. PAPER FLANGE CLEANING Clean the parts that contact the print paper sides as shown right. -
Page 25: Specifications
SPECIFICATIONS Class Digital Color Printer Model CP-D90DW-SL Printing method Sublimation Dye Thermal Transfer line print 3-color faces progressive printing (yellow, magenta, and cyan) and surface lamination Print’s resolution 300 x 300 dpi (dpi : dots per inch) Dot resolution 10x15 (4x6”) 1226 x 1852 dots 15x20 (6x8”) - Page 26 MITSUBISHI ELECTRIC US, INC. Visual and Imaging Systems 5900-A Katella Ave. Cypress, CA 90630-5019, U.S.A. Phone +1 (714) 220-2500 US Office Main (888) 307-0388 Product Information Within USA (888) 307-0309 Product Support Within USA MITSUBISHI ELECTRIC EUROPE B.V. UK Branch Travellers Lane, Hatfield, Herts.
