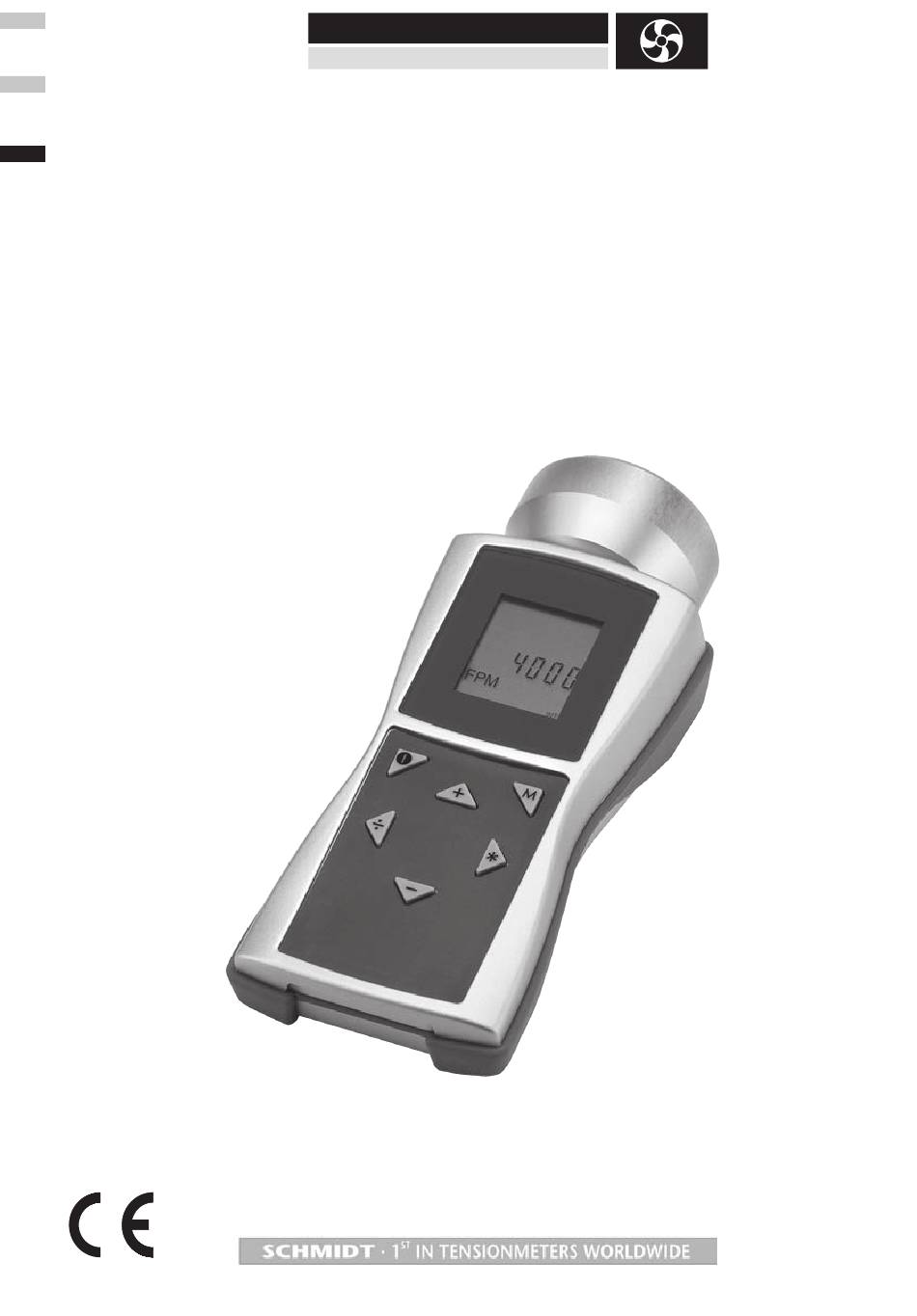

Stroboscope
DSL Series
Model
DSL-300
DSL-300-T (with trigger connection )
S C H M I D T
c o n t r o l
i n s t r u m e n t s
Operating Instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Schmidt DSL Series

Summary of Contents for Schmidt DSL Series

  • Page 1 Stroboscope S C H M I D T c o n t r o l i n s t r u m e n t s DSL Series Model DSL-300 DSL-300-T (with trigger connection ) Operating Instructions...
  • Page 2 Figure 1 Printed declaration of CE-conformity on request We reserve the right to make technical changes without prior notice. We have taken the utmost care to prevent errors. Liability in the event of any errors shall be excluded.
  • Page 3 Technical Data General data Protection class IP65 Frequency range 30 – 300.000 FPM ( ashes per minute) Display LCD, multiple lines Accuracy 0,02% (+/- 1 digit) Resolution +/- 0,1 (30 ... 999 FPM) +/- 1 (1.000 ... 300.000 FPM) Certi cates Flash parameter Flash duration Adjustable...

  • Page 4: Intended Use

    These operating instructions are an integral component of the device. They must be accessible at all times and passed on to future users. If there is something you do not understand please contact your supplier. The manufacturer reserves the right to continue to develop this device without docu- menting this in all cases.

  • Page 5: Operation

    4. Operation NOTE! This chapter gives instructions for the operation of the version of the device without trigger connection. NOTE! Special functions and information on how to use the version of the device with trigger connection are described in chapter 9: „Additional operating information…“. Position of buttons (Figure 1) A = on/off.

  • Page 6: Accessories (Optional)

    5. Information on use of special functions PULS μs / PULS deg Flash duration. This function enables you to set the  ash duration. Using this function, you can in uence the brightness and focus of the object of observation. This adjustment can either be made in absolute form (microseconds) or in relative form (degrees).
  • Page 7 9. Additional operating information for the version with trigger connection (DSL-300-T) ATTENTION! Do not use signals over 300,000 FPM Hz to trigger the device. INFORMATION! The device must be switched manually between external and internal trigger signal. RECOMMENDATION: Only use original material from the manufacturer for trigger signal con- nection.
  • Page 8 Mailing address: Phone: e-mail: P. O. B. 1154 int. + 49 / (0)8638 / 9410-0 info@hans-schmidt.com 84464 Waldkraiburg Germany Fax: Shipping address: int. + 49 / (0)8638 / 4825 Internet: Schichtstr. 16 int.

This manual is also suitable for:

Dsl-300Dsl-300-t
