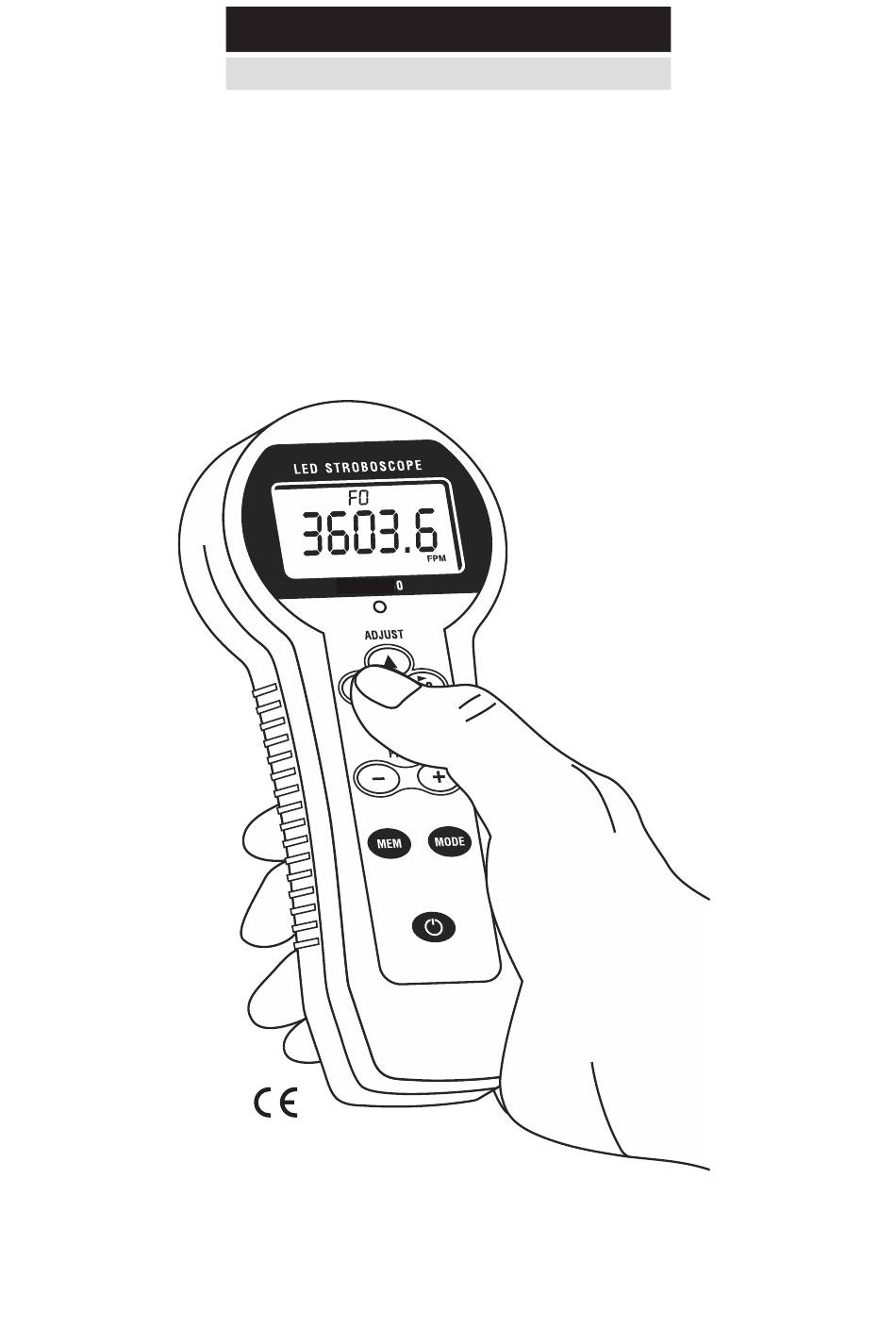

- Page 1 S C H M I D T c o n t r o l i n s t r u m e n t s Stroboscope DSL-200 INSTRUCTION MANUAL ®...
-
Page 2: List Of Equipment

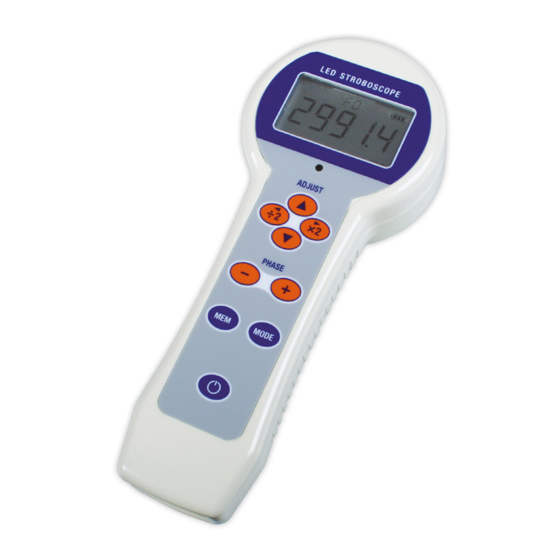

LED Stroboscope Model DSL-200 Introduction DSL-200 Model is a super bright, battery operated, LED stroboscope designed to measure and observe rotating, reciprocating and linear motion in a variety of production, quality control and academic applications. It generates an extremely bright light relative to its compact size. - Page 3 LCD DISPLAY FLASH RATE LOW BATT EXTERNAL TRIGGER ICON BLACK DOT INDICATOR 3000.0 APPEARS IF CURRENT FLASH RATE IS ALREADY STORED IN MEMORY APPEARS IN EXTERNAL TRIGGER MODE WHEN PHASE IS SHIFTED FROM ORIGINAL POSITION LOW BATTERY ICON FLASH DURATION LEVEL F0~F9 (F0 DEFAULT) FLASH DURATION IN POWER SAVE MODE L0~L9 (L0 DEFAULT)
-
Page 4: Changing Units
PREPARATION Changing Units (FPM is the factory default) –SEL– Turn off the strobe (the strobe light goes off and the display stays on for two more minutes). MODE Press and hold , then press the power FPM, FLASHES PER MINUTE IS BEST switch and SEL is displayed. -
Page 5: Memory Recall
MEMORY (FPM and Hz units each have nine separate memory locations) Saving Flash Rates in Memory Turn on the strobe and synchronize the –FUL– flash rate with the moving object. Press and MODE hold , then press , a memory location number appears briefly and the flash rate is saved to that memory location. -
Page 6: Flash Duration
FLASH DURATION Changing Flash Duration (increasing sharpness or brightness) Flash duration default is F0, which is suitable F0-F1 ...F9 for most applications. However, images can be sharpened by decreasing flash duration. 3000.0 After synchronizing the flash rate with the MODE moving object, press and hold the key, then press the ▲... -
Page 7: External Trigger Input
Changing Flash Duration in Power Save Mode When power save mode is enabled, L0, the l0-l1 ...l9 flash duration default, is displayed and is suitable for most applications. However, images can be sharpened by decreasing flash 3000.0 duration. After synchronizing the flash rate with the MODE moving object, press and hold the key,... - Page 8 (Optional External Trigger Kit ET-1) HANDHELD OR TRIPOD MOUNT INDUCTIVE PROXIMITY SENSOR 1 PULSE PER REVOLUTION AC ADAPTER Cascade Application DSL-200 DSL-200 To synchronize two or more stroboscopes, connect one output port to the other strobe's input port (slave unit). page 8...
-
Page 9: Recharging The Battery
Digital Phase Shift (Only w/ external trigger) 3000.0 The input signal’s cycle is 360°. Press the phase – and + keys to view the delayed angle of the input cycle. The range of this adjustment (phase shift) is 0 to 359°. The angle appears on the display when the –... -
Page 10: Specifications
Specifications Range, Resolution 12.0 – 9999.9 fpm/rpm, ±0.1 fpm/rpm 10000 – 150000 fpm/rpm, ±1 fpm/rpm Display flashes over 100000 rpm Brightness 4300 LUX 6,000 FPM, at 8" distance, flash duration F0 Selectable Units: FPM or Hz Accuracy ±0.01%, ±1 LSD Power NiMH rechargeable battery Display... - Page 11 Dimensions (1.29") (2.91") L E D S T R O B O S C O P E E S L - 2 0 0 ADJUST PHASE MODE INPUT PORT 1/4" 20 UNC OUTPUT PORT (1.18") (TRIPOD MOUNT) AC ADAPTER PORT page 11...
-
Page 12: Limited Warranty
After you have obtained the authorization number, please return the subject product to Hoto Instruments with all freight, duty and brokerage costs prepaid. More than 60 years - Worldwide - Hans Schmidt & Co GmbH Mailing address: Phone: e-mail: P.
