Summary of Contents for Dräger GMS

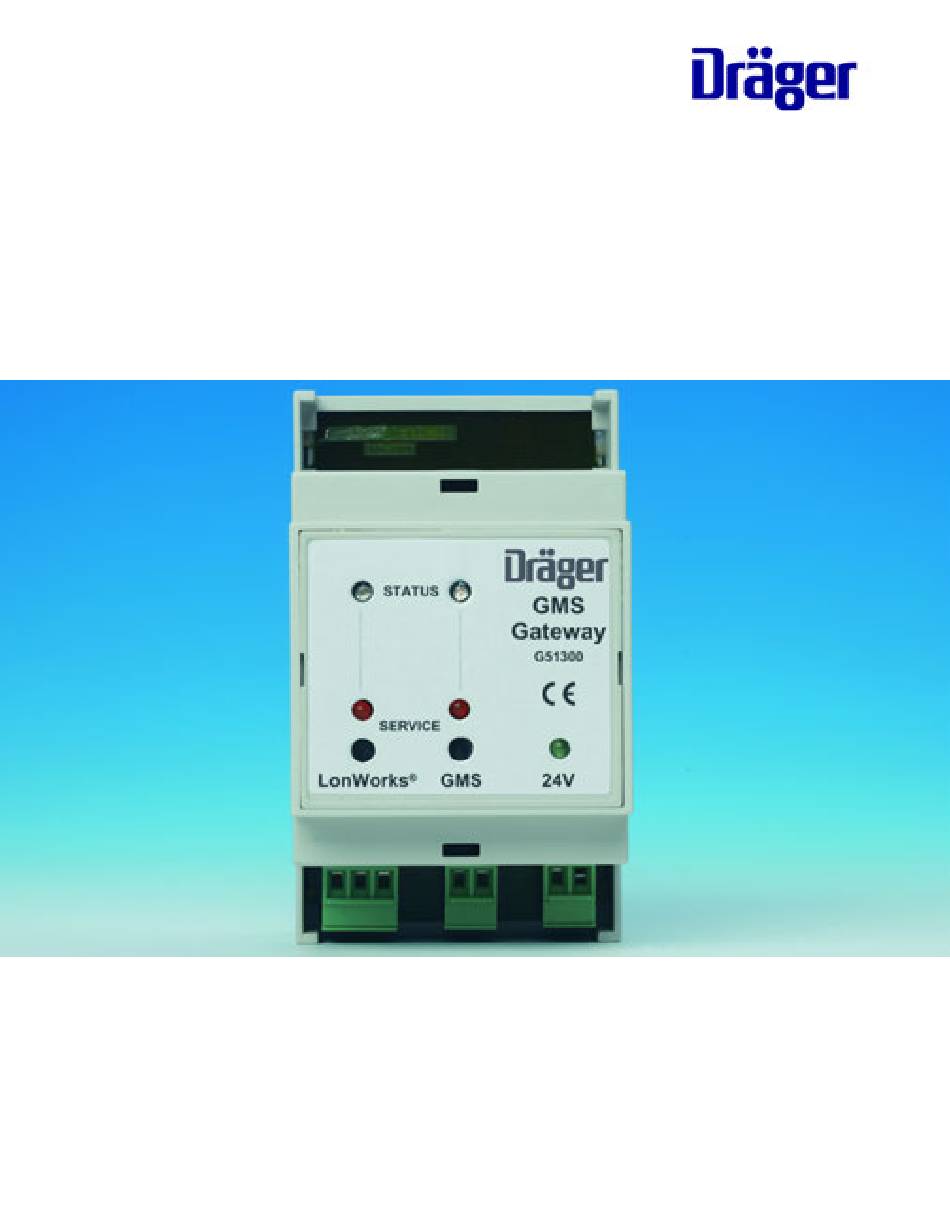

- Page 1 Instructions for Use GMS Gateway Data port WARNING For a full understanding of the performance characteristics of this medical device, the user should carefully read these Instructions for Use before use of the medical device.
- Page 2 NOTE A NOTE provides additional information intended to avoid inconvenience during operation. Abbreviations and Symbols Please refer to the sections "Abbreviations and Symbols" on page 9 for explanations. Instructions for Use GMS Gateway...
-
Page 3: Table Of Contents
States of the Service LEDs....11 Status DUO-LED of GMS side ... . . 12 Status DUO-LED of LonWorks side . - Page 4 This page intentionally left blank. Instructions for Use GMS Gateway...
-
Page 5: For Your Safety And That Of Your Patients
CAUTION functioning of the device. Observe chapter The operator of the medical supply unit is "Maintenance". responsible for the development of an emergency plan in case of device failure (see ISO Standard 7396-1, Appendix F). Instructions for Use GMS Gateway... -
Page 6: Application
Environment of Use The GMS gateway can be used in non-medical The GMS gateway is not intended to be used in areas. patient environment or medical environment. It is not approved to be used in the area control unit. -
Page 7: Overview
Overview Overview LED Status Indicator GMS Gateway STATUS Gateway SERVICE LonWorks 1 Service LED, LonWorks side 2 Service LED, GMS side 3 Status DUO-LED, LonWorks side 4 Status DUO-LED, GMS side 5 24 V LED Instructions for Use GMS Gateway... -
Page 8: Connection Plan Gms Gateway
Overview Connection Plan GMS Gateway STATUS Gateway G51300 SERVICE LonWorks 24V AC/DC LonWorks G 50 750 Instructions for Use GMS Gateway... -
Page 9: Abbreviations And Symbols
Light Emitting Diode Gas Management System Symbols STATUS Gateway SERVICE LonWorks 1 Front label 2 Type plate (lateral, left) 3 Label with Neuron IDs (lateral, right) Layout: Neuron ID xx:xx:xx:xx:xx:xx (GMS side) Neuron ID xx:xx:xx:xx:xx:xx (LonWorks side) Instructions for Use GMS Gateway... -
Page 10: Operation
Operation Operation The GMS gateway has a status indicator with 5 LEDs that indicate the status of the data network. 24 V LED LonWorks 1 24 V LED lights up green: The device is operational. Service LEDs SERVICE 1 Both controller boards have a service LED that is controlled by Echelon firmware. -
Page 11: States Of The Service Leds
On for 0.5 seconds, then permanently Off Non-configured state Flashing with 1/2 Hz Applicationless state On for 1 second, Off for 2 seconds, then permanently On Watchdog Resets (permanent resets) Repeating LED On LED Off Instructions for Use GMS Gateway... -
Page 12: Status Duo-Led Of Gms Side
Status DUO-LED of GMS side – Steady green: Normal operating state. No errors, target state. – Flashing green at 1 Hz: At least one node in the GMS cannot be reached through communications. – Flashing red at 1 Hz: STATUS No communication possible with the LonWorks controller. -
Page 13: Problem Solving
24 V LED does not light up Voltage supply interrupted. Have the voltage supply repaired by green. trained service personnel. Status LED on GMS side Hardware defective. Have the hardware repaired by trained continuously lights up red or service personnel. -
Page 14: Maintenance
System for operational state. Regularly, Alarm Management System Function test and visual check of the Alarm every six month at the Management System by trained service personnel. latest. We recommend obtaining a service agreement with DrägerService. Instructions for Use GMS Gateway... -
Page 15: Disposal
Dräger Medical Organization. of at municipal collection points for waste electrical Disposal of the Medical Device When disposing of the medical device: Consult the relevant waste disposal company for appropriate disposal. Observe the applicable local regulations. Instructions for Use GMS Gateway... -
Page 16: Acceptance And Handover To The Operator
Acceptance and Handover to the Operator Acceptance and Handover to the Operator The GMS gateway is part of the Dräger Alarm Management System. NOTE The medical device may only be put into operation after acceptance by experienced personnel. Observe the national regulations! -
Page 17: Technical Data
500 hPa to 1060 hPa Operating data Operating voltage 24 V (AC/DC) Power consumption 60 mA Data transfer LON Communication rate 78 kBaud FT10 Line length depending on line type Electrical characteristics acc. to Echelon FTT 10A Transceiver specifications Instructions for Use GMS Gateway... -
Page 18: List Of Accessories
List of Accessories List of Accessories Description Order No. Grounded conductor clamp G41784 Power pack 30 Watt/DIN rail G50728 System cable GMS network G50750 Instructions for Use GMS Gateway... - Page 19 This page intentionally left blank. Instructions for Use GMS Gateway...
- Page 20 Directive 93/42/EEC concerning Medical Devices Manufacturer Dräger Medical GmbH Moislinger Allee 53 – 55 D-23542 Lübeck Germany +49 451 8 82- 0 +49 451 8 82- 20 80 http://www.draeger.com 90 52 449 – GA 6918.000 en © Dräger Medical GmbH Edition: 3 –...
