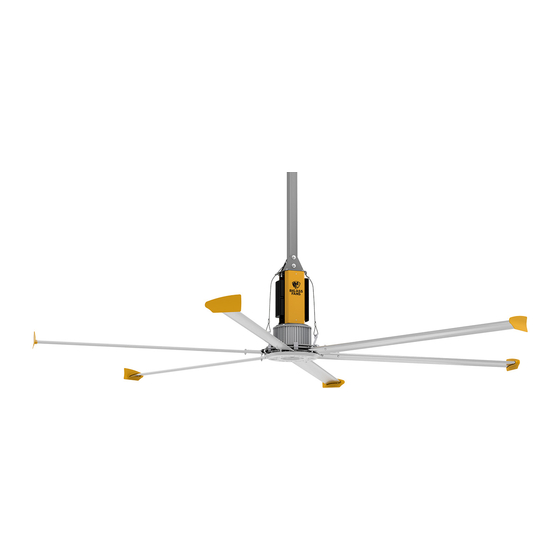

BIG ASS FANS Powerfoil X3.0 Quick Installation Manual

Led light
Hide thumbs Also See for Powerfoil X3.0:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Quick Installation Guide
Powerfoil
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS, OBSERVE THE FOLLOWING:
WARNING: Disconnect power to the installation locations before installing the fan, controller, and LED light.
WARNING: Installation work and electrical wiring must be done by qualified person(s) in accordance with all
applicable codes and standards, including fire-rated construction. Incorrect assembly can cause electric shock or
damage the motor and the controller.
CAUTION: The Big Ass Fans product warranty will not cover equipment damage or failure that is caused by
improper installation or use.
BEFORE YOU START
Before beginning LED light installation:
1.
Install the fan according to the Quick Installation Guide.
2. DISCARD the "LED Light Installation" instructions included in the box with the LED light.
3. Make sure the LED light will be installed on a separate circuit from the fan. The LED light and fan are controlled
separately. Connect the LED light to the lighting grid control, not to the fan control.

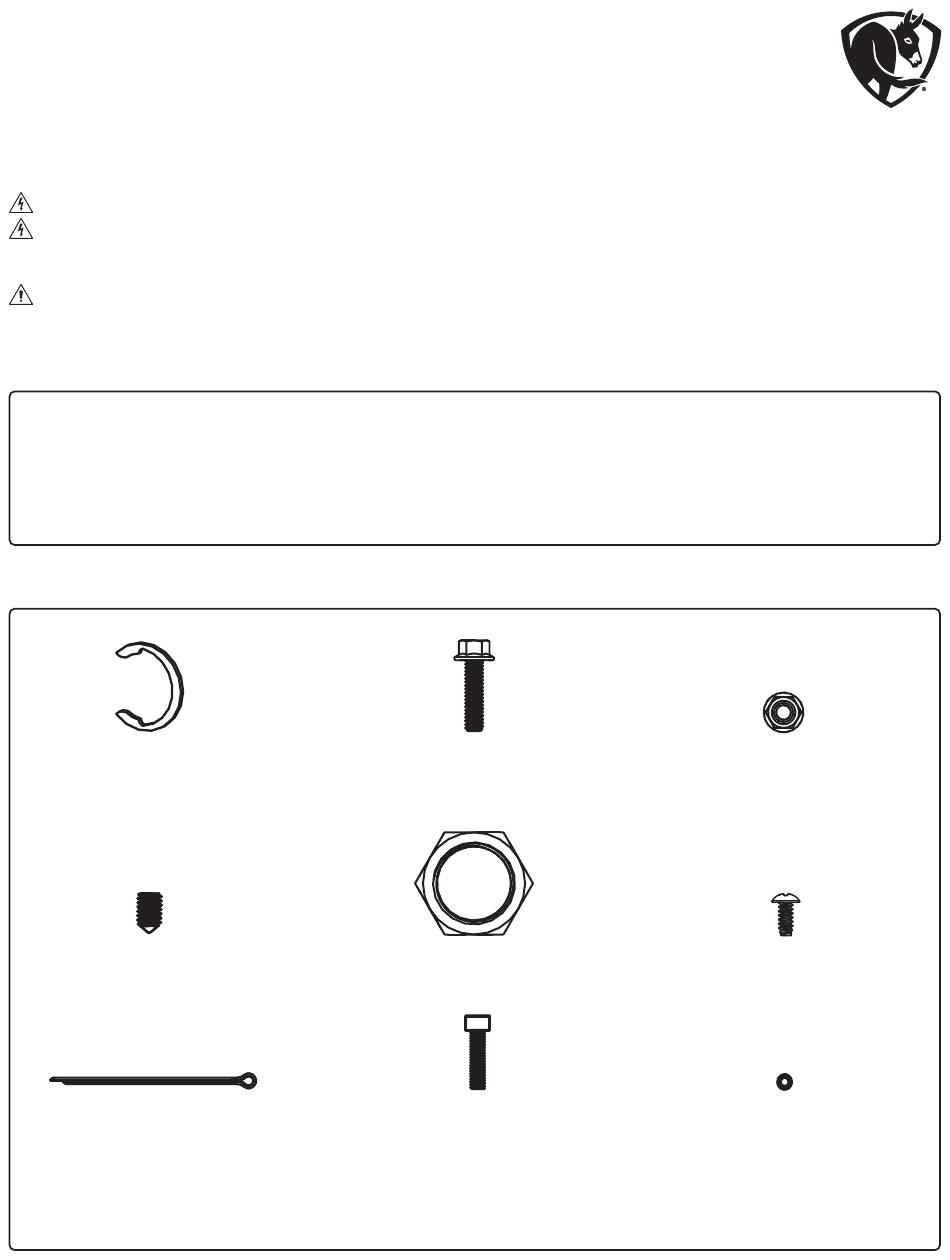

HARDWARE
(2) Static Tube
Retainer Clips*
(1) 10-24 x 3/8"
Set Screw
(2) Ø3/32" x 2-1/2"
Cotter Pins**
*One clip is provided with each static tube. Only one tube and clip are needed.
**Spare hardware included
***Included with fan mounting hardware
****Pre-installed to LED light
X3.0 LED Light
®
(3) 1/4-20 x 1" Flange Hex
Head Cap Screws**
(8) M4 Socket Head
(1) 3/4" Lock Nut
Cap Screws****
(3) 1/4-20 Hex Flange
Nylock Nuts**
(4) 10-16 x 1/2" Pan
Head Screws***
(8) M4 Lock
Washers****

Advertisement

loading

Related Manuals for BIG ASS FANS Powerfoil X3.0

Summary of Contents for BIG ASS FANS Powerfoil X3.0

  • Page 1 Incorrect assembly can cause electric shock or damage the motor and the controller. CAUTION: The Big Ass Fans product warranty will not cover equipment damage or failure that is caused by improper installation or use.
  • Page 2 1. STATIC TUBE Install either the “PFX” or “PFX-R” static tube according to the provided “Static Tube Retrofit” instructions. Refer to the appropriate installation method for your fan’s motor frame type. FANS THAT ALREADY HAVE A REMOVABLE STATIC TUBE If your fan already has a field-installed (removable) static tube, uninstall the static tube, bracket, and clamp. Replace with the provided static tube marked “PFX-R.”...

  • Page 3: Power Supply Wiring

    3. POWER SUPPLY WIRING Refer to the input voltage marked on the LED light. Route power to the power supply and wire the power supply according to the diagram and table below. POWER SUPPLY DIMMING SUPPLY POWER (1–10 V DC) L1 (BLACK IN US/CA;...
  • Page 4 4. STATIC TUBE ADAPTER AND LOCK NUT If your fan already has a factory-installed (non-removable) static tube, screw only the lock nut onto the static tube. For all other installations, screw the static tube adapter onto the static tube, and then install the adapter set screw. Tighten the set screw, and then screw the lock nut onto the static tube adapter.
  • Page 5 6. LED LIGHT PLATE AND BRACKET Remove the eight screws, eight lock washers, round plate, and bracket from the top of the LED light. Set the screws and washers aside in a location where they will not get lost. Screw the plate and bracket onto the static tube or static tube adapter until snug.
  • Page 6 8. LED LIGHT WIRING Route the DC wires from the power supply through the static tube. Depending on the wattage, the power supply will have one cable with two wires or two cables with two wires. The LED light will also have one cable with two wires or two cables with two wires.
  • Page 7 9. PLATE HARDWARE Carefully pull the power supply cable(s) up into the static tube from the top. Tuck the LED light cables and connectors inside the LED light module. Tuck ONLY the LED light cables and connectors inside the LED light module. Do NOT tuck the power supply cables into the light module.
  • Page 8 NOTES © 2020 DELTA T LLC ALL RIGHTS RESERVED. PX3-INST-347-ENG-01 REV A 10/27/2020...
