Operation/Reference Guide
Tango Zone Expanders
DAS-T0804X-SIG
DAS-T0808X-SIG
T a n g o D i s t r i b u t e d A u d i o
I n i t i a l R e l e a s e : 7 / 0 2 / 2 0 0 8

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DAS-T0804X-SIG and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for AMX DAS-T0804X-SIG

Summary of Contents for AMX DAS-T0804X-SIG

  • Page 1 Operation/Reference Guide Tango Zone Expanders DAS-T0804X-SIG DAS-T0808X-SIG T a n g o D i s t r i b u t e d A u d i o I n i t i a l R e l e a s e : 7 / 0 2 / 2 0 0 8...
  • Page 2 AMX is not responsible for products returned without a valid RMA number. AMX is not liable for any damages caused by its products or for the failure of its products to perform. This includes any lost profits, lost savings, incidental damages, or consequential damages.

  • Page 3: Important Safety Instructions

    Warning – To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not expose this equipment to dripping or splashing and ensure that no objects filled with liquids are placed on the equipment. Tango Zone Expanders IMPORTANT SAFETY INSTRUCTIONS...
  • Page 4 IMPORTANT SAFETY INSTRUCTIONS Tango Zone Expanders...

  • Page 5: Table Of Contents

    Table of Contents IMPORTANT SAFETY INSTRUCTIONS ... a Tango Zone Expanders ...1 Overview ... 1 Product Specifications ... 1 Installation ...3 Rack Mounting... 3 Ventilation ... 3 Wiring and Connections... 3 Speaker Wire Technology (SWT) ... 3 Front and Rear Panel Components ... 4 Cabling Instructions ...
  • Page 6 Table of Contents Tango Zone Expanders...

  • Page 7: Tango Zone Expanders

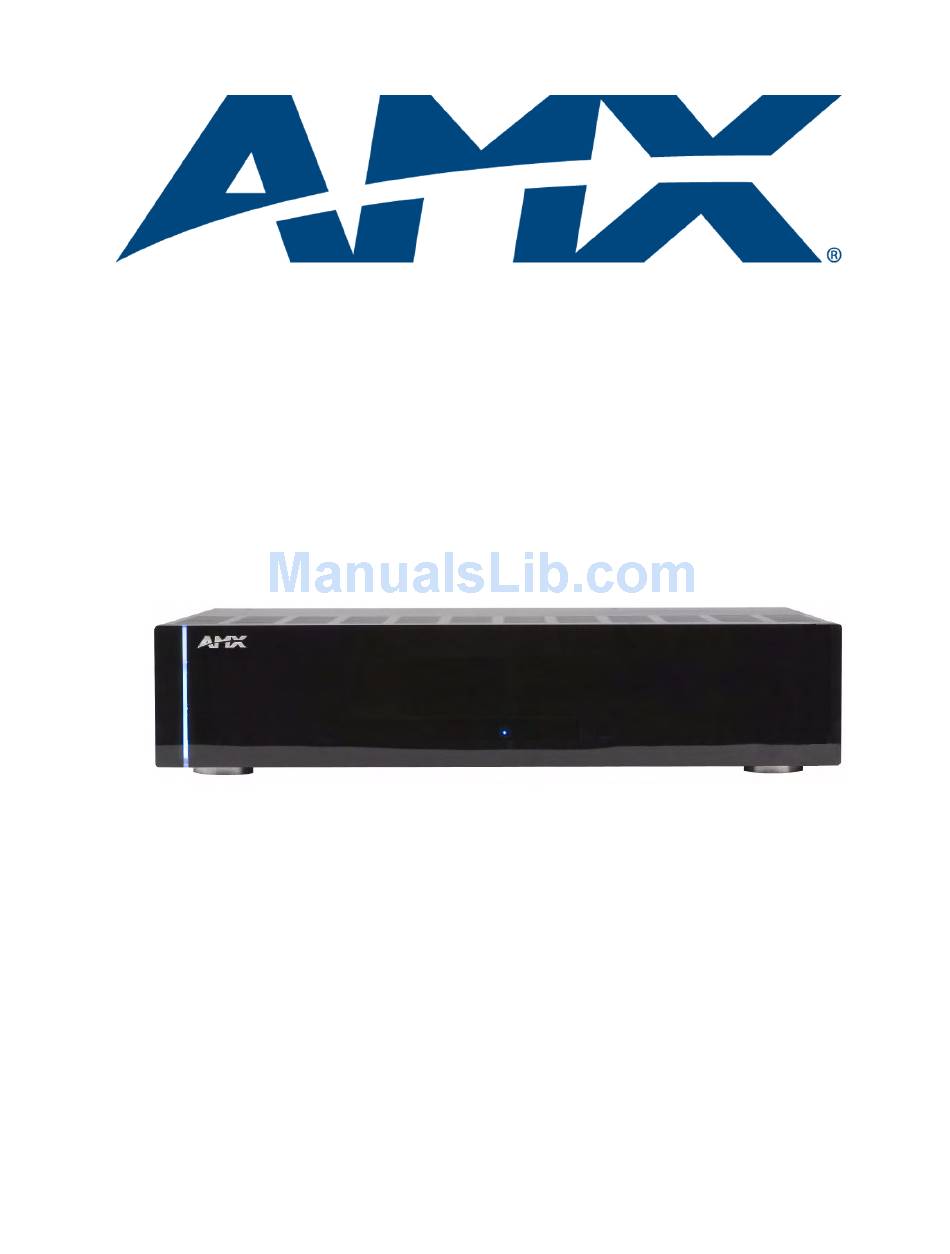

    Tango Zone Expanders Overview Tango Zone Expanders (FIG. 1) are used to expand the number of zones in the system beyond the 4 or 8 that are available using the Tango Audio Controllers. Each Zone Expander has the capability of offering 4 or 8 zones per Expander.
  • Page 8 Tango Zone Expanders Tango Zone Expanders Product Specifications (Cont.) • Zone Outputs Audio Inputs Audio Outputs Available Colors: Dimensions (HWD): Shipping Weight: Connections for up to 8 zone outputs that connect to the keypads Stereo Inputs, 47K impedance, buffered. Stereo Looping Outputs, buffered.

  • Page 9: Installation

    This remarkable technology removes the need for control wire since the control and audio signals are shared on the same wire. The reliability and simplicity of this system has been proven for years. AMX Matrix Audio is the only company that offers a “retrofit solution”, one which allows the replacement of volume controls with AMX Matrix Audio keypads and Controllers, giving full control over the sources.

  • Page 10: Front And Rear Panel Components

    The Tango Amplifier is cabled using standard 4-conductor speaker cable originating at the Tango Controller, passing through the Keypad, and terminating at the speaker location. AMX recommends using a bundled 4- conductor 16-gauge stranded copper wire in a single continuous run.

  • Page 11: Connecting Sources (Audio Inputs/Outputs)

    Connecting Sources (Audio Inputs/Outputs) Up to 8 audio devices can be connected to the Tango Zone Expanders via the Sources INPUT and OUTPUT RCA connectors on the rear panel (see FIG. 1 on page 1). Industry standard RCA connectors provide line-level input and output connections for devices such as CD, DSS, MP3 players etc.

  • Page 12: Connecting Paging Inputs/Outputs

    Tango Zone Expanders: From Audio Device (L/R) To Zones 1-4 To Zones 9-10 To Zones 13-14 FIG. 5 Connecting the Tango Controller to Zone Expanders Paging Paging In Paging To "Paging In" connector on Paging In Tango Zone Expander #2...
  • Page 13 Set the Address switch on the rear panel of the Zone Expander to "1" if the Zone Expander services zones 9 – 16, set to "2" for zones 17 – 24 and so on until all seven Zone Expanders are utilized (see FIG. 5).
  • Page 14 Installation Tango Zone Expanders...

  • Page 15: Zone Expander Addressing

    Zone Expander Addressing Overview Use the Address switch on the rear panel of the Tango Zone Expanders (FIG. 1) to set the Address for each Expander, according to the values in the following tables: Address 1 FIG. 1 Address switch...
  • Page 16 It’s Your World - Take Control™ 3000 RESEARCH DRIVE, RICHARDSON, TX 75082 USA • 800.222.0193 • 469.624.8000 • 469-624-7153 fax • 800.932.6993 technical support • www.amx.com...
