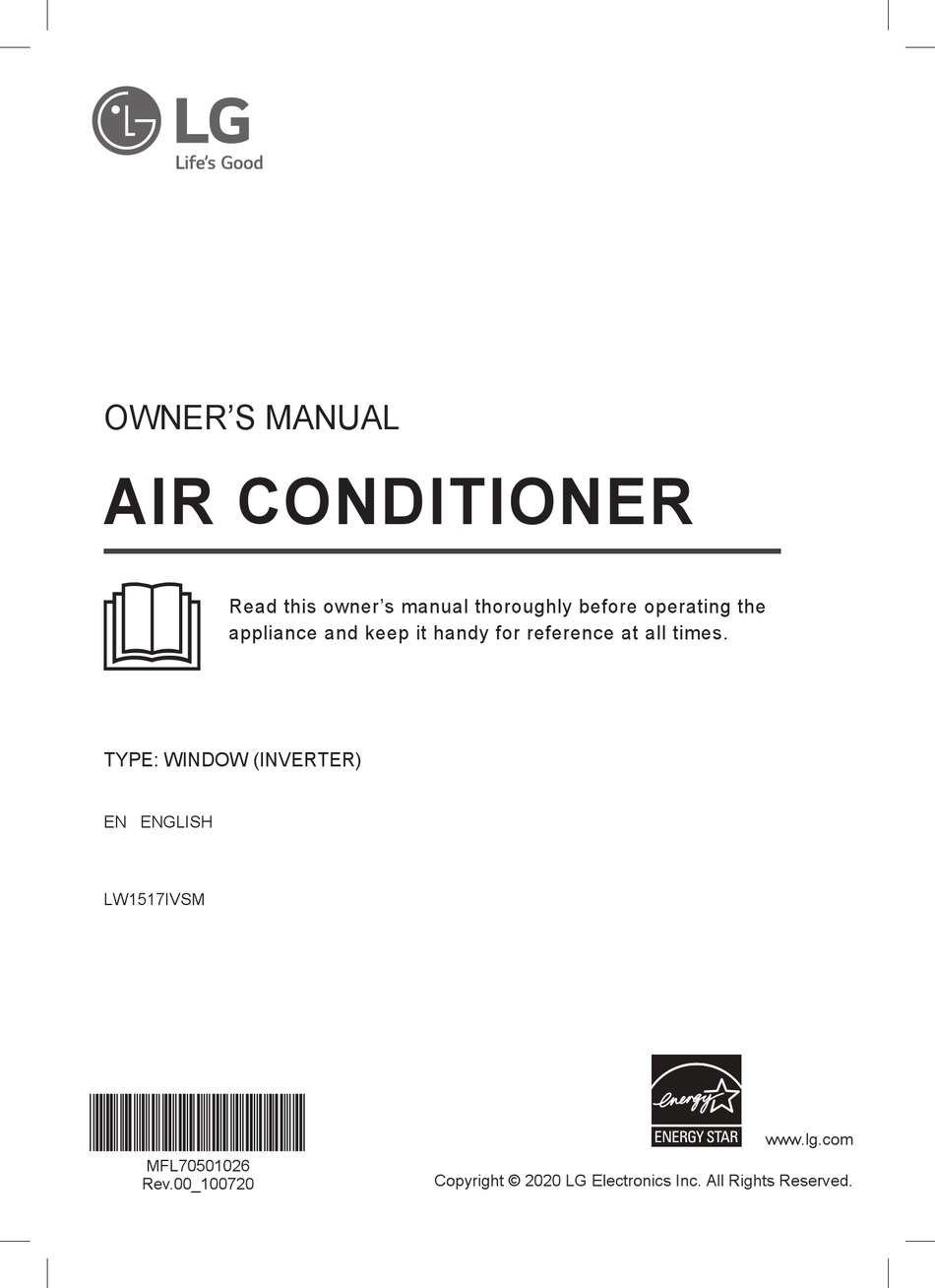

- Page 1 OWNER’S MANUAL AIR CONDITIONER Read this owner’s manual thoroughly before operating the appliance and keep it handy for reference at all times. TYPE: WINDOW (INVERTER) EN ENGLISH LW1517IVSM *MFL70501026* www.lg.com MFL70501026 Copyright © 2020 LG Electronics Inc. All Rights Reserved. Rev.00_100720...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS 3 SAFETY INSTRUCTIONS 19 SMART FUNCTIONS IMPORTANT SAFETY INSTRUCTIONS LG ThinQ Application 8 PRODUCT OVERVIEW 22 MAINTENANCE Exterior Parts Air Filter Interior Parts 23 TROUBLESHOOTING 9 INSTALLATION Before Calling for Service Electrical Data Normal Sounds You May Hear... -
Page 3: Safety Instructions
SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and follow all safety messages. This is the safety alert symbol. - Page 4 ● If you detect a strange sound, a chemical or burning smell, or smoke coming from the appliance, unplug it immediately, and contact an LG Electronics Customer Information Center. ● Never unplug the appliance by pulling on the power cord. Always grip the plug firmly and pull straight out from the outlet.
- Page 5 ● If water enters the product, turn off the power at the main circuit, then unplug the product and call for service. ● If the product has been submerged, contact an LG Electronics Customer Information Center for instructions before resuming use.
- Page 6 SAFETY INSTRUCTIONS CAUTION To reduce the risk of minor or moderate injury to persons, malfunction, or damage to the product or property when using this product, follow basic precautions, including the following: INSTALLATION ● Take care when installing the product that exhaust or condensation does not damage nearby property.
- Page 7 7 EN SAFETY INSTRUCTIONS REFRIGERANT (FOR R32 ONLY) WARNING ● Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer. ● The appliance shall be stored in a room without continuously operating ignition sources (for example: open flames, an operating gas appliance or an operating electric heater).
-
Page 8: Product Overview
PRODUCT OVERVIEW PRODUCT OVERVIEW Exterior Parts Interior Parts Control Panel Evaporator Remote Control Air Guide Air Filter Control Box Vertical Air Deflector (Horizontal Louver) Brace Horizontal Air Deflector (Vertical Louver) Compressor Front Grille Condenser Air Outlet Base Pan Cabinet Power Cord Air Outlet... -
Page 9: Installation
INSTALLATION INSTALLATION WARNING Electrical Data ● This appliance should be installed in Power cord may include a current interrupter accordance with the National Electrical device. TEST and RESET buttons are provided Code. on the plug case. The device should be tested on ●... -
Page 10: Parts Included
INSTALLATION Parts Included (Appearance May Vary) Heatproof foam (2) (Adhesive backed) Foam-PE (2) (Adhesive backed) Foam strip Right curtain panel Frame guide (2) Window locking bracket Left curtain panel Sill support (2) Type 'A' Screws Type 'B' Screws Type 'C' Screws Bolts (14) Lock Nuts... -
Page 11: How To Install The Unit
11 EN INSTALLATION How to Install the Unit NOTE To prevent vibration and noise, make sure the unit is installed securely and firmly. ● All supporting parts should be secured to firm Install the unit out of direct sunlight. wood, masonry, vinyl, fiberglass, or metal. There should be no obstacles, such as a ●... -
Page 12: Preparation Of Cabinet
INSTALLATION Insert the hooks on the lower panel guides Preparation of Cabinet into the slots on the bottom of the cabinet. Make sure that the flanges on the lower Remove 4 screws which fasten the cabinet panel guides will face toward the inside of at both sides and at the back. -
Page 13: Cabinet Installation
13 EN INSTALLATION Cabinet Installation Loosely assemble each sill support. Inside Sill Sill Support Center Line Bolt Outside Sill NOTE ● If the distance to the outer window sill is not that deep, you may not need the bolt and nut. Open the window. -
Page 14: Unit Installation
INSTALLATION Mount the cabinet to the window sill using CAUTION 3 type B screws in the holes on the front angle. ● The unit is heavy. Use an assistant to help lift the unit and set it in place. Lifting and maneuvering the unit by yourself could result in injury. - Page 15 15 EN INSTALLATION After the air conditioner is installed, Before installing the front grille, fold out the measure the curtain panel on each side vent control lever located to the left and cut the adhesive-backed heatproof of the control panel, as shown below. foam to fit each panel.
-
Page 16: Operation
OPERATION OPERATION Control Panel and Remote Control Remote Control Auto Clean(3 s) Light Off(3 s) NOTE ● The feature may be changed according to the type of model. Power Energy Saver - In this mode the compressor and fan turn off when the set Press to turn the air conditioner ON or OFF. -
Page 17: Using The Light Off Function
17 EN OPERATION Using the Light Off Function Clean Filter The Clean Filter LED lights up to notify you that the filter needs to be cleaned. After You can set the brightness of the control panel, cleaning the filter, press Temp ●... -
Page 18: Wireless Remote Control
OPERATION Wireless Remote Control Air Direction Airflow can be adjusted by changing the direction Inserting Batteries of the air conditioner’s louvers. If the display screen of the remote control begins Adjusting Horizontal Airflow to fade, replace the batteries. Insert AAA (1.5 V) batteries before using the remote control. -
Page 19: Smart Functions
Smart Diagnosis manual. If you experience a problem while using the • LG ThinQ is not responsible for any network appliance,this smart diagnosis feature will help connection problems or any faults, you diagnose the problem. - Page 20 LG Electronics will also provide open source code ● Launch the LG ThinQ application and select the to you on CD-ROM for a charge covering the cost Smart Diagnosis feature in the menu. Follow...
- Page 21 21 EN SMART FUNCTIONS Industry Canada Statement Wireless LAN Module Specifications This device contains licence-exempt transmitter(s) Model LCW-010 /receiver(s) that comply with Innovation, Science and Economic Development Canada's Frequency 2412 to 2462 MHz licence-exemmpt RSS(s). Operation is subject to Range the following two conditions: Output 1) This device may not cause interference.
-
Page 22: Maintenance
● For repair and maintenance, contact an Authorized Service Center. See the warranty page for details or call 1-888-LG-CANADA (542 2623). Have your model number and serial number available. They should be written on page 28... -
Page 23: Troubleshooting
TROUBLESHOOTING TROUBLESHOOTING Before Calling for Service The appliance is equipped with an automatic error-monitoring system to detect and diagnose problems at an early stage. If the appliance does not function properly or does not function at all, check the following before you call for service. Normal Sounds You May Hear High Pitched Chatter Today's high efficiency compressors may have a high pitched chatter during the cooling cycle. - Page 24 TROUBLESHOOTING Problem Possible Cause Solutions Make sure the air conditioner plug The air conditioner is unplugged. is pushed completely into the outlet. Check the house fuse/circuit The fuse is blown/circuit breaker breaker box and replace the fuse or is tripped. reset the breaker.
- Page 25 The router must be set to 2.4 GHz. NOTE ● You can refer to the Energy Star program in detail at www.energystar.gov. ● If you see "CH" in the display, please call 1-888-LG-CANADA(542 2623).
- Page 26 TROUBLESHOOTING Wi-Fi Problem Possible Cause Solutions Delete your home Wi-Fi network The password for the Wi-Fi and begin the registration process network was entered incorrectly. again. Turn off the Mobile data on your Mobile data for your smartphone smartphone before registering the is turned on.
-
Page 27: Warranty
Please retain dated receipt or delivery ticket as evidence of the Date of Purchase for proof of warranty (you may be required to submit a copy to LG or authorized representative). If the Date of Purchase cannot be verified, the warranty period will begin 15 months from the date of manufacture. - Page 28 WHETHER BASED ON BREACH OF WARRANTY, BREACH OF CONTRACT, TORT OR OTHERWISE, EVEN IF LG HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. IN NO EVENT SHALL LG’S LIABILITY EXCEED THE ACTUAL PURCHASE PRICE OF THE PRODUCT WITH RESPECT TO WHICH ANY CLAIM IS MADE.
- Page 29 If you and LG are unable to resolve the dispute within 30 days of LG’s receipt of the Notice of Dispute, the dispute shall be resolved by binding arbitration in accordance with the procedure set out herein.
- Page 30 Limited Warranty. Opt Out. You may opt out of this dispute resolution procedure. If you opt out, neither you nor LG can require the other to participate in an arbitration proceeding. To opt out, you must send notice to LG no later than 30 calendar days from the date of the first consumer purchaser’s purchase of the product by either (i) sending an e-mail to...
- Page 31 LG Customer Information Center 1-888-LG-CANADA (542 2623) Register your product Online! LG ELECTRONICS CANADA INC. 20 Norelco Drive www.lg.com North York, ON M9L 2X6...
