AMX AXD-CV6 Specifications

6" color video touch panel

Hide thumbs Also See for AXD-CV6:

Download this manual See also: Instruction Manual

6" color video touch panel

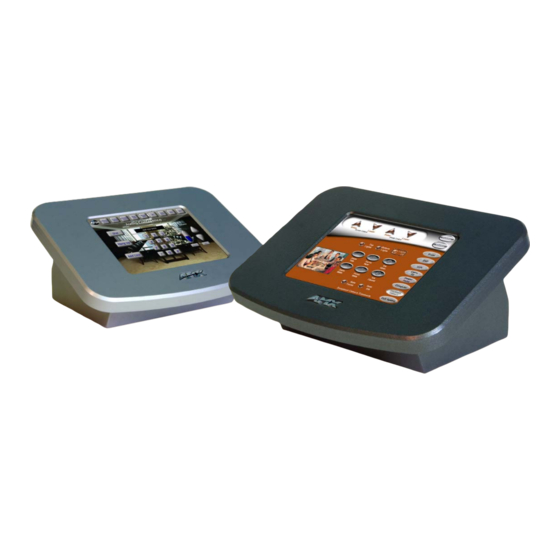

The 6" Table Top is a pioneering effort by AMX to create yet another ideal

control and automation feature. With so many end users drawn to the over-

all functionality and design of the 6" panel, creating a Table Top Kit for

added convenience was the next step.

PRIME POSITIONING

Today's technology savvy residential and commercial customers usually

request a video application as part of their touch panel control options –

the ability to monitor security cameras, baby-cams and more. The 6" panel

can be positioned on a coffee table or desk for ongoing control and

automation at all times.

CUSTOM FIT

The Table Top accessory kit remains small in size so that the 6" Touch Panel

delivers the ultimate in convenience and practicality. The metal enclosure is

available in Dark Gray (with a stone finish) or Platinum.

Page 1 6" color video touch panel The 6" Table Top is a pioneering effort by AMX to create yet another ideal control and automation feature. With so many end users drawn to the over- all functionality and design of the 6" panel, creating a Table Top Kit for added convenience was the next step.
Page 2 • Drywall clip set (2-drywall clamps and 2-#8 (2' long) screws) INSTALLATION CUTOUT • Cutout template for the AXD-CV6 is available as an insert in the product packaging and from AMX as a drawing This profile provides 1:1 cutout dimensions for the CV6 conduit/wallbox OPTIONAL ACCESSORIES •...
Page 3 • All cable connectors are routed out from the enclosure via a hole located on the rear of the unit • Internal connections are made to the AXD-CV6 rear connectors via an AC-CV6T tabletop cable. • AXD unit AXlink: 4-pin bus connector for connection to the AMX Central Controller •...
