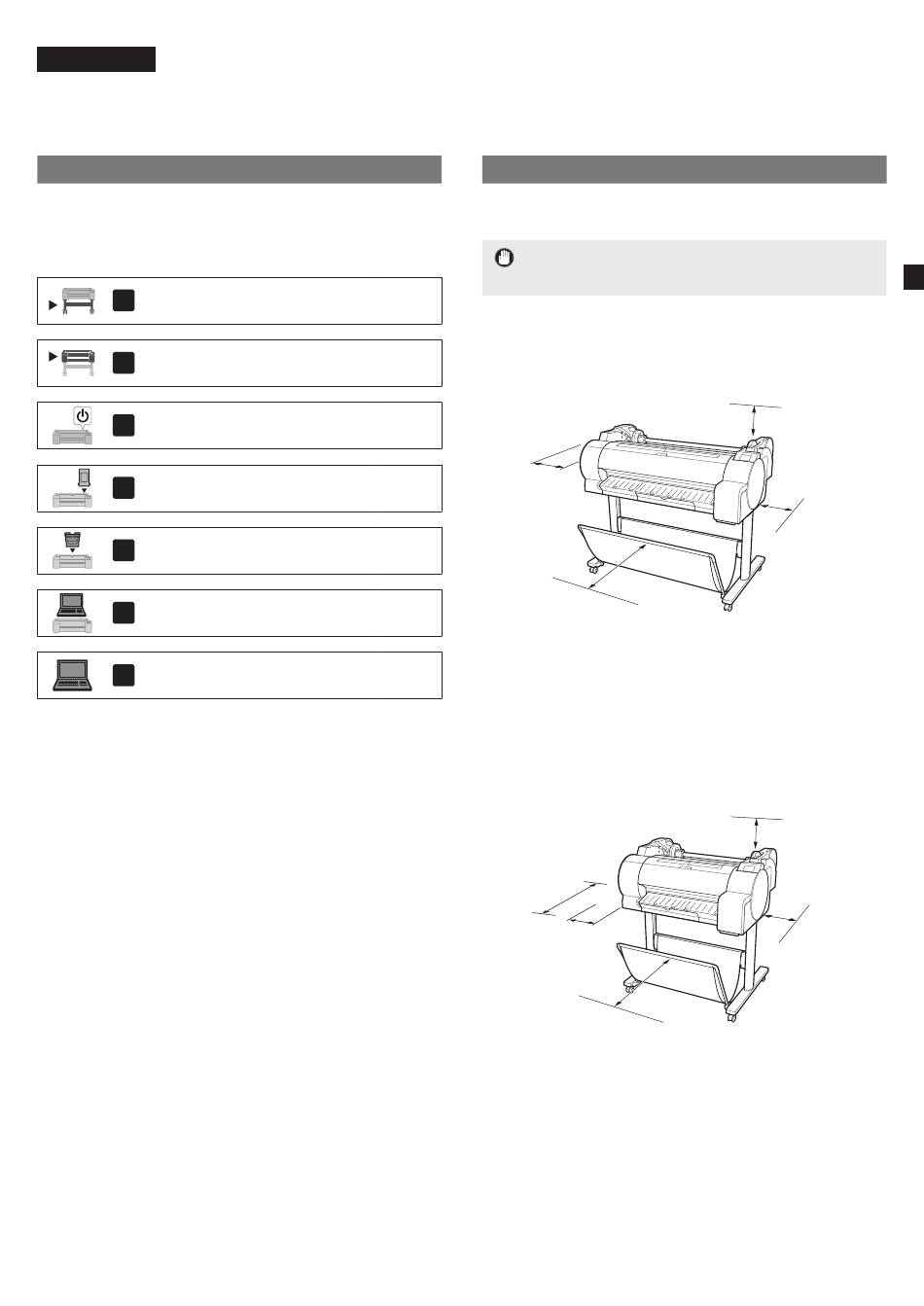

The illustrations in this manual using the TA-30 as an example for explanation. Note that your printer may look different from these illustrations
ENGLISH
in some cases.
The specifications and appearance of this product are subject to change without notice.
Overview of Setup
Set up the printer using the following procedure. Note that if an error
message appears during setup or other problems occur, refer to "Responding
to Messages" on p.11.
1
Assembling the Printer Stand
2
Installing the Printer
3
Turning On the Printer
4
Installing the Ink Tanks
5
Installing the Print Head
Selecting the Method of Connecting
6
to Your Computer
Installing the Software on Your
7
Computer
Loading Paper
For Best Print Quality
Printing From a Smartphone or Tablet
Displaying the Online Manual
Responding to Messages
Windows is a trademark or registered trademark of Microsoft Corporation in the U.S. and/or other countries.
Confirming the Installation Space
When installing the printer, it is recommended that you secure the following
space around the printer.
Important
●
The printer stand may not be included with the model you purchased.
3
Page
■
TA-30
Required space* (W x D x H)
3
66.5 x 57.9 x 53.6 inches
Page
1689 x 1470 x 1359 mm
5
Page
7.9 inches
6
(200 mm)
Page
7
Page
23.6 inches
9
(600 mm)*
Page
* When using the SD-33 printer stand
10
■
Page
TA-20
Required space*** (W x D x H)
54.5 x 53.1 x 29.1 inches
1382 x 1348 x 738 mm
11
Page
Required space** (W x D x H)
11
Page
54.5 x 57.9 x 53.6 inches
1382 x 1470 x 1359 mm
11
Page
11
Page
11
Page
23.6 inches
(600 mm)***
7.9 inches
(200 mm)
** When using the SD-24 printer stand
*** When not using the printer stand
1
23.6 inches
(600 mm)**
11.8 inches
(300 mm)
7.9 inches
(200 mm)
11.8 inches
(300 mm)
7.9 inches
(200 mm)
