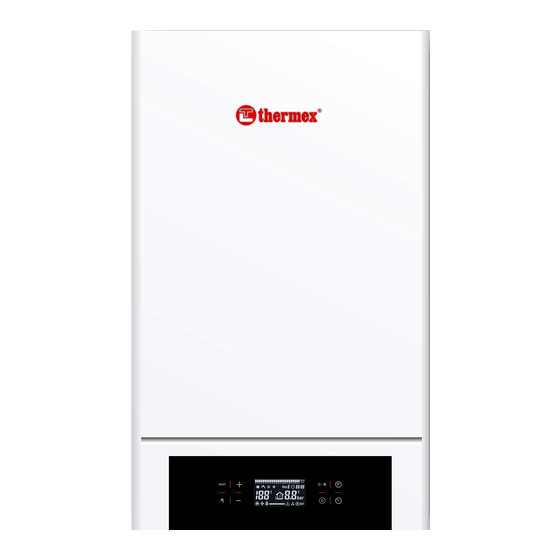

Electric wall hung boiler

Advertisement

Quick Links

EUROSTAR
Electric wall hung boiler
Instructions for use installation and maintenance

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EUROSTAR and is the answer not in the manual?

Questions and answers

Summary of Contents for THERMEx EUROSTAR

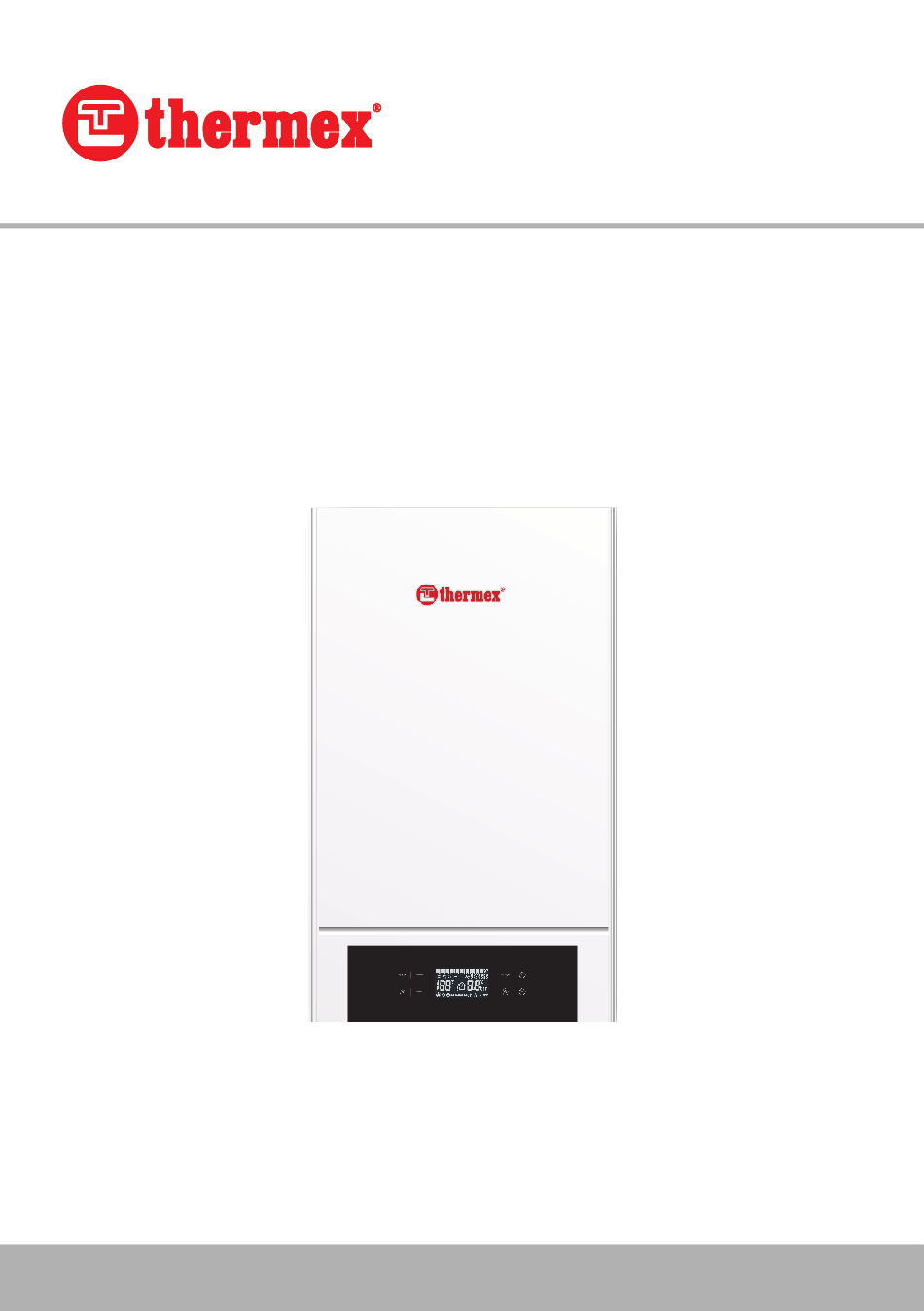

  • Page 1 EUROSTAR Electric wall hung boiler Instructions for use installation and maintenance...
  • Page 3 Dear user: You have become the owner of the direct heated Thermex electric boiler, which is intended for heating system and easy to comfortably control . We hope this Thermex boiler can provide you with reliable service. Some basic principles must be adhered to during installation and maintenance. Therefore, we ask you to be familiar with the user manual and follow this manual when working with Thermex electric boiler.
  • Page 4: Table Of Contents

    Thermex electric boiler 1.Instructions..................1 1.1Introduction................1 1.2Equipment and personal safety..........1 1.3The control panel..............2 1.4Key operation................3 1.5Fault and recovery..............4 1.6Function..................5 1.7System of water injection............5 2.Installation..................6 2.1Running conditions and installation location......6 2.2Boiler installation ...............7 2.3Pipe connection................8 2.4Electrical installation..............9 3.Service and maintenance..............10 3.1Adjustment ................10 3.2Maintenance................1...
  • Page 5: Instructions

    1.Instructions 1.1introduction According to the development trend of the electric heating boiler, the company has put the heating boiler with direct heating characteristics into the market, and it has several series of 6, 8,9,12,15,18,21 and 24kW. This is a kind of high efficiency of the boiler, it equipped with heating system is equipped with independent each other, through a simple control panel can be quickly and easily make the operation of the boiler adapted to the conditions of the given object.
  • Page 6: The Control Panel

    1.3The control panel Display 1.Liquid crystal display Eight touch button and one LCD figure 1 19 18 17 16 15 14 13 Descrip tion Temperature, failure and menu display. Setting the target temperature of the heating, the temperature value of the heating is blinking, and set the target temperature of the hot water, the temperature value of the hot water is blinking.
  • Page 7: Key Operation

    2. The backlight Turn off boiler ,if no button operation the backlight delay 10S shut down. Turn on boiler, backlight is lit . If there is no button operation for 10 minutes, the backlight will be automatically extinguished. Press any key to restore light. figure 2 1.4 key operation 1.4.1 Turn ON/OFF...
  • Page 8: Fault And Recovery

    1.4.7.3tS parameter when screen display “tS”, press” “key, then press “+” and “-” can switch between “P01 to P11", choose one press “ “ come into this item setting state, then press “+” and “-” to change the value. Press “ “...
  • Page 9: Function

    1.6 Function ATemperature setting & control 1.Heating temperature setting range:30-80℃. Start the temperature difference:5-10℃ 2.Water tank temperature setting range:30-60℃. Start the temperature difference:5-20℃ *annotation: Tw---Actual temperature; Ts---setting temperature; △T--- Start the temperature difference B:Anti-freezing function one level anti-freezing:when system temperature<=8℃,pump running, until system temperature>=10℃...
  • Page 10: Installation

    2. Installation 2.1running conditions and installation location. Connect the electric heating boiler to the utility grid must be approval by the local power supply company. Any person concerned must request temporary approval for access to high electrical power and apply for direct heating of the room. If a new heating or remodeling heating is established, we suggest that the professional staff...
  • Page 11: Boiler Installation

    Electric boiler design in the STN330300 and ordinary A5 / AB5 STN332310 environment (namely the temperature range from + 5 ℃ to 40 ℃, humidity depends on temperature, maximum 85%). The boiler shall not be installed in the 0, 1 and 2 areas of STN332135-1, nor shall it be installed in any room, bathroom, washing area or shower room with a bathtub.
  • Page 12: Pipe Connection

    2.3. Pipe connection. A· pipe installation: Before installation, carefully clean the residues and dirt in all the pipes to avoid affecting the normal operation of the boiler. According to the the graphic of 4.1 section and the corresponding symbols on the bottom plate to connect pipe.
  • Page 13: Electrical Installation

    2.4 electrical installation Connect the power cord Before installation, the user shall establish a power supply device, which shall be equipped with the main power switch of heating, protection equipment and other modifications to the home wiring, including initial modification and application for electricity charges. The casing used for wire connection, voltage regulator input and HDO, and possible cascade interconnection (with small package parts attached) is located in the lower left corner of the bracket (see above).
  • Page 14: Service And Maintenance

    3. Service and maintenance. 3.1 Adjustment Adjustment can only be done by qualified personnel. All maintenance and maintenance of the system and safety components shall be subject to debugging. Before boiler start Open the stop valve between all boiler and system. Water injection into the system to ensure that all air in the boiler and system is discharged from the automatic exhaust valve of the boiler and heating system.
  • Page 15: Maintenance

    3.2maintenance The installed electric heating boiler does not require any maintenance. However, it is suggested that the user conduct the network inspection, and it is best to carry out an annual inspection by the after-sales service company (not part of the warranty) before the heating season begins.
  • Page 16: Failure Recovery

    The reasons for the failure of the part of the fault table listed below and the methods that users can solve themselves. If the fault is solved for the two time, you can not exclude it. Please contact the Thermex service staff.
  • Page 17: Technical Features And Parameters

    4.Technical features and parameters. 4.1. Dimensions and joints. legend 1. Heating system inlet G3/4. 2. Water inlet G1/2. 3. The heating system will return to G3/4. figure 8...
  • Page 18: Structure Drawing And Main Parts

    4.2. Structure drawing and main parts 6~8KW 9~15KW legend 1.temperature limiter 2.heating water supply pipe 3.Ac contactor 4.connecting terminal 5.filling valve 6.by-pass pipe 7.water outlet valve 8.heating outlet 9.fill water inlet 10.heating return 11.Automatic exhaust valve 12.CH NTC 13.the heating tank 14.heating tube 15.expansion tank 16.the pipe to expansion tank...
  • Page 19: The Water System

    4.3 the water system 1.CH NTC 2.expansion tank 3.by-pass 4.heating outlet 5.water tap 6.heating return 7.filling valve figure 10 8.pump 9.safety valve 10.water pressure switch 11.the heating tank 12.heating temperature limiter...
  • Page 20: Circulating Pump Diagram

    Pump flow - lift graph pump performance curve boiler head loss figure 11...
  • Page 21: Technical Data

    4.5 technical data voltage electric current 6、8、9 Rated power efficiency the Max Temp of heating Pump Max pressure head expansion tank expansion tank the pressure of heating, Max the pressure of heating, recommend Electrical protection grade heating pipe connector filling water valve connector Recommended cross sectional area of circuit breaker and wire The cross section Through the...
  • Page 22: Wiring Diagram

    4.6 Wiring diagram figure 12...
  • Page 23: Power Cord Connection Mode

    4.7 Power cord connection mode figure 13 2. Single-phase power 1.Three phase power 1.Three phase power connection connection connection Current transformer Current transformer Current transformer figure 15 figure 14 12、15、18、21、24kW 6、8、9kW power connection power conncetion...
  • Page 24 Thermex Heating Technology(jiangmen)CO.,LTD Add:No.51 JianSheDongLu,TaoYuan Town,HeShan,Guangdong Zip code:529725 net: www.thermex.cn...
