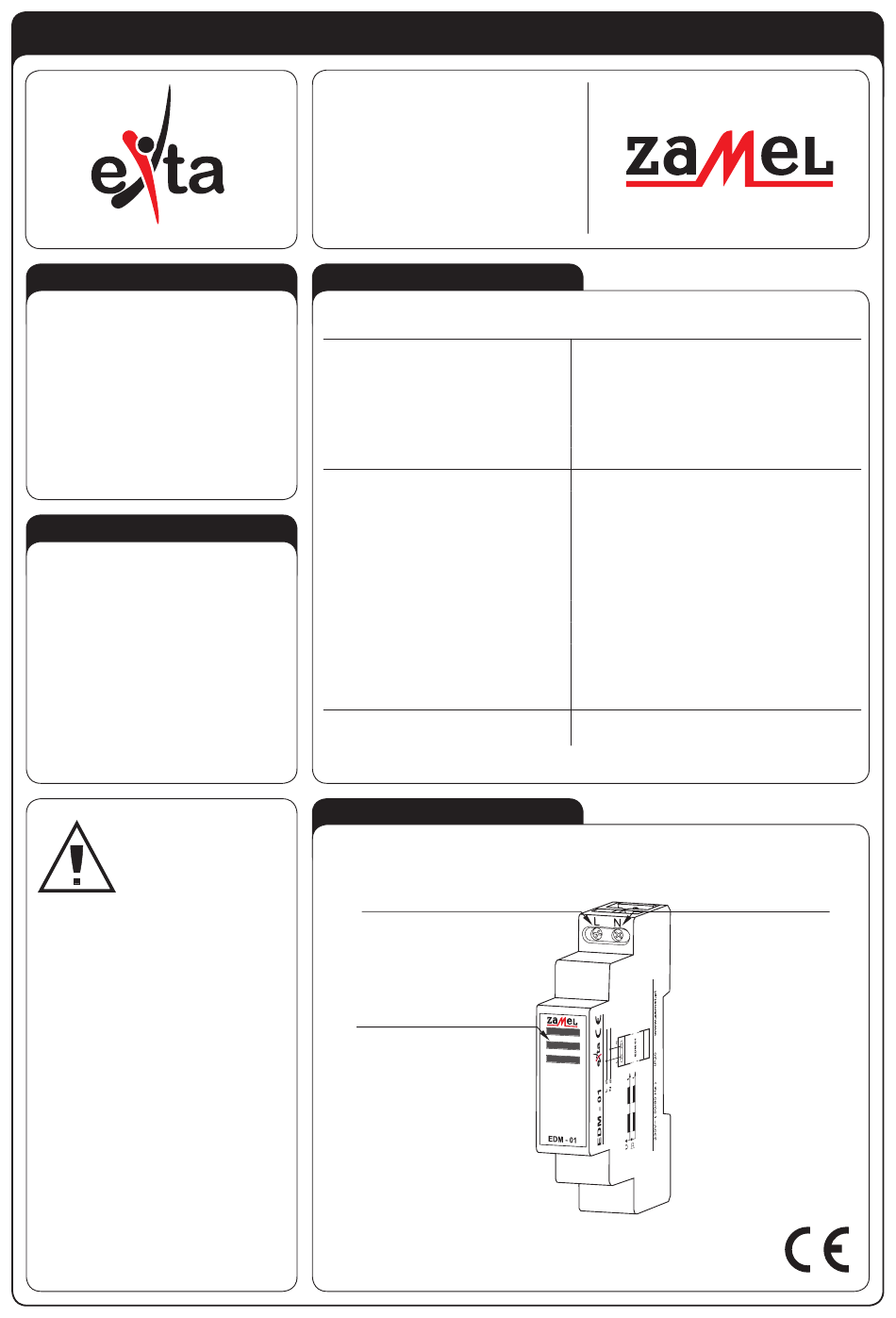

Zamel EXTA EDM-01 Instruction Manual

EDM - 01 SIGNALLING MODULE
DESCRIPTION
The EDM-01 signalling module may
be used in various systems, where
acoustic alarm is needed, e.g. as an
alarm signalling device. The module
is very flexible and applicable in
many circuits owing to the fact that
it is supplied directly from 230 V AC
network.
FEATURES
‫ ی‬Applicable in signalling systems,
‫ ی‬Continuous duty acoustic module,
‫ ی‬Supplied directly from 230 V AC
network,
‫ ی‬High sound level,
‫ ی‬Single-module casing,
‫ ی‬Mounted on TH 35 rail.
The device should be
connected to a single-
phase system accordin-
gly to current standards.
The device connections
CAUTION
will be described in this
manual. Only qualified electricians are
allowed to mount, connect and adjust
the bell. It is necessary to read this ma-
nual before the device mounting. Do not
disassembly the timer casing or you will
lose any warranty rights and expose
yourself to the electric shock hazard.
Before mounting operation make sure
of disconnecting the connection wires
from the electric network. Use a cross-
head screwdriver of 3.5 mm diameter
to mount the device. The bell should
be carried, stored and used in an ap-
propriate way. Do not mount the bell in
case of any device parts lack, damage
or deformation. In case of malfunction
please notify the manufacturer.
Zakład Mechaniki i Elektroniki
ZAMEL sp.j.
J.W. Dzida, K. Łodzińska
ul. Zielona 27, 43-200 Pszczyna, Poland
Tel. +48 (32) 210 46 65, Fax +48 (32) 210 80 04
www.zamelcet.com, e-mail: marketing@zamel.pl
TECHNICAL DATA
Power terminals: L, N
Rated voltage: 230 V~
Rated voltage tolerance: -15 ÷ +10 %
Rated frequency: 50 / 60 Hz
Rated current: 15 mA
Load supply indicator: piezoelectric loudspeaker
Connection terminals quantity: 2
Connection wire section: 0,2 ÷ 2,50 mm
Operating temperature: -20 ÷ +45
Operating position: optional
Casing fastening: TH 35 rail (according to PN-EN 60715)
Protection class: II
Overvoltage category: II
Pollution level: 2
Standard conformity: PN-EN 60669-1; PN-EN 60669-2-1

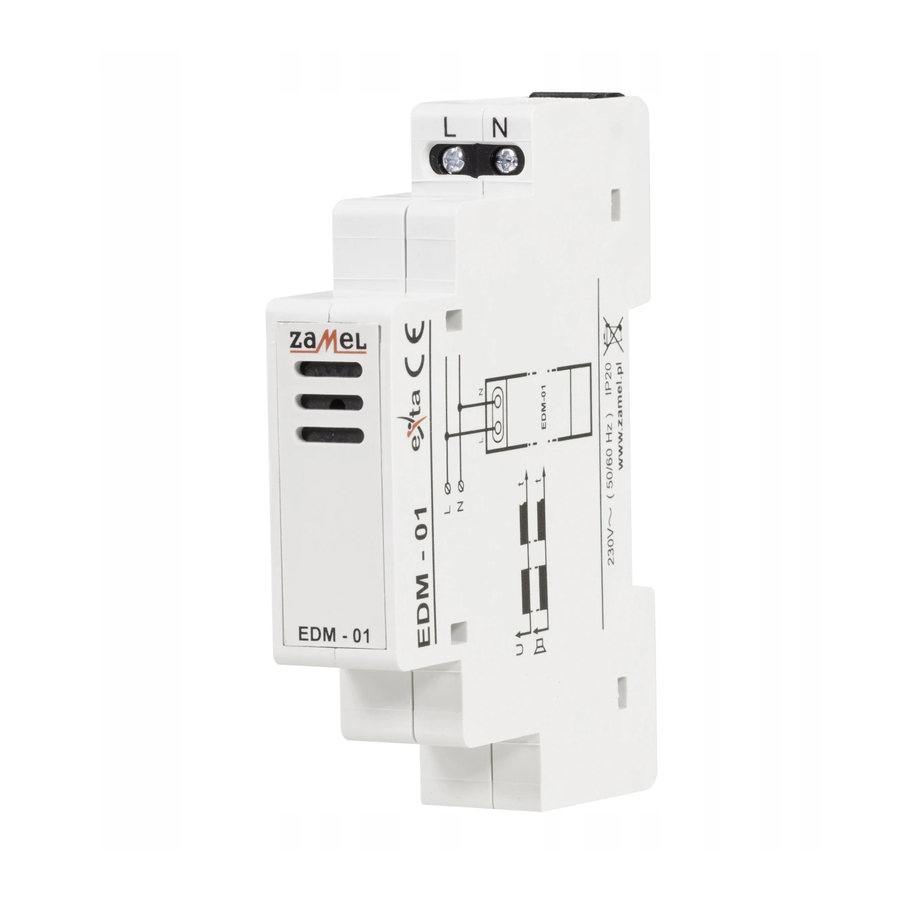

APPERANCE
Power terminal (L)
Piezoelectric loudspeaker
INSTRUCTION MANUAL
EDM - 01
C
o
Casing IP: IP20 (PN-EN 60529)
Dimensions: single-module (17,5 mm) 90x17,5x66 mm
Weight: 51 g
PN-EN 61000-4-2,3,4,5,6,11
2
Power terminal (N)
