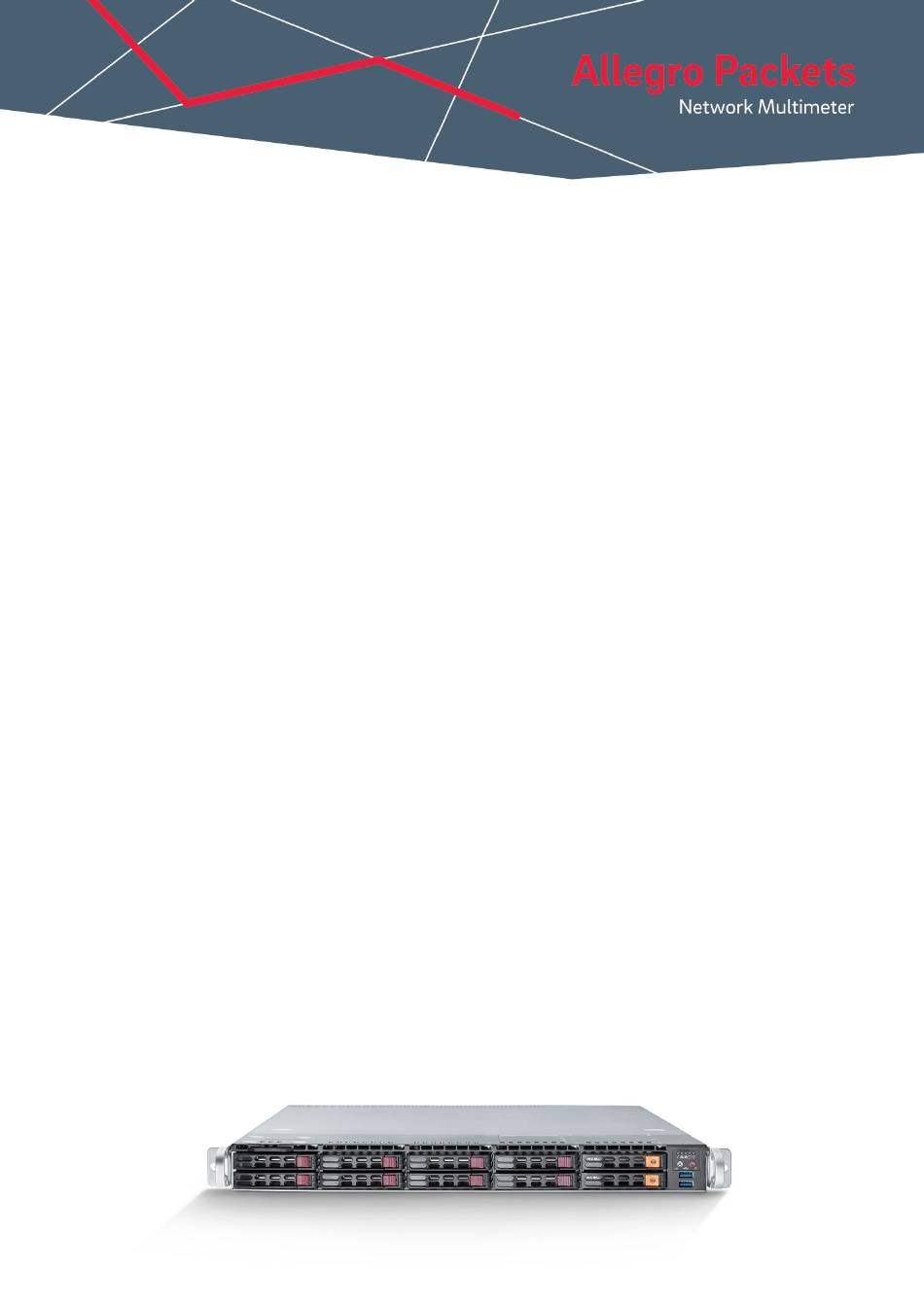

Installation Guide

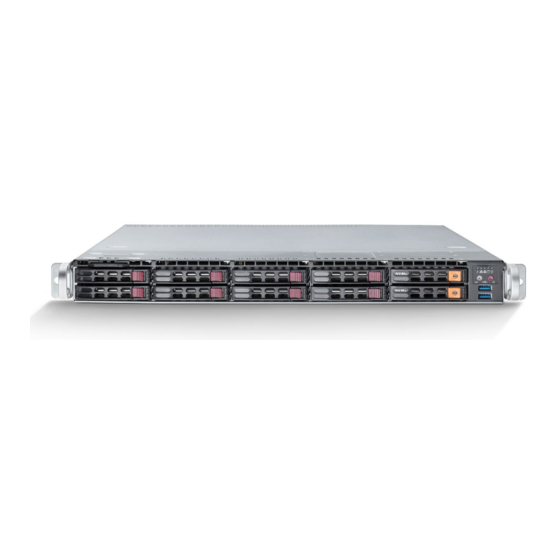

Allegro Network Multimeter
1300, 3300 and 5300
Default Settings
LAN:
DHCP client
Wi-Fi SSID:
allegro-mm-(see top label)
Wi-Fi URL:
https://allegro/ or
https://192.168.4.1
Overview
The guide contains the following sections:
1. Package Contents
1. Package Contents
The Allegro Network Multimeter package contains the following items:
1 x Allegro Network Multimeter 1300, 3300 or
5300 incl. redundant power supply
2 x Power cable
1 x Rack rails
1 x Wi-Fi USB adapter (already pre-installed)
Wi-Fi WPA2 key:
Web interface username:
Web interface password:
1 x Screw set for HDDs or U.2 SSDs
10 x 2.5" HDD Mounting frame
2 x 2.5" U.2 NVMe Mounting frame
1 x Installation guide
Allegro-MM
admin
allegro
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Allegro Network Multimeter 1300
Summary of Contents for Allegro Network Multimeter 1300
- Page 1 5. Configuration Reset 1. Package Contents The Allegro Network Multimeter package contains the following items: 1 x Allegro Network Multimeter 1300, 3300 or 1 x Screw set for HDDs or U.2 SSDs 5300 incl. redundant power supply 10 x 2.5” HDD Mounting frame 2 x Power cable 2 x 2.5“...
- Page 2 2. Hardware Deployment 2.1. Management Access (Control Plane) Step 1: Connect power supply é é power supply Step 2: Connect management LAN Alternative: Insert Wi-Fi adapter to any of the USB ports é é IP KVM MGMT By default, for LAN, the device will query an IP address via DHCP dynamically from your network. By default, for Wi-Fi, the device starts an Access Point (AP) so that smartphones, tablets or laptops can connect to the AP and access the web interface.
- Page 3 2.3 Install your own HDDs or U.2 NVMe SSDs The Allegro x300 can be used with up to 10 2.5" SATA HDDs. These must be mounted in the built-in frame. The mounting frames for the U.2 NVMe are The 2 drive bays on the right side support identified by the lettering "NVMe"...
- Page 4 Firmware Update Notification Update information via email With each release, Allegro Packets will send you an email with release notes and a link to download the update. If you want to be added to this mailing list, please send an email with the device serial number (‘Info ->...
