Installation Guide

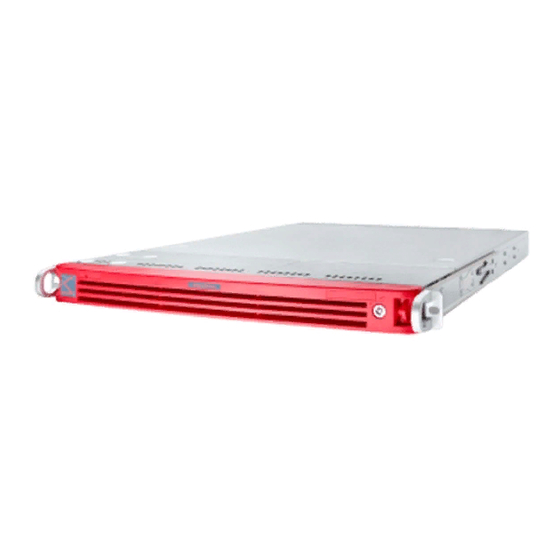

Allegro Network Multimeter 1300, 3300 and 5300
Default Settings
LAN:
DHCP client
Wi-Fi SSID:
allegro-mm-(see top label)
Wi-Fi URL:
https://allegro/ or
https://192.168.4.1
Overview
The guide contains the following sections:
1. Package Contents
2. Hardware Deployment
3. Device Start
4. Management Interface Configuration
5. Configuration Reset
1. Package Contents
The Allegro Network Multimeter package contains the following items:
1 x Allegro Network Multimeter 1300, 3300
or 5300 incl. redundant power supply unit
2 x Power cable
1 x Rack tracks
1 x Wi-Fi USB adapter (already pre-installed)
Wi-Fi WPA2 key:
Web interface user name:
Web interface password:
6. Firmware Update Notification
7. Factory Reset
8. Manual
1 x Screw set for HDDs
1 x Screw set for rack tracks
36 x 3.5" HDD mounting frame
1 x Installation guide
Allegro-MM
admin
allegro
Advertisement
Related Manuals for Allegro Network Multimeter 1300
Summary of Contents for Allegro Network Multimeter 1300

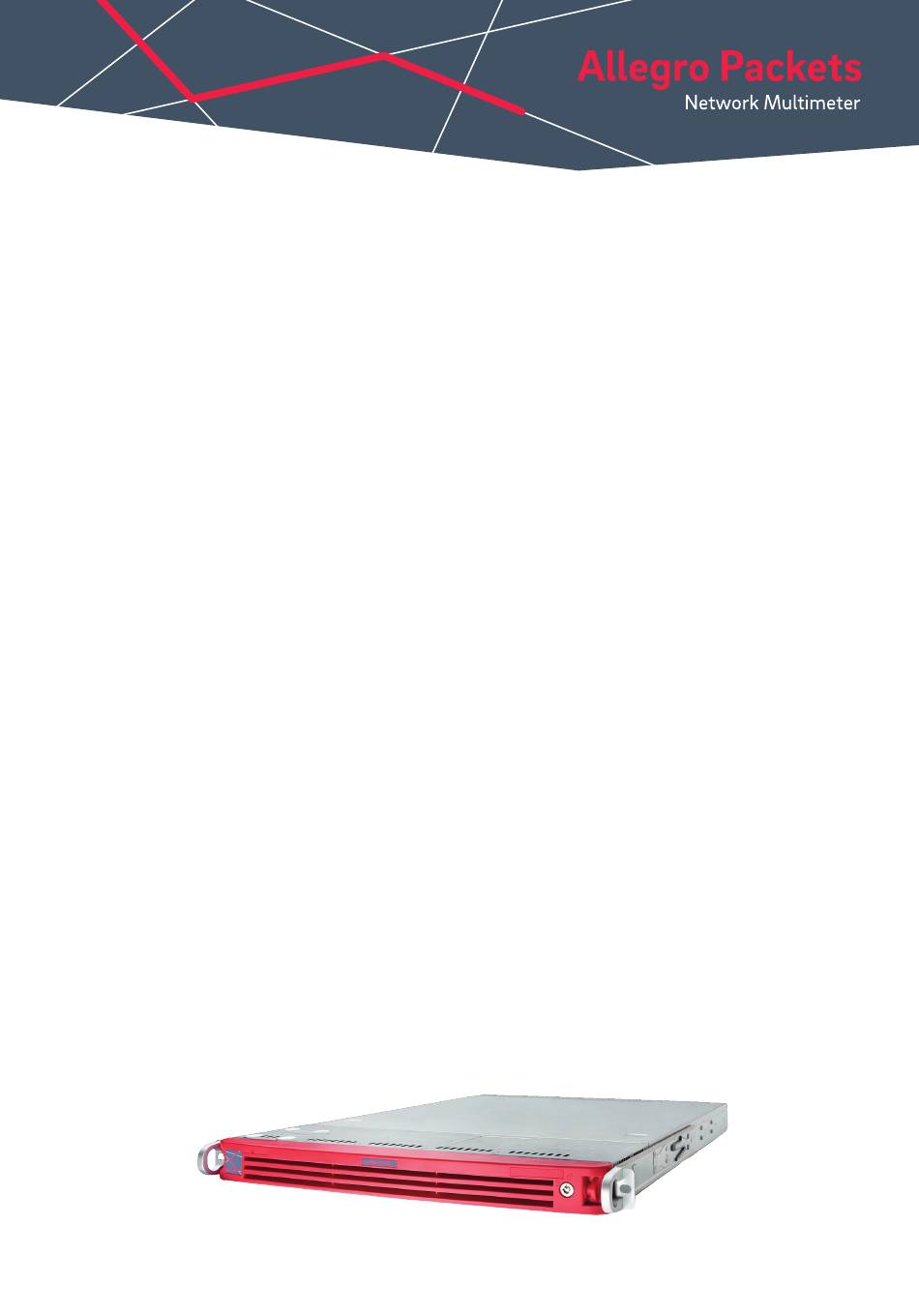

- Page 1 Installation Guide Allegro Network Multimeter 1300, 3300 and 5300 Default Settings LAN: DHCP client Wi-Fi WPA2 key: Allegro-MM Wi-Fi SSID: allegro-mm-(see top label) Web interface user name: admin Wi-Fi URL: https://allegro/ or Web interface password: allegro https://192.168.4.1 Overview The guide contains the following sections: 1.
- Page 2 2. Hardware Deployment 2.1. Management Access (Control Plane) Step 1: Connect power supply Step 2: Connect management LAN power supply Alternative: Insert Wi-Fi adapter to any of the USB ports IP KVM MGMT By default, for LAN, the device will query an IP address via DHCP dynamically from your network. By default, for Wi-Fi, the device will open an Access Point so smartphones, tablets, or laptops can connect to the Access Point and access the web interface.
- Page 3 Default configuration is bridge mode, thus running as an inline device. The link mode can be configured via the web interface (menu ‘Settings‘ -> ‘Global settings’): 2.3 Installing Your Own HDDs or U.2 NVMe SSDs The Allegro x300 can be used with up to 10 2.5“ SATA HDDs. These must be mounted in the built-in frame.
- Page 4 5. Configuration Reset The ‘Configuration reset‘ restores the configuration to the default settings: 1. Web interface: Go to menu ‘Settings’ -> ’Administration’ and click on ‘Reset system configu- ration’. All settings including the network configuration will be reset to factory default. 2.
