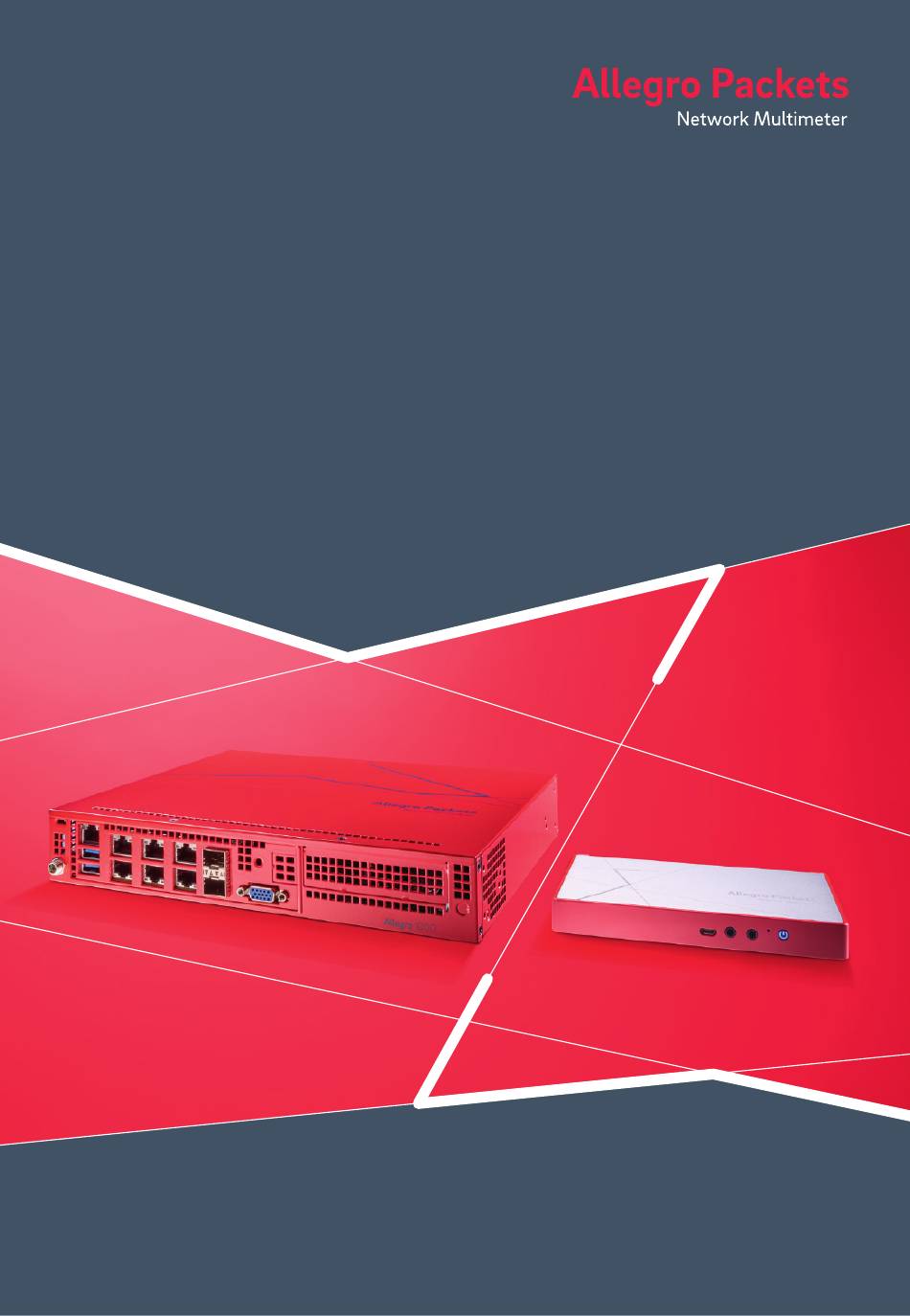

- Page 1 Installation Guide...
- Page 2 Allegro Network Multimeter Installation Guide This document describes the hardware installation and software configuration of the Allegro Network Multimeter. Default Settings Allegro 1 000 / 3 000 Allegro 200 LAN: DHCP client DHCP client WiFi SSID: allegro-mm-xxxx allegro-mm-xxxx WiFi WPA2 key: Allegro-MM Allegro-MM WiFi web access:...
- Page 3 2. Hardware Deployment 2.1. Management Access (Control Plane) Step 1: Connect power supply: Allegro 1000/3000 (portable version): Allegro 200 (portable version): Allegro 1200/3200 (rack version): Step 2: Connect management LAN connection to the Connect management LAN connection to the port labelled as „MGMT“ (the bottom left port): USB-Ethernet adapter and insert into any USB port: By default, the device will query an IP address via DHCP dynamically from your network.
- Page 4 2.2. Network Measurement Installation (Data Plane) The Allegro Network Multimeter analyzes all traffic going through any of the network interfaces. It can be deployed in the following setups: 1. Bridge mode: Every pair of interfaces build a layer-2 bridge, Both interfaces build a layer-2 bridge, sending sending all incoming traffic to the corresponding all incoming traffic to the corresponding interface: interface.
- Page 5 3. Device Start 1. Press the power button at the front of the device. The device will boot within two minutes. 2. LAN access: The device got its IP from the DHCP server in your network. Check the console output on an attached monitor or ask the server administrator for the IP of the device, then enter the IP into the URL bar of your web browser.
- Page 6 8. Factory Reset To reset the device configuration back to factory settings, follow these instructions one by one. The factory reset will clear the whole system installation and restores the firmware version to the version which was originally shipped with the Multimeter. You may want to update to the current firmware afterwards (see the Firmware update section). Allegro 1 000 / 3 000 Allegro 200 If the device is still running, power off the device by...
