Installation Guide

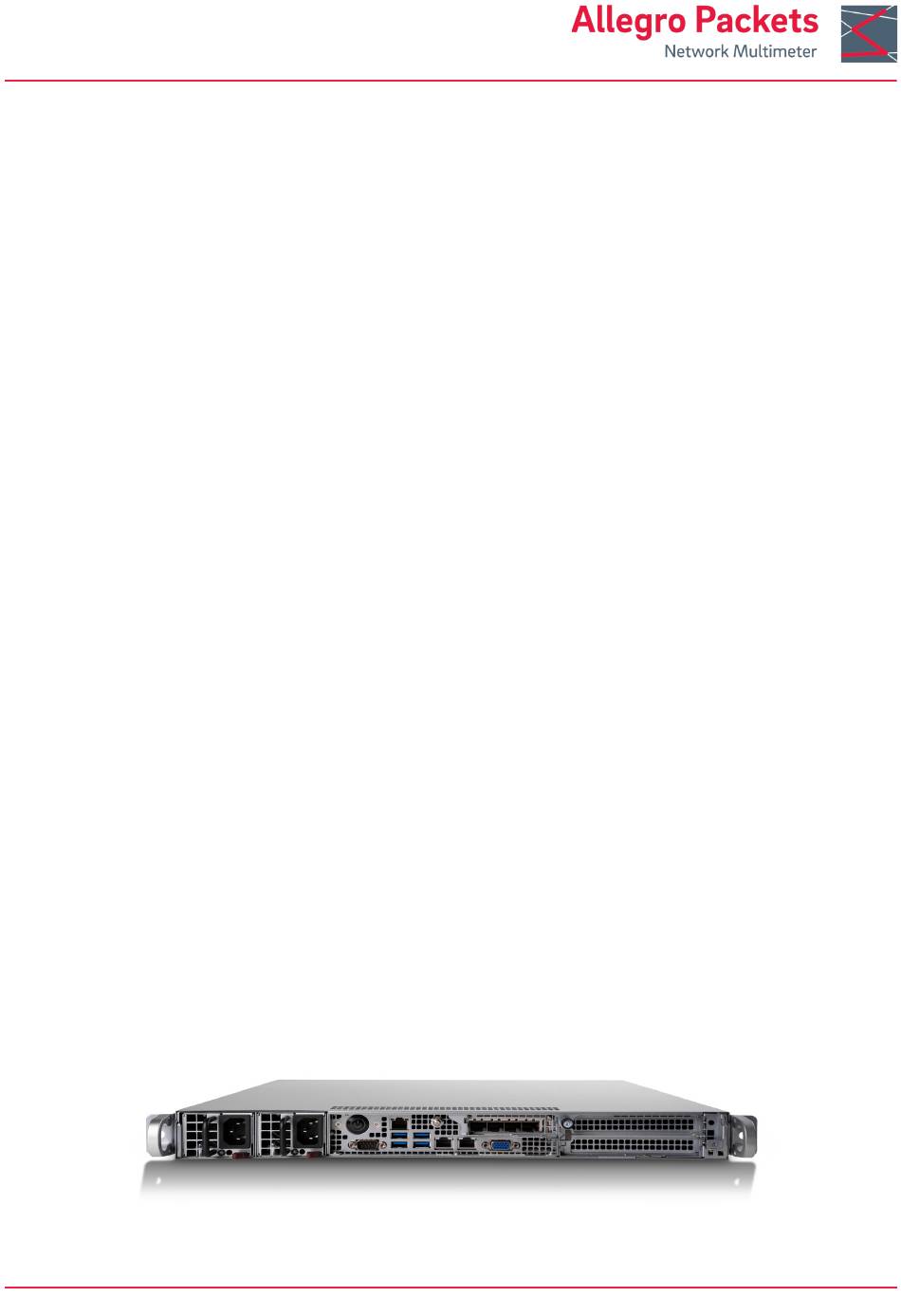

Allegro Network Multimeter 1210, 3210 and 5210
Default Settings
LAN:
DHCP client
WiFi SSID:
allegro-mm-(see top label)
Wi-Fi URL:
https://allegro/ or
https://192.168.4.1
Overview
This guide contains the following sections:
1. Package Contents
2. Hardware Deployment
3. Device Start
4. Management Interface Configuration
1 Package Contents
The Allegro Network Multimeter package contains the following items:
1 x Allegro Network Multimeter 1210, 3210
or 5210
1 x Wi-Fi Management USB adapter
(already pre-installed)
Wi-Fi-WPA2 key:
Web interface username:
Web interface password:
5. Configuration Reset
6. Firware Update Notification
7.
Factory Reset
8. Manual
1 x Wi-Fi 6e capture USB adapter
1 x Power Cable
1 x Rack Mount kit
1 x Installation Guide
x210 Series Installation Guide
Allegro-MM
admin
allegro
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Allegro 1210
Summary of Contents for Allegro 1210
- Page 1 Factory Reset 4. Management Interface Configuration 8. Manual 1 Package Contents The Allegro Network Multimeter package contains the following items: 1 x Allegro Network Multimeter 1210, 3210 1 x Wi-Fi 6e capture USB adapter or 5210 1 x Power Cable...
- Page 2 Wi-Fi settings can be made. 2.2 Network Measurement Installation (Data Plane) The Allegro x210 Series, consisting of the Allegro 1210, 3210 and 5210, analyzes all data traffic transmitted through all network interfaces of the built-in measurement cards. The Allegro Network Multimeter is equipped with four SFP+ ports (or if upgraded, either four SFP28 or two QSFP28 ports).
- Page 3 2.2.3 Wi-Fi Capturing To perform Wi-Fi measurements, the Wi-Fi Capture USB adapter needs to be connected to any USB 3.0 port on the Allegro Network Multimeter. Additional adapters can be connected via a USB 3.0 hub. 3 Device Start 1. Press the power button at the front of the device. The device will boot within five minutes.
- Page 4 Start your Allegro Network Multimeter and click ‘Settings’ in the menu and then ‘Firmware updates’. Click on ‘Check for new firmware’ and the Allegro Network Multimeter will tell you if a new version is available for download. If so, you can choose to download it directly to the device. In addition, this page provides an overview of all versions available to you.
