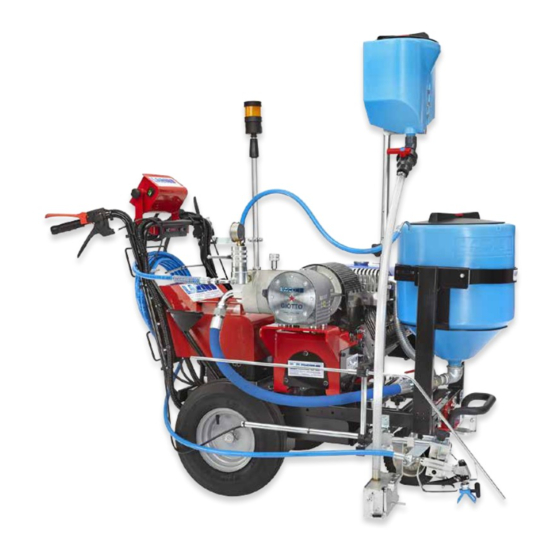

Line striper with diaphragm pump
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . l a r i u s . c o m
Airless DiAphrAgm
giotto liner plus
line striper with
diaphragm pump
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LARIUS Giotto Liner Plus and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Samoa LARIUS Giotto Liner Plus

Summary of Contents for Samoa LARIUS Giotto Liner Plus

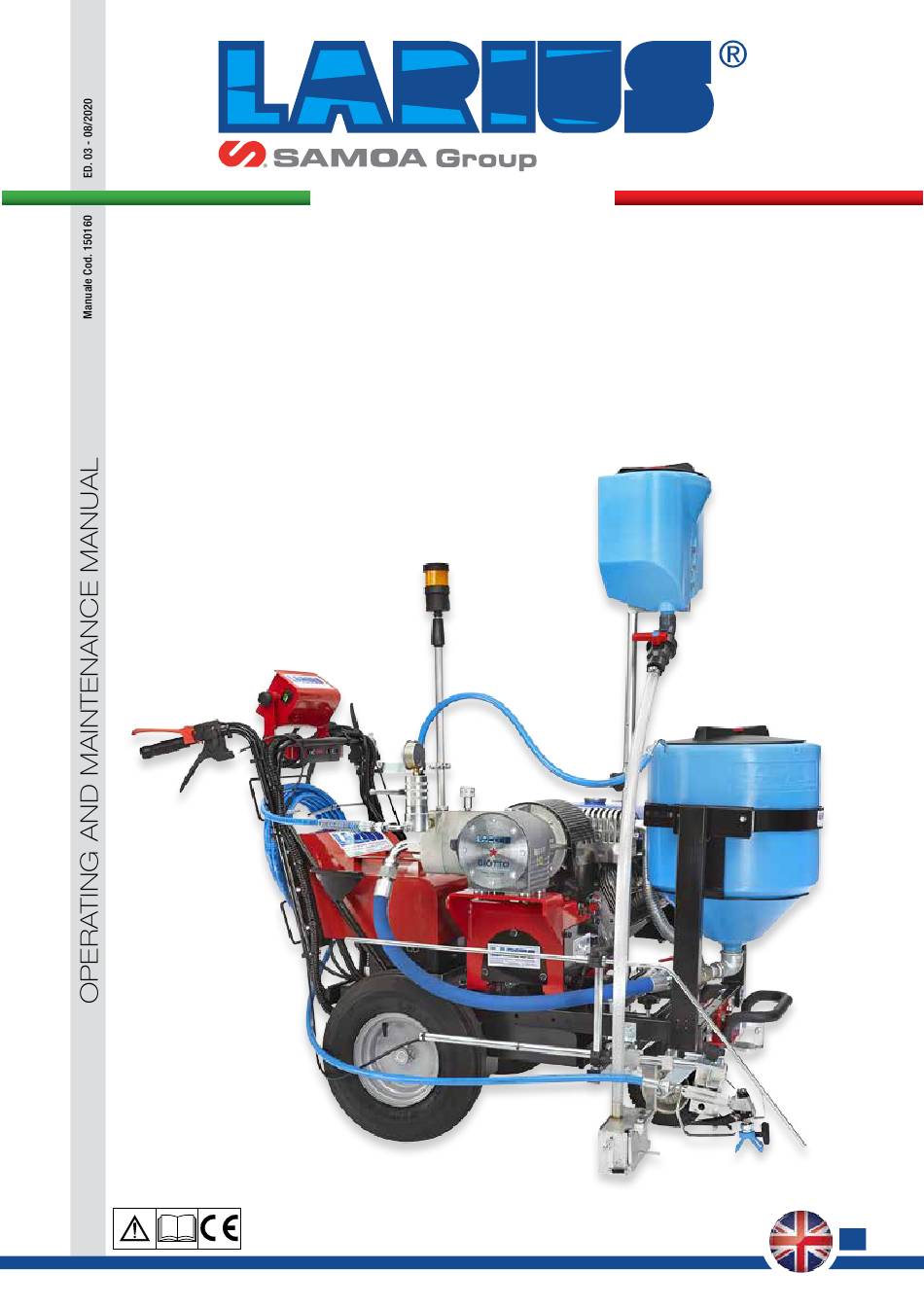

  • Page 1 w w w . l a r i u s . c o m Airless DiAphrAgm giotto liner plus line striper with diaphragm pump...
  • Page 3 Larius the ideal choice for achieving Paint spraying equipment professional performance. WELL PROVEN TECHNICAL QUALITY FOR ANY ON-GROUND MARKING APPLICATION The LARIUS airless line markers successfully join product performan- ce with operator requirements and allow the marking and the mainte- nance of any kind of pavement lines on roads, motorways, airports, pedestrian crossings, cycle paths, yards and wherever is required by the Highway Code with regards to horizontal road signs, guaranteeing...
  • Page 4 Professional line markers for the ideal “line” WHERE’S TARMAC... We can make a long “Road” together MIRò LINER PLUS DALì LINER PLUS GIOTTO LINER PLUS VIKING HAND PUSH HAND PUSH SELF-PROPELLED LINER Motor Power 5,5 - HP 5,5 - HP 10 - HP 12,75 - HP Max.
  • Page 5 Professional line markers for the ideal “line” ... THERE’S LARIUS An already marked work when you start. EXCALIBUR LINER ZEUS LINER DRAGON LINER EVEREST TH K2 ECO HAND PUSH HAND PUSH SELF-PROPELLED SELF-PROPELLED SELF-PROPELLED 7 - HP 9 - HP 9,5 - HP 14 - HP BATTERIA...
  • Page 6 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.
  • Page 7 GIOTTO LINER PLUS GIOTTO LINER PLUS Airless diaphragm road marking machines INDEX CLEANING AT THE END OF THE WORK .....p.18 INTRODUCTION ............p.2 GENERAL MAINTENANCE ...........p.19 WORKING PRINCIPLE ..........p.3 Daily .................p.19 TECHNICAL DATA ............p.5 Periodically ..............p.19 Application fields .............p.6 ROUTINE MAINTENANCE ..........p.19 Nozzles position table ..........p.6 Control oil level in the motor ........p.19 DESCRIPTION OF THE EQUIPMENT ......p.7...
  • Page 8 GIOTTO LINER PLUS WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. Read this operator’s manual carefully before using the equipment. An improper use of this machine can cause injuries to people or things. Do not use this machine when under the influence of drugs or alcohol.

  • Page 9: Working Principle

    GIOTTO LINER PLUS WORKING PRINCIPLE The paint dries quickly and the line is defined in a uniform manner with a single coat. The airless function requires the use of filtered paint which is specifically designed for airless application. This The GIOTTO LINER PLUS is a self-propelled device which was means that the paint is homogeneous, of a smooth and uniform conceived and designed for performing road markings along consistency and will not form crusts, nor will it become gelatinous...
  • Page 10 GIOTTO LINER PLUS 20L tank 50L tank www.larius.com ED. 03 - 08/2020 - Cod. 150160...

  • Page 11: Dati Tecnici

    GIOTTO LINER PLUS DATI TECNICI GIOTTO LINER PLUS Internal combustion engine power 5 kW Max. Delivery 8 l/min 210 bar Max. pressure Airless spray-gun AT 250 Size of nozzles 11x40 - 13x40 - 15x40 Tank 50l - 20l Colors Manual line-marking series Applications Small jobs of line marking and road maintenance...
  • Page 12 GIOTTO LINER PLUS Standard equipment Accessories N°1 Filter with pressure gauge Rif. 4502 N°1 High pressure tube 3/16”, 10 m manual gun beads N°1 Recirculation tube dispenser N°1 50 L gravity tank + closing valve and Rif. 4038 extactable filter Laser pointer kit N°1 Manual airless spray-gun AT250 Rif.4506...

  • Page 13: Description Of The Equipment

    GIOTTO LINER PLUS DESCRIPTION OF THE EQUIPMENT POS. Description Description POS. Filtro prodotto Tappo di scarico olio Valvola regolazione pressione Filtro olio Gruppo pompante Valvola di pescaggio Tappo di carico olio Manometro controllo pressione Tappo livello olio www.larius.com ED. 03 - 08/2020 - Cod. 150160...
  • Page 14 GIOTTO LINER PLUS POS. POS. Description Description LT. 50 tank Start-up cord Refractive sphere tank Cold start-up lever Flashing light Fuel tap Air filter Fuel tank Accelerator On / off switch www.larius.com ED. 03 - 08/2020 - Cod. 150160...
  • Page 15 GIOTTO LINER PLUS POS. POS. Description Description Recirculation tube AT 250 gun Product feeding tube Spraying gun feeding tube Color unit Castor wheel Recirculation valve Refractive sphere distributor unit www.larius.com ED. 03 - 08/2020 - Cod. 150160...

  • Page 16: Safety Rules

    GIOTTO LINER PLUS TRANSPORT Read carefully and entirely the following instructions before using the product. Please save these AND UNPACKING instructions in a safe place. • The packed parts should be handled as indicated in the The unauthorised tampering/replacement of one symbols and markings on the outside of the packing.

  • Page 17: Tube Connections

    GIOTTO LINER PLUS SETTING-UP The high speed of the product in the hose can create static electricity through discharges and sparks. TUBE CONNECTIONS It is suggested to earth the equipment. The pump is earthed through the earth cable of Flexible re-circulation tube connection the supply.

  • Page 18: Starting The Motor

    GIOTTO LINER PLUS Flexible tube and spray gun connection • Open the fuel tap (F8) and position it to “ON” (I). • Connect the flexible tube (F5) to the connector (F6) ensuring to tighten the fittings (the use of two wrenches is suggested). • Pull lever (F9) for first start-up (only when cold).

  • Page 19: Washing Of The New Equipment

    GIOTTO LINER PLUS • Ensure the gun (F13) is without nozzle. • Bring the accelerator lever (F11) to about 1/2 of its run. • Open the product output tap (F14). • Pull the lever (F12) for the first cold start up. WASHING OF THE NEW EQUIPMENT •...

  • Page 20: Product Preparation

    GIOTTO LINER PLUS • Start the motor following the indications provided in the • Remove the gun (F13) from its support and point it into a chapter “STARTING THE MOTOR”. container (F18). Hold the trigger down (to perform the cle- aning) until clean solvent comes out, or else until all of the •...
  • Page 21 GIOTTO LINER PLUS ADJUSTING THE GUN SUPPORT ARM Make sure the product to be used is compatible with the materials employed for manufacturing In order to adjust the position of the spray gun (G4) use the the equipment (stainless steel and aluminium). knobs (G5-G6).

  • Page 22: Operation

    GIOTTO LINER PLUS OPERATION SETUP PROCEDURE • Use the tooling after performing all the SETTING UP operations above described. • Check that there is enough unleaded petrol. • Open the product output tap (H1). ADJUSTING PUMP UNIT SPEED • Move the motor acceleration lever (H5) gently to increase or decrease the speed of the pump. During the painting operation it is normally recommended to maintain the position of the accelerator lever (H5) at about 3/4 of its maximum run.

  • Page 23: Spray Adjustment

    GIOTTO LINER PLUS • Press the button (I2) located on the control panel. • Use the appropriate switch (I6) to select the direction (FORWARD/REVERSE). Press the “GEAR” button (I7) to initiate the movement of the machine. I7 (GEAR) FORWARD BACK • If operation is required upon a long rectilinear section, the lever (I3) must be placed in its “B”...
  • Page 24 GIOTTO LINER PLUS • Turn the pressure adjustment (J1) handle slightly clockwise Recirculating-safety valve: when working at the to make the machine function at minimum pressure (pump maximum pressure available, releasing the gun activated), until the tank has been completely emptied then trigger sudden increases of pressure can occur.

  • Page 25: General Maintenance

    GIOTTO LINER PLUS GENERAL MAINTENANCE TOP UP HYDRAULIC OIL With each start up, check the hydraulic oil level by looking through the gauge (L1) on the side of the hydraulic body; If necessary, Discharge the pressure in the pump unit (open the use this type of oil to top up the level.

  • Page 26: Replacing Hydraulic Oil

    GIOTTO LINER PLUS DESCRIPTION OF THE REPLACING HYDRAULIC OIL CONTROLS After operating for 100 hours, replace the oil in the pump; • Discharge the waste oil through the plug (L4) fitted at the M1) Directional lever bottom of the pump casing. Pull on the lever to release the linear drive lock and allow the machine to perform curved line tracts.
  • Page 27 GIOTTO LINER PLUS M7) Direction selector Allows the user to select the machine’s advancement PUSH direction; stops the machine’s movement if pressed. STOP AVANTI M8) Speed INDIETRO M9) Light switch Activates/deactivates the frontal spotlight (if installed). M10) Electric brake release When pressed, allows for the machine to be pushed in the event of electrical malfunction of blockage.
  • Page 28 GIOTTO LINER PLUS CORRECT PROCEDURE OF DECOMPRESSION • Point the gun (N4) at the receptacle (N5) used to collect the • Press the switch (N1) to the OFF position (0) to stop the product and press the trigger to release the pressure. When equipment.

  • Page 29: Problems And Solutions

    GIOTTO LINER PLUS PROBLEMS AND SOLUTIONS Solution Problem Cause • The petrol manifold is closed; • Open the petrol manifold; • The equipment does not start • Engine is out of gas; • Refill gas tank; • Cold engine; • Use choke;...

  • Page 31: Spare Parts

    GIOTTO LINER PLUS SPARE PARTS Complete motor unit Tank 50L RIF.4895 pag. 30 pag. 34 Tank 25L RIF.4810 pag. 33 Filter group pag. 32 Complete color body pag. 28 Hydraulic body High pressure air gun pag. 26 AT 250 pag. 35 www.larius.com ED.
  • Page 32 GIOTTO LINER PLUS HYDRAULIC BODY WARNING: Always indicate code and quantity for each part required. www.larius.com ED. 03 - 08/2020 - Cod. 150160...
  • Page 33 GIOTTO LINER PLUS Pos. Code Description Pos. Code Description 12455 Hydraulic body 18314 Flange 12456 Hydraulic piston 31166 82019G Backstop for spring 18328 Shaft 82021 Spring 95114 Washer ø 12 82017 Cylinder liner 18171 Screw M 12x25 82022 OR 2118 81014 82023 Spring seat...
  • Page 34 GIOTTO LINER PLUS COMPLETE COLOUR BODY WARNING: Always indicate code and quantity for each part required. www.larius.com ED. 03 - 08/2020 - Cod. 150160...
  • Page 35 GIOTTO LINER PLUS Pos. Code Description Pos. Code Description 83000 Complete colour body 83002/1 Diaphragm 96099 Cylinder liner 83002/2 Oil distributor 33024 Self-tightening nut 83002/3 Spring 53006/1 Washer 83002/4 Sealing block 33022 Spring 83002 Complete diaphragm 33021 Shutter guide 33008 Manometer 33020 Suction valve body...
  • Page 36 GIOTTO LINER PLUS COMPLETE MOTOR UNIT WARNING: Always indicate code and quantity for each part required. www.larius.com ED. 03 - 08/2020 - Cod. 150160...
  • Page 37 GIOTTO LINER PLUS Pos. Code Description Pos. Code Description 95153 Washer ø9x36 32024 Washer ø 8 69107 Screw M10x80 96031 Screw M8x25 95096 Washer ø10 96030 Washer grower ø 8 96080 Nut M10 4436 Screw M8x70 20560 Screw M10x60 96893 Nut M12 81033 Washer ø10...
  • Page 38 GIOTTO LINER PLUS FILTER GROUP REF. 16200 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q.tà Pos. Code Description Q.tà 33008 Manometer 0-400 bar 96203 Gasket 16201 Filter tank 96204 Filter Base 96020 Spring 96026 Union 16205 Standard sieve 60...
  • Page 39 GIOTTO LINER PLUS COMPLETE 25L TANK REF. 4810 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Pos. Code Description 4890 Serbatoio 25L completo 4274 Cinghia 4314 Vite 69014 Vite 52017 Dado 4250 Base 4308 Anello 4111 Coperchio completo 4309...
  • Page 40 GIOTTO LINER PLUS COMPLETE 50L TANK REF. 4895 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Pos. Code Description Support 18249/1 Cover 4894 Elbow 85014 Filter 20833 Adaptor 18231 Support 34107 Union 18249 50L Tank 95032 Seal 18246...
  • Page 41 GIOTTO LINER PLUS HIGH PRESSURE GUN AT 250 WARNING: Always indicate code and quantity for each part required. Ref. 11210 Mirò Small Liner complete spraying gun Components Pos. 5 - 11023 - Linkage 11005/3 Ball 11204/1 Ball housing 11205/2 Spring 11205/4 Linkage 11205/5...
  • Page 42 GIOTTO LINER PLUS ACCESSORIES WARNING: Always indicate code and quantity for each part required. Art. 16802: 30 MESH FILTER Art. 11250: AT 250 1/4” Art. 11200: AT 250 M16x1,5 Art. 270: 100 MESH FILTER Art. 271: 60 MESH FILTER PISTON GUNSTOCK FILTERS Art.
  • Page 43 GIOTTO LINER PLUS ANTISTATIC HOSE 1/4" - M16x1,5 Press. max. 250 bar Art. 35013: 5 mt Art. 4405: Art. 35014: 7,5 mt GLASS BEADS Art. 35017: 10 mt Art. 18026: 15 mt DISPENSER ELECTRIC MIXERS: Art. 217550: MX 850 Power 850W Art.
  • Page 44 GIOTTO LINER PLUS PLA 1/4” + BASE SUPER FAST-CLEAN Art. K11420-K11425-K11430: cm 130-180-240 PLA M16x1,5 + BASE SUPER FAST-CLEAN Art. K11421-K11426-K11431: cm 130-180-240 Art. 16780: TELESCOPIC PAINT ROLLER complete with: n. 1 Roller with extra-long fiber n. 1 Roller with long fiber n.
  • Page 45 GIOTTO LINER PLUS TOP - SPRAYING CLEAN Code tip TSC 7-20 TSC 19-20 TSC 7-40 TSC 19-40 TSC 9-20 TSC 19-60 TSC 9-40 TSC 21-20 TSC 11-20 TSC 21-40 TSC 11-40 TSC 21-60 TSC 13-20 TSC 23-20 TSC 13-40 TSC 23-40 TSC 23-60 TSC 13-60 TSC 15-20...

  • Page 47: Ce Declaration Of Conformity

    GIOTTO LINER PLUS CE DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: GIOTTO LINER PLUS Airless line striper with diaphragm pump complies with the directives: - EC Directive 2006/42 Machinery Directive...
