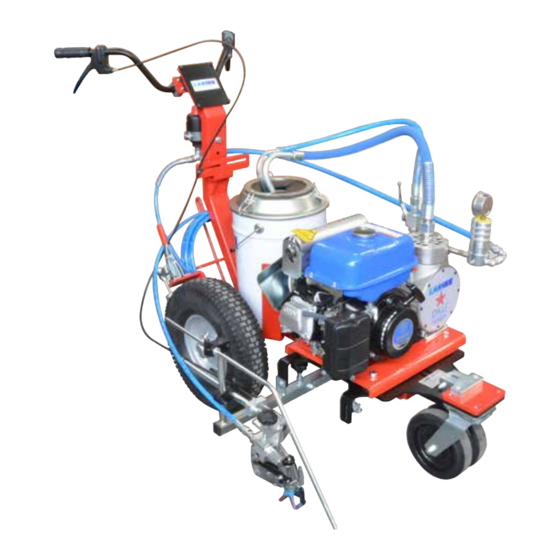

Samoa Larius Dali Liner Plus Operating And Maintenance Manual

Horizontal street marking
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
w w w . l a r i u s . c o m
Dalì liner Plus
Horizontal street marking
EN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Larius Dali Liner Plus and is the answer not in the manual?

Questions and answers

Related Manuals for Samoa Larius Dali Liner Plus

Summary of Contents for Samoa Larius Dali Liner Plus

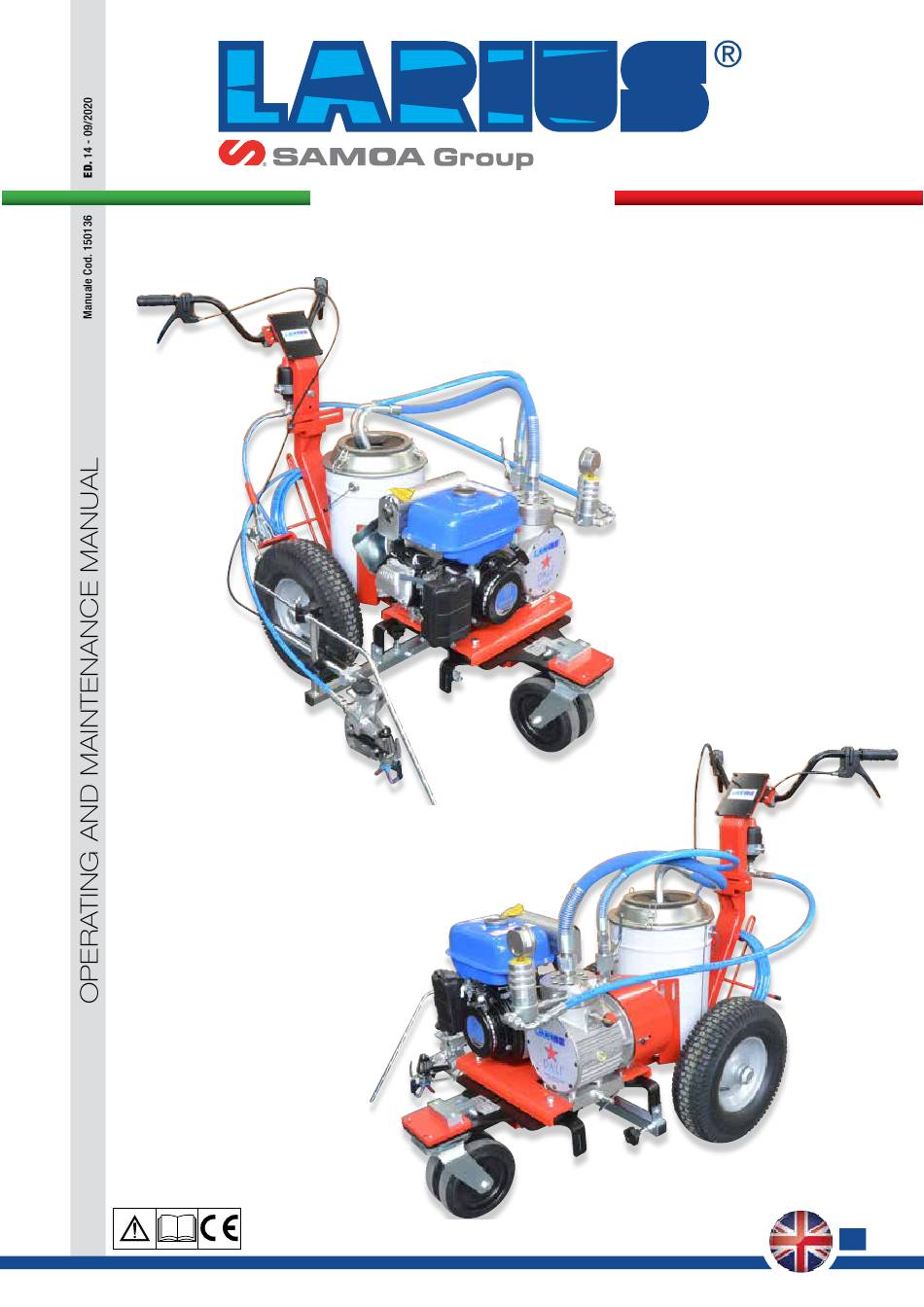

  • Page 1 w w w . l a r i u s . c o m Dalì liner Plus Horizontal street marking...
  • Page 3 Larius the ideal choice for achieving professional performance. WELL PROVEN TECHNICAL QUALITY FOR ANY ON-GROUND MARKING APPLICATION The LARIUS airless line markers successfully join product performan- ce with operator requirements and allow the marking and the mainte- nance of any kind of pavement lines on roads, motorways, airports, pedestrian crossings, cycle paths, yards and wherever is required by the Highway Code with regards to horizontal road signs, guaranteeing perfect lines on different surfaces.
  • Page 4 This manual is to be considered as an English language translation of the original manual in Italian. The manufacturer shall bear no responsibility for any damages or inconveniences that may arise due to the incorrect translation of the instructions contained within the original manual in Italian. Due to a constant product improvement programme, the factory reserves the right to modify technical details mentioned in this manual without prior notice.

  • Page 5: Table Of Contents

    DALì LINER PLUS Dalì liner Plus Horizontal street marking INDEX WARNINGS ................................. 2 WORKING PRINCIPLE ..............................3 TECHNICAL DATA ............................... 4 DESCRIPTION OF THE EQUIPMENTA ........................6 TRANSPORT AND UNPACKING ..........................9 CONDITIONS OF GUARANTEE ..........................9 SAFETY RULES ................................9 SETTING-UP ................................

  • Page 6: Awarnings

    DALì LINER PLUS WARNINGS The table below provides the meaning of the symbols used in this manual in relation to using, earthing, operating, maintaining, and repairing of this equipment. • Read this operator’s manual carefully before using the equipment. • An improper use of this machine can cause injuries to people or things. •...

  • Page 7: Bworking Principle

    DALì LINER PLUS WORKING PRINCIPLE The DALì LINER PLUS is a self-propelled device which was The paint dries quickly and the line is defined in a uniform manner conceived and designed for performing road markings along with a single coat. The airless function requires the use of filtered particularly difficult tracts of uneven road where marking would paint which is specifically designed for airless application.

  • Page 8: Ctechnical Data

    DALì LINER PLUS TECHNICAL DATA DALì LINER PLUS Motor power 4 Kw Max. Delivery 4 - l/m Max. pressure 210 bar Airless spray-gun N°1 AT 250 Supply Petrol Sizes of the furnished nozzles 1 x 11-40 - 1 x 13-40 - 1 x 17-40 50 L tank standard model of ref.
  • Page 9 DALì LINER PLUS Standard equipment Accessories Models Ref. 18359 Ref. 18382 N°1 Filter with pressure gauge N°1 High pressure tube 3/16", 10 m Manual gun beads dispenser Dalì Liner Plus 50 lt. N°1 Recirculation tube Ref. 18383 N°1 50 Lt gravity tank + closure valve and extractible filteri N°1 Manual airless spray-gun AT250 Ref.

  • Page 10: Ddescription Of The Equipmenta

    DALì LINER PLUS DESCRIPTION OF THE EQUIPMENT Fig. 1D Pos. Description Pos. Description AT 250 gun Lever lock/unlock wheel direction Spraying gun feeding tube Recirculation tube Lock brake safety Tank Flow compensator Manometer high pressure Lever gun Filter www.larius.com ED. 14 - 09/2020 - Cod. 150136...
  • Page 11 DALì LINER PLUS Fig. 2D Pos. Description Pos. Description Product feeding tube Air cold starting Petrol tank Air filter Rope starter motor Oil level cap combustion engine Pumping group Rotating wheel Combustion engine www.larius.com ED. 14 - 09/2020 - Cod. 150136...
  • Page 12 DALì LINER PLUS Fig. 3D Pos. Description Pos. Description Fuel tap OPEN/CLOSE Accelerator lever Spraying gun feeding tube Cooling fan Oil level light hydraulic body Transmission belt pumping group Belt tensioning screw Driving pulley ON - OFF switch combustion engine Free pulley www.larius.com ED.

  • Page 13: Etransport And Unpacking

    DALì LINER PLUS TRANSPORT AND UNPACKING SAFETY RULES • The packed parts should be handled as indicated in the • THE EMPLOYER SHALL TRAIN ITS EMPLOYEES ABOUT symbols and markings on the outside of the packing. ALL THOSE RISKS STEMMING FROM ACCIDENTS, ABOUT •...

  • Page 14: Hsetting-Up

    DALì LINER PLUS SETTING-UP • TIGHTEN AND CHECK ALL THE FITTINGS FOR CONNEC- TION BETWEEN PUMP, FLEXIBLE HOSE AND SPRAY GUN BEFORE USING THE EQUIPMENT. TUBE CONNECTIONS • ALWAYS USE THE FLEXIBLE HOSE SUPPLIED WITH STAN- DARD KIT. THE USE OF ANY ACCESSORIES OR TOOLING Flexible re-circulation tube connection OTHER THAN THOSE RECOMMENDED IN THIS MANUAL, •...
  • Page 15 DALì LINER PLUS CONNECTION OF THE GUN STARTING THE COMBUSTION ENGINE To switch the internal combustion engine proceed as follows: • Connect the high pressure flexible hose (H5) to the fitting (H6) and the gun (H7) tightening the fittings strongly (the use of •...
  • Page 16 DALì LINER PLUS Turn the equipment’s switch (H11) to ON (I). • • Fill the product tank with wash fluid. • Clean the inside of the tank with a brush. Fig. 8H • Bring the accelerator lever (H12) to about 1/2 of its run. Fig.
  • Page 17 DALì LINER PLUS • Open the recirculating-safety valve (H16). • Once the wash fluid has circulating enough, close the recirculating-safety valve (H16). CLOSE OPEN Fig. 17H Fig. 14H • Remove the gun (H14) from its support and point it into a •...

  • Page 18: Iregulations

    DALì LINER PLUS • When the pump idles stop the combustion engine. • At this point the machine is ready. If water-based paints are to be used, after the wash with solvent wash the tank again with soap and water, then rinse with clean water (repeating the previously described procedures).

  • Page 19: Joperation

    DALì LINER PLUS ADJUSTING BELT TENSION Turn the equipment knob (J2) on ON (I). • To adjust the belt tension (I6) you need to follow the following procedure: • Unscrew the 4 screws (I7). • Unscrew the locknut (I8). • Turn the screw (I9) to make the adjustment.

  • Page 20: Kpainting Operationes

    DALì LINER PLUS ADJUSTING PUMP UNIT SPEED NEVER point the spray gun at yourselves or at • Move the motor acceleration lever (J5) gently to increase or other people. The contact with the casting can decrease the speed of the pump. use serious injuries.

  • Page 21: Mgeneral Maintenance

    DALì LINER PLUS • Empty all of the wash fluid from the tank and turn off the equipment. • Turn the pressure adjustment handle (L1) to minimum (pump stopped). • Shut off the motor. • In case of long storage, we recommend you to suck and to leave light mineral oil inside the pumping group and the flexible hose.
  • Page 22 DALì LINER PLUS Fig. 1N TOP UP HYDRAULIC OIL With each start up, check the hydraulic oil level by looking through the gauge (N1) on the side of the; If necessary, use to Fig. 3N top up the level: AGIP DICREA 150 type hidraulic oil Fig.

  • Page 23: Ocorrect Procedure Of Decompression

    DALì LINER PLUS CORRECT PROCEDURE OF • Point the gun (O4) at the receptacle (O5) used to collect the product and press the trigger to release the pressure. When DECOMPRESSION completed, activate the safety catch again. Press the switch (O1) to "OFF" (0) to turn off the equipment. •...

  • Page 24: Pproblems And Solutions

    DALì LINER PLUS PROBLEMS AND SOLUTIONS Problem Cause Solution The equipment does not start The petrol manifold is closed; Open the petrol manifold; Engine is out of gas; Refill gas tank; Cold engine; Use choke; Setting valve faulty pressure; Verify and replace it, if necessary; The product is solidified inside the pump;...

  • Page 25: Spare Parts

    DALì LINER PLUS SPARE PARTS Tank 50L page 28 Tank 20L page 29 Complete colour body page 27 Filter group page 33 Flow compensator page 34 Complete frame page 30 Complete pump unit page 22-23-24-25 Transmission unit and positioning page 26 Complete steering unit page 32 www.larius.com...
  • Page 26 DALì LINER PLUS COMPLETE PUMP UNIT REF. 18306 WARNING: Always indicate code and quantity for each part required. www.larius.com ED. 14 - 09/2020 - Cod. 150136...

  • Page 27: Qcomplete Hydraulic Body

    DALì LINER PLUS Pos. Code Description Pos. Code Description 95114 Washer 18970 Complete hydraulic bpdy 18171 Screw 18919 18342 18321 Spacer 81014 18341 Ring 18320 Pulleya 42255 Bearing 96031 Screw 18314 Flange 95153 Washer 18324 Spacer 18316 Shaft 32024 Washer 18357 Identification plate 34009...
  • Page 28 DALì LINER PLUS www.larius.com ED. 14 - 09/2020 - Cod. 150136...
  • Page 29 DALì LINER PLUS Pos. Code Description Pos. Code Description 18946 Dowel 18910 Identification plate 220V 50Hz 18901 Hydraulic body 18931 Identification plate 110V 60Hz 32018 Cylinder liner 18357 Petrol identification plate 32033 Piston insert 18933 Identification plate 380V 50Hz 33002/5 34020 Rivet 33002/3...

  • Page 30: Rtrasmission Unit And Positioning

    DALì LINER PLUS TRANSMISSION UNIT AND POSITIONING RIF. 18358 WARNING: Always indicate code and quantity for each part required. 5 6 7 Slide positioning complete Pos. Code Description Q. tà Pos. Code Description Q. tà 32024 Washer 18185 Motor 6151 Nut auto b.

  • Page 31: Scomplete Colour Body

    DALì LINER PLUS COMPLETE COLOUR BODY REF. 18940 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Pos. Code Description 33004 Screw 18915 Vertical colour body 33017 Complete valve body 33033 Valve assembly 33018 Gas-ring 33026 Gasket 33019 Conical shutter...

  • Page 32: Ttank 50L

    DALì LINER PLUS TANK 50L RIF. 4895 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Pos. Code Description 4894 Spport 18249/1 Cover 18215 Elbow 85014 Filter 34107 Adaptor 18231 Union 95032 Union 18249 Tank 96099 Seal 18246 Union...

  • Page 33: Utank 20L

    DALì LINER PLUS TANK 20L RIF. 4890 Always indicate code and quantity for each part required. Pos. Code Description Pos. Code Description 4064 Tank 4111 Complete cover 4274 Belt 4314 Screw 69014 Screw 52017 4250 Base 4308 Ring 4834 Complete suction+delivery system 4309 Rubber 4109...

  • Page 34: Vcomplete Frame

    DALì LINER PLUS COMPLETE FRAME 4874 WARNING: Always indicate code and quantity for each part required. 9 10 www.larius.com ED. 14 - 09/2020 - Cod. 150136...
  • Page 35 DALì LINER PLUS Pos. Code Description Pos. Code Description 26020 Pointer unit 4256 Handle 4450 4464 Right lever 4869 Block 4865 Handlebar 8385 + Screw 4463 Left lever 3204/1 Washer 4923 Cover 34009 Washer 4873 Complete cable 3637 4864 Frame 4429 Gun support 4461...

  • Page 36: Wcomplete Steering Unit

    DALì LINER PLUS COMPLETE STEERING UNIT RIF. 4876 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Pos. Code Description 92038 Spring 4735 Screw 4253 Wire stopper 4737 Washer 4875 Threaded pin 330058 Screw 4739 Screw 4737 Base 5339...

  • Page 37: Xfilter Group

    DALì LINER PLUS FILTER GROUP REF. 16200 WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q. tà Pos. Code Description Q. tà 96203 Gasket 33008 Manometer 0-400 bar 96204 Filter Base 16201 Filter tank 96026 Union 96020 Spring...

  • Page 38: Yflow Compensator

    DALì LINER PLUS FLOW COMPENSATOR WARNING: Always indicate code and quantity for each part required. Pos. Code Description Q.ty Pos. Code Description Q.ty 4522 Collar 8078/1 T fitting 3372 Flow compensator 81033 Washer 37180 Gasket 96080 3283 Union 95096 Washer (Typ Grower) 33010 Gasket 4407...

  • Page 40: Zaccessories

    DALì LINER PLUS ACCESSORIES WARNING: Always indicate code and quantity for each part required PISTON GUNSTOCK FILTERS Art. 11039: Green (30M) - Art. 11038: White (60M) Art. 11037: Yellow (100M) - Art. 11019: Red (200M) Art. 4038: LASER POINTER Art. 217560: MX 1000 E KIT 40325: L91X + FAST-CLEAN REVERSIBLE TIP INCLUDED HOSE 3/8 x 15 mt.
  • Page 41 DALì LINER PLUS PLA 1/4” + BASE SUPER FAST-CLEAN Art. K11420-K11425-K11430: cm 130-180-240 PLA M16x1,5 + BASE SUPER FAST-CLEAN Art. K11421-K11426-K11431: Art. 16780: cm 130-180-240 TELESCOPIC PAINT ROLLER complete with: n. 1 Roller with extra- long fiber n. 1 Roller with long fiber n.
  • Page 42 DALì LINER PLUS Nozzles code SFC07-20 SFC19-60 SFC29-80 SFC07-40 SFC21-20 SFC31-40 SFC09-20 SFC21-40 SFC31-60 SFC09-40 SFC21-60 SFC31-80 SFC11-20 SFC23-20 SFC33-40 SUPER FAST-CLEAN SFC11-40 SFC23-40 SFC33-60 SFC13-20 SFC23-60 SFC33-80 SFC13-40 SFC25-20 SFC39-40 SFC13-60 SFC25-40 SFC39-60 SFC15-20 SFC25-60 SFC39-80 SFC15-40 SFC27-20 SFC43-40 SFC15-60 SFC27-40 SFC43-60...

  • Page 43: Ce Declaration Of Conformity

    DALì LINER PLUS CE DECLARATION OF CONFORMITY Company LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY Tel: +39 0341 621152 Fax: +39 0341 621243 E-mail: larius@larius.com Declares under his owns resonsibility that the product: DALI' LINER PLUS Horizontal street marking complies with the directives: - EC Directive 2006/42 Machinery Directive...
  • Page 44 LARIUS srl Via Antonio Stoppani 21 - 23801 Calolziocorte (LC) ITALY TEL. +39 0341 621152 - Fax +39 0341 621243 - larius@larius.com www.larius.com...
