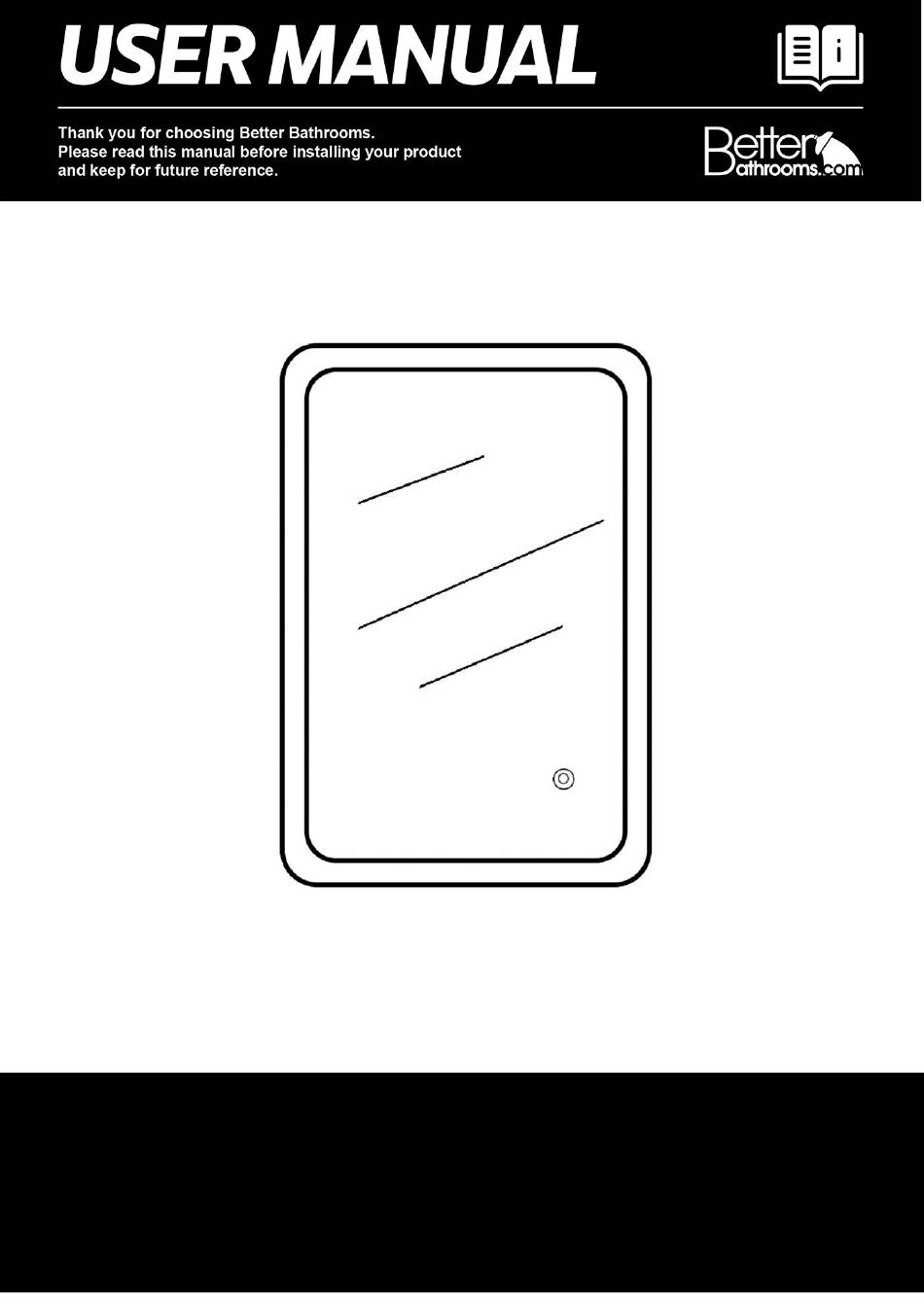

- Page 1 TOUCH CONTROL LED MIRROR BeBa_24917 BeBa_24918 • TOUCH CONTROL • LED LIGHT • IP54 INGRESS PROTECTION...
- Page 2 SAFETY • The fitting should be installed by a qualified electrician. • This fitting is only suitable for connection to a 220V~50Hz earthed supply in accordance with current IEE wiring regulations, and should be installed in accordance with local Building Regulations. •...
- Page 3 BATHROOM ZONES Zone 0: The interior of the bathtub or shower basin. The area around the bathtub or shower Zone 1: basin up to a height of 2.25m above the floor The area stretching to 0.6m outside the bath Zone 2: or shower and above the bath or shower if over 2.25m...
- Page 4 PARTS LIST D6 WALL PLUG x4 SCREW x4 MIRROR x1 TOOLS NEEDED FOR INSTALLATION TAPE ELECTRIC MEASURE DRILL SPIRIT FLAT HEAD LEVEL SCREWDRIVER HAMMER...
- Page 5 PRODUCT OVERVIEW LIGHT BAR ON/ OFF TOUCH BUTTON INSTALLATION IMPORTANT: Before commencing installation, ensure that there are no pipes or wires located behind the wall that you will be drilling into. • Ensure that the hanging location has been decided upon and marked clearly to avoid unwanted damage in the wall due to incorrect positioning.
- Page 6 HANGING THE MIRROR The mirror comes with the option of hanging in a landscape or portrait position. At the back of the mirror, there are 4 key holes 2 on the vertical side and 2 the horizontal side. To hang the mirror, you will need to drill two holes into the wall, ensuring that no wires or pipes are behind the wall before commencing.
- Page 7 CONNECTING THE MIRROR To connect your mirror, it must be first be connected to the mains supply. IMPORTANT: Installation must only be carried out by a qualified professional or electrician. At the back of your mirror is a length of 3 core cable which is connected to the mirror.
- Page 8 TECHNICAL SPECIFICATION Model BeBa-24917 BeBa-24918 WxHxD (mm) 500x700x30 600x800x30 Net Weight (Kg) Power Cord length 68.5 68.5 (cm) Power 36 W 48 W Input 220 V - 240 V 220 V - 240 V 50 50 Hz DISPOSAL Recycling facilities are now available for all customers at which you can deposit your old electrical products.
