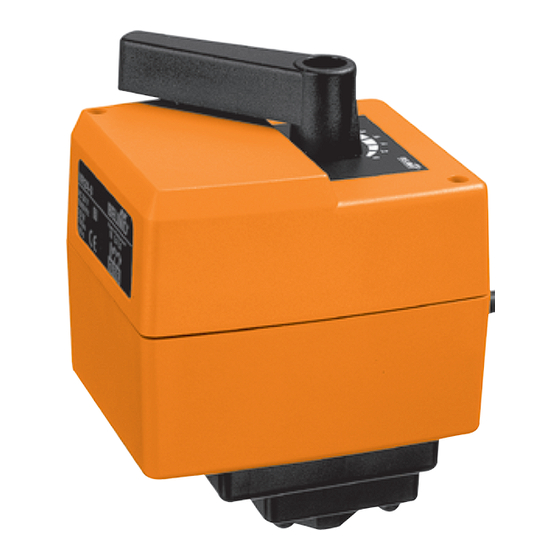

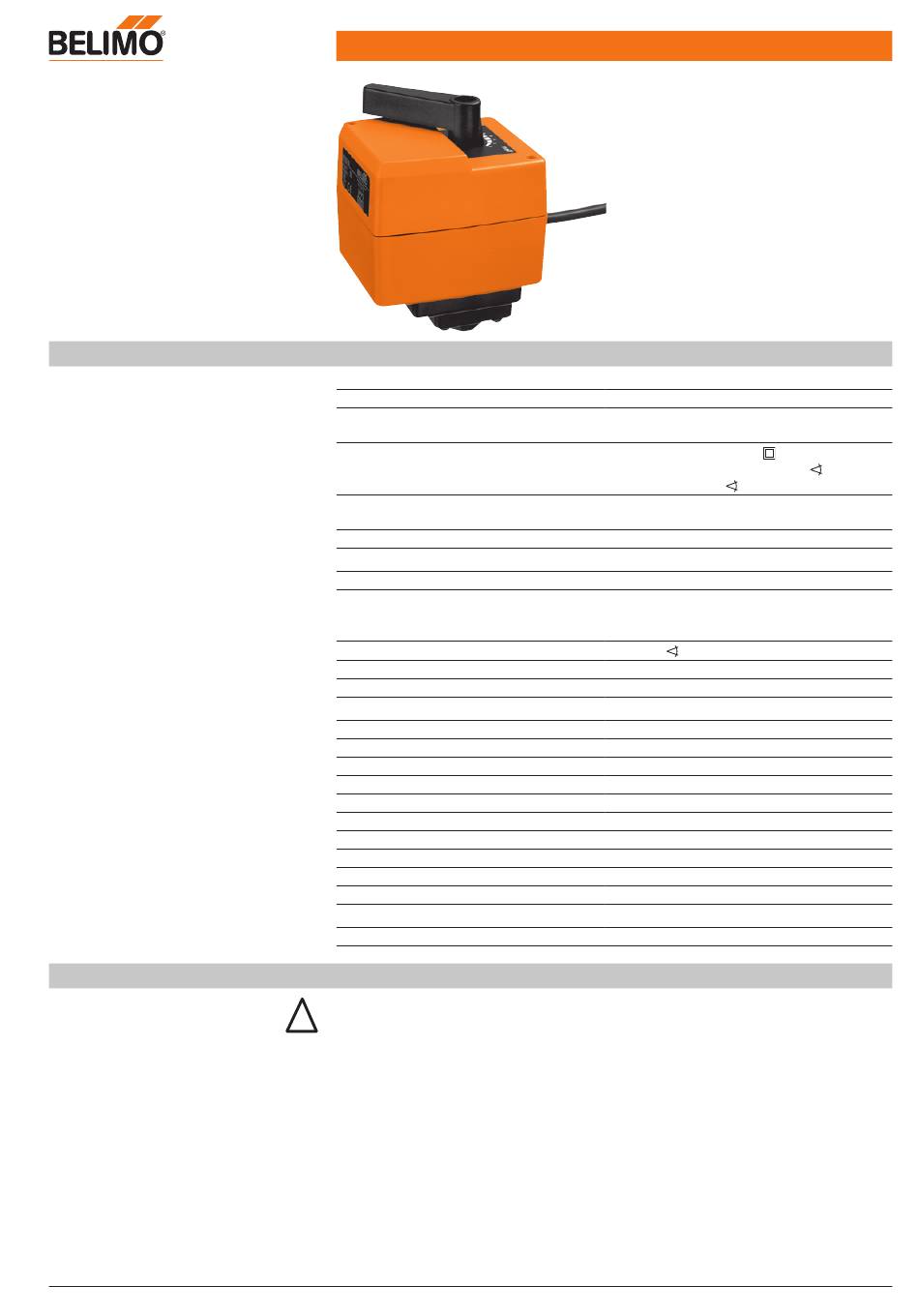

Belimo HR series Quick Start Manual

Rotary actuator for
2 and 3-way ball valves
• Torque 10 Nm
• Nominal voltage AC 24 V
• Control: Open/close or 3-point
• Auxiliary switch
Technical data
Dimensions / Weight

Safety notes

www.belimo.com

Technical data sheet

Nominal voltage
Electrical data
Power supply range
Power consumption In operation
Auxiliary switch
Connecting cable
Parallel connection
Torque (nominal torque)
Functional data
Position accuracy
Manual override
Running time
Sound power level
Position indication
Safety Protection class
Degree of protection
EMC
Mode of operation
Rated impulse voltage
Control pollution degree
Ambient temperature range
Media temperature
Non-operating temperature
Ambient humidity range
Maintenance
Dimensions
Weight
• The actuator has been designed for use in stationary heating, ventilation and air conditioning
!
systems and is not allowed to be used outside the specified field of application, especially in
aircraft or in any other airborne means of transport.
• It may only be installed by suitably trained personnel.
All applicable legal or institutional installation regulations must be complied with.
• The device does not contain any parts that can be replaced or repaired by the user.
• The device contains electrical and electronic components and is not allowed to be disposed
of as household refuse. All locally valid regulations and requirements must be observed.
T5-HR24-3-S • en • v1.0 • 03.2007 • Subject to changes
AC 24 V, 50/60 Hz
AC 19.2 ... 28.8 V
1.5 W at nominal torque
For wire sizing 1.5 VA
1 SPDT, 5 (1) A, AC 250 V II
Adjustable switching point, 0 ... 100%
(Factory setting 100% )
Motor 1 m, 3 x 0,75 mm
Auxiliary switch 1 m, 3 x 0,75 mm
No
Min. 10 Nm at nominal voltage
±5%
Temporary and permanent disengagement of the
gearing latch by means of the rotary knob on the
housing
140 s / 90°
Max. 35 dB (A)
Scale plate 0 ... 1
III Extra low voltage
IP40
CE according to 89/336/EEC
Type 1.B (to EN 60730-1)
0.8 kV (to EN 60730-1)
3 (to EN 60730-1)
0 ... +50°C
+5 ... +120°C (in ball valve)
–30 ... +80°C
95% r.H., non-condensating (to EN 60730-1)
Maintenance-free
See «Dimensions» on page 2
Approx. 500 g (without ball valve)
HR24-3-S
2
2
1 / 3
