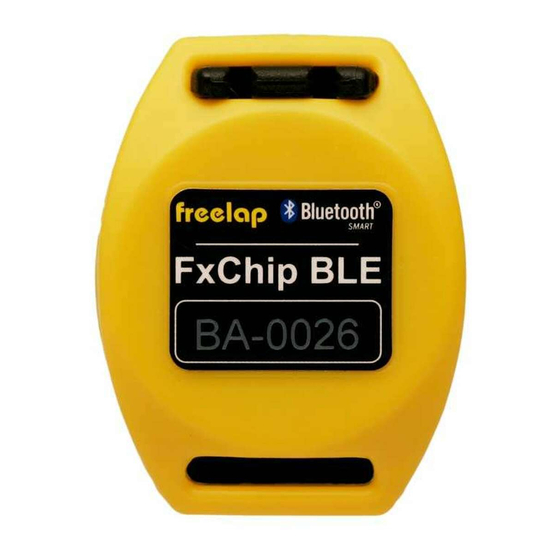

Freelap FXCHIP BLE Instructions For Use

BATTERY AND BATTERY LIFE
Your FxChip BLE runs on a CR 2032 battery (provided) with a 2'000 hours
battery life.
> Low battery indicator: When the battery of your device is low, you are
notified on your MyFreelap app.
> To change the battery: Unscrew the 4 screws on the back of the device
using a screwdriver, then remove the cover and the gasket. Remove the
old battery, and insert a new CR 2032 battery. Put back the gasket, the
cover, and screw back the 4 screws.
MEMORY
Your FxChip BLE has a temporary memory of 10 Laps. This means that
your track must contain a maximum of 11 transmitters.
Your timing data is not stored in your FxChip BLE but in your mobile device
on the MyFreelap app.
TECHNICAL SHEETS
• Dimensions: 36 x 48 x 14 mm
• Weight: 17g
• Technology: Bluetooth smart (BLE)
• Compatibility: Tx Gate Pro, Tx Touch Pro, Tx Junior Pro, Tx Pro Track, Tx
H2O Pro, Tx FullTrack Pro, PowerUnit (with Tx Unit65 / Tx Unit3), CxUnit,
LED Display
• Minimum time between 2 transmitters: 0.7 seconds
• Accuracy: 2/100 of a second
• Memory: 10 Laps
• Battery: CR 2032
• Battery life: 2'000 hours
• Water resistance: 5ATM
• Operating temperatures: -20°C to +50°C
TECHNICAL SUPPORT
Our FAQ (Frequently Asked Questions), as well as other manuals and user
guides, can be found on our website at:
http://www.freelap.ch/support/
If you cannot find the answers to your questions, please contact your
Freelap dealer. Find the list of Freelap dealers at:
http://www.freelap.ch/freelap-contact/
AFTER-SALES SERVICE & WARRANTY
Your FxChip BLE is guaranteed 2 years. If you have any questions or if
you need assistance with your device, please contact your Freelap
dealer.
www.freelap.ch
Follow Freelap on
MADE BY FREELAP SA
Av. D.-Jeanrichard 2A
CH-2114 Fleurier – Switzerland
+41 32 861 52 42 - www.freelap.ch
FREELAP TRANSPONDER WITH BLUETOOTH
&
INSTRUCTION FOR USE
FXCHIP BLE
SMART TECHNOLOGY.
