instruction Manual
orion Field Flattener for
short refractors

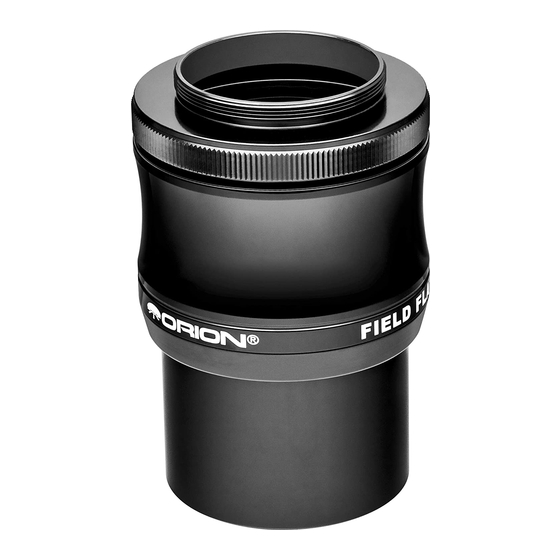

Your Orion Field Flattener for Short Refractors flattens the focal plane for astro-imaging
without affecting the focal length of the telescope. When imaging with a CCD or DSLR
camera, the far edges of the field of view are drastically sharpened when using the Field
Flattener with your fast refractor.
The Field Flattener was designed for the camera's sensor to be 55mm away from the
T-threads at the back.

attaching the Field Flattener to a Dslr camera

A T-ring for the make and model of your camera is the only required accessory to attach
the Field Flattener to your DSLR camera. The 55mm spacing is perfectly matched when

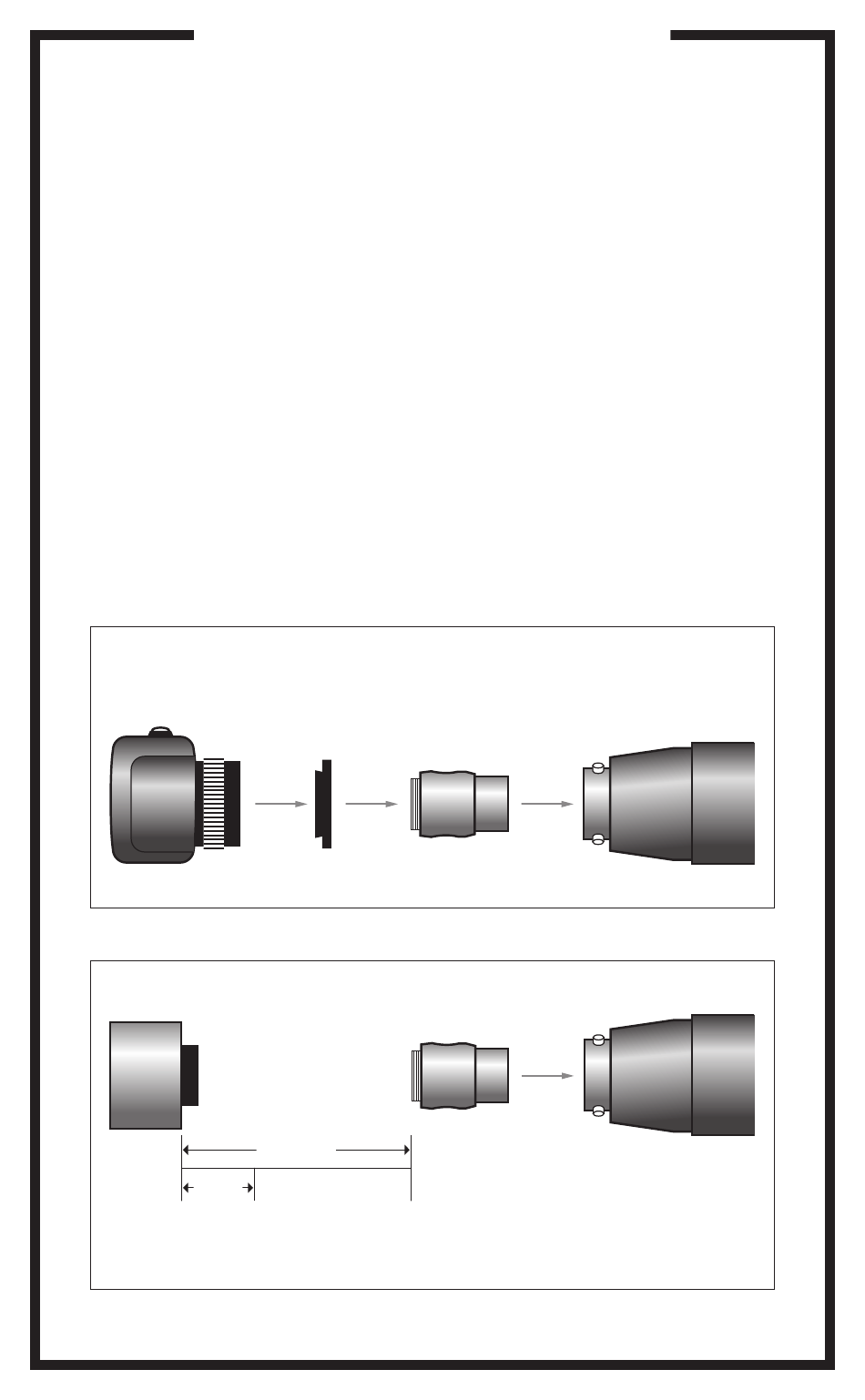

using the T-ring (Figure 1.1).

attaching the Field Flattener to a ccD camera

Most CCD cameras require less backfocus than a DSLR camera. That means you
will need to add spacing as needed to fill the 55mm of required distance to the Field
Flattener (Figure 1.2). T-thread spacers are available from Orion. For example, the
StarShoot Pro V2.0 has 20.1mm of backfocus; so it would require adding approxi-
DSLR
camera body
CCD
Camera
Distance from CCD
Flattener T-threads
should be 55mm
Xmm
"X"mm of additional spacing may
be required to achieve 55mm,
depending on make and model
#8893
T-ring
Figure 1.1.
chip to Field
55mm
of camera.
Figure 1.2.
Field
2" focuser on
Flattener
telescope
Field
2" focuser on
Flattener
telescope
IN 421 Rev. A 05/11
