erkodent Occluform-3 Installation And Instructions

Occluform-3

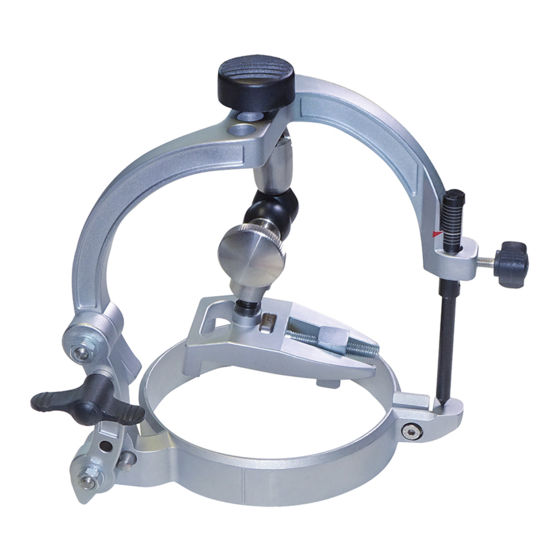

Occludating device to imprint the opposing bite during thermoforming.
Suitable for the units Erkoform serie 3.
The construction of the Occluform-3 device is based on
a Bonwill triangle with a side length of 11.5 cm (dashed
triangle) and a Balkwill angle of 20°.
Occluform-3, order number: 188 580
Pre-assembled: model pot and occludating device • Accessories: granules shovel and hex-wrench size 3.
Joint position ex works,
this position is the best
starting position to
articulate the models.

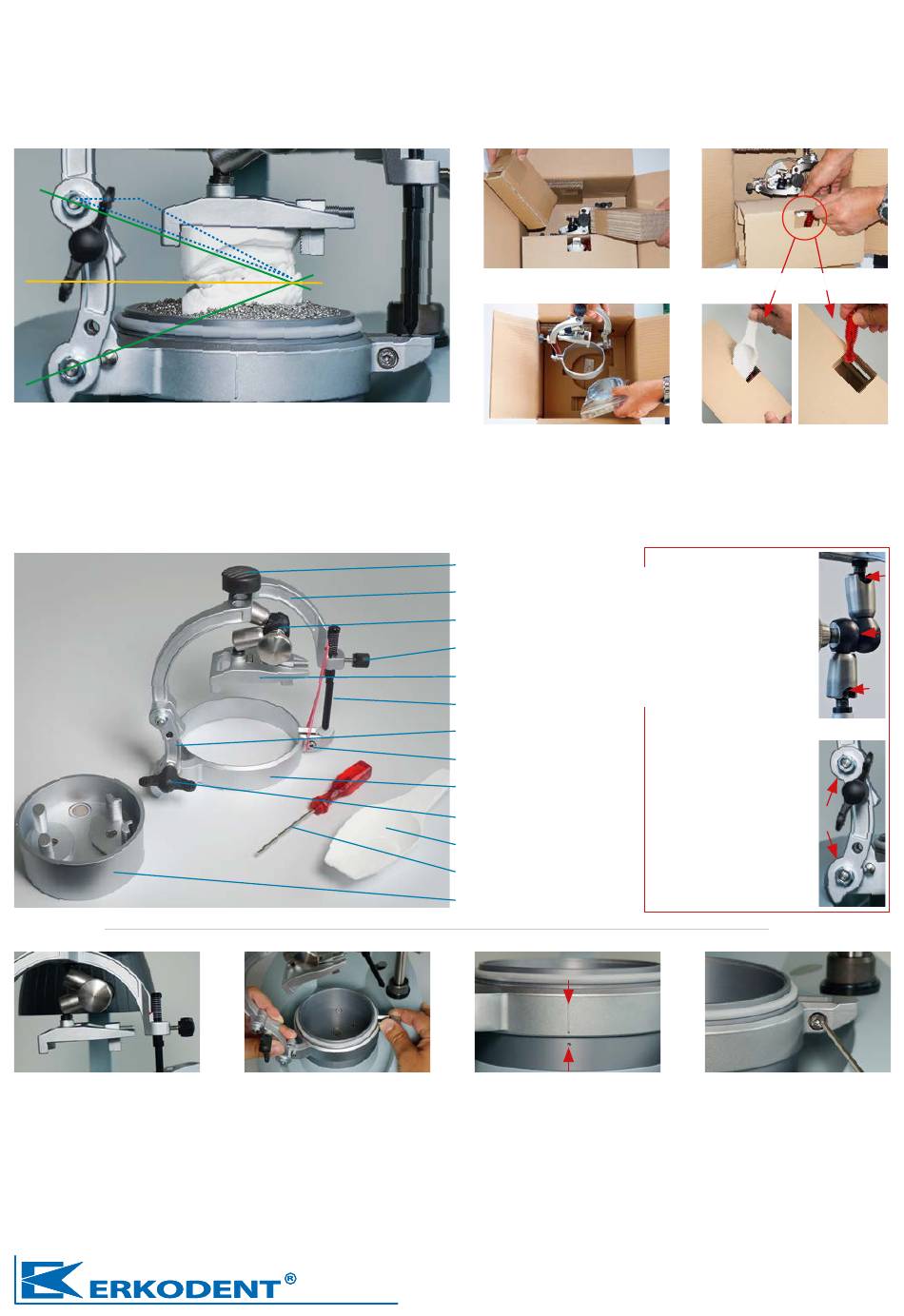

Installation and instructions
Installation instructions:
Put the fixation ring
crossways onto the
form pot and press it
downwards to the limit
stop (supporting pin to
the right).
Erkodent Erich Kopp GmbH • Siemensstraße 3 • 72285 Pfalzgrafenweiler • Germany
Tel.: +49 (0) 74 45 / 85 01-0 • Fax: / 85 01-15 • www.erkodent.com • info@erkodent.com
Open package and remove supporting cardboards.
Remove device parts and accessories and check for
completeness.
!
press button
occludating bow
arresting joint
supporting pin fixation
model plate
supporting pin
joint column
fixation screw
fixation ring
swing bolt
granules shovel
hex-wrench size 3
model pot
Align marking line of the
fixation ring to the point
at the form pot.
Release a stiff
arresting joint by
moving it several
times.
Never oil or
lubricate!
Never lubricate
or grease the
articulations!
Press fixation ring
downwards and tighten
the fixation screw with
the hex-wrench.
