erkodent RVEERKOFORM RVE Instructions

Operation:

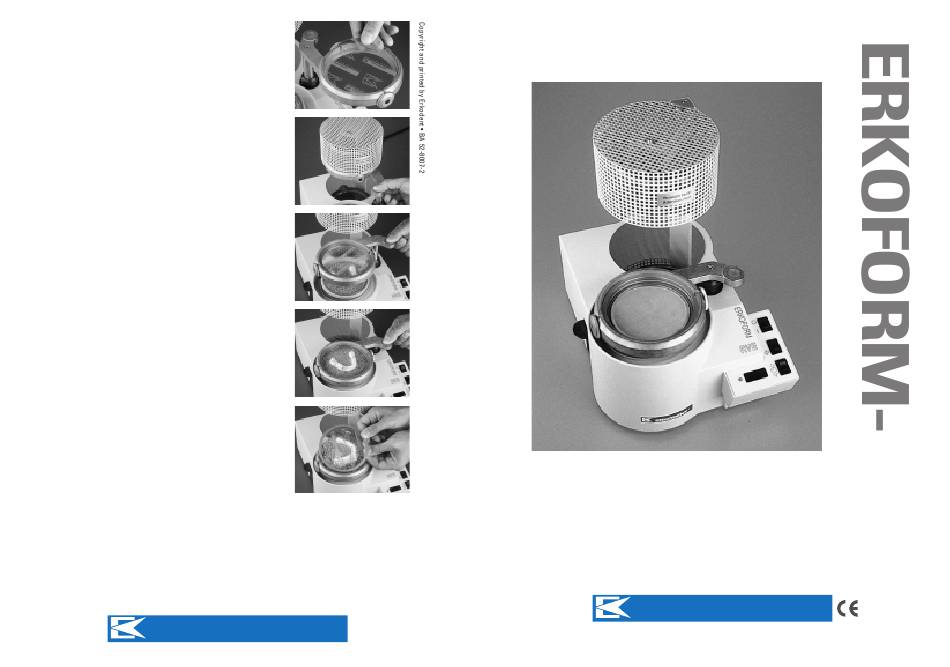

to 7: Put the thermoforming material into the foil frame
(H)(ill. 7), insert the foil cover ring (I) and secure by
rotating the securing screws (J).
8. On completion of the heating up period an acoustic
signal and a green light will switch on. The foil frame is
moved backwards by handle (G) under the heating
element (ill. 8) until the stop is reached.
9. The required heating time is displayed and runs
automatically. Control light green. The vacuum pump is
automatically switched on 1 min. before completion of
the heating process.
10. After completion of the heating time an acoustic signal
is sounded, the display shows 0.00 and the control light
goes out. Move the foil frame rapidly over the model
(ill. 9) and downwards (ill. 10).
11. The deepest position of the foil frame provides by a
contact an immediate vacuum. It is sufficient to press
the frame totally downwards without a special effort.
12. The thermoforming material is now formed and the
vacuum pump continues to run for 1 min. Then the
vacuum is released and the thermoformed foil can be
taken out (ill. 11). It may be necessary to allow thicker
materials to continue to cool down before removing
them from the unit.
13. The heating time entered before is flashing in the
display. If the thermoforming procedure shall be
continued, either change the time for another foil or
confirm. The procedure will then pass again.
Otherwise switch off the machine at the main switch.
Advice:
The heating element automatically extinguishes after
app. 20 sec. if the following working steps are not
made. Once the heater has gone out, the programm
will have to be repeated.
Cleaning and maintenance
The unit should only be cleaned with a damp cloth. Do not use any solvents or other
cleaning agents. To ensure that the unit maintains its full suction the rubber seals require
replacing once a year. The new seals should be firmly pushed into position.
We wish to advise you that the unit should only be used for its intended purpose, in case of
non-observance we cannot take any liability or guarantee for damages.
ERKODENT
7
8
9
10
11
®
Vacuum thermoforming unit for the dental
thermoforming technique. With electronically
controlled working procedure. Independent on
compressed air. With integral vacuum pump
and vacuum reservoir (patented).
ISO 13485:2003
ERKODENT
ERKODENT Erich Kopp GmbH • Siemensstr. 3 • 72285 Pfalzgrafenweiler • Tel. + 49 74 45/85 01-0 • Fax + 49 74 45/20 92
www.erkodent.com • info@erkodent.com
Instructions
RVE
®
