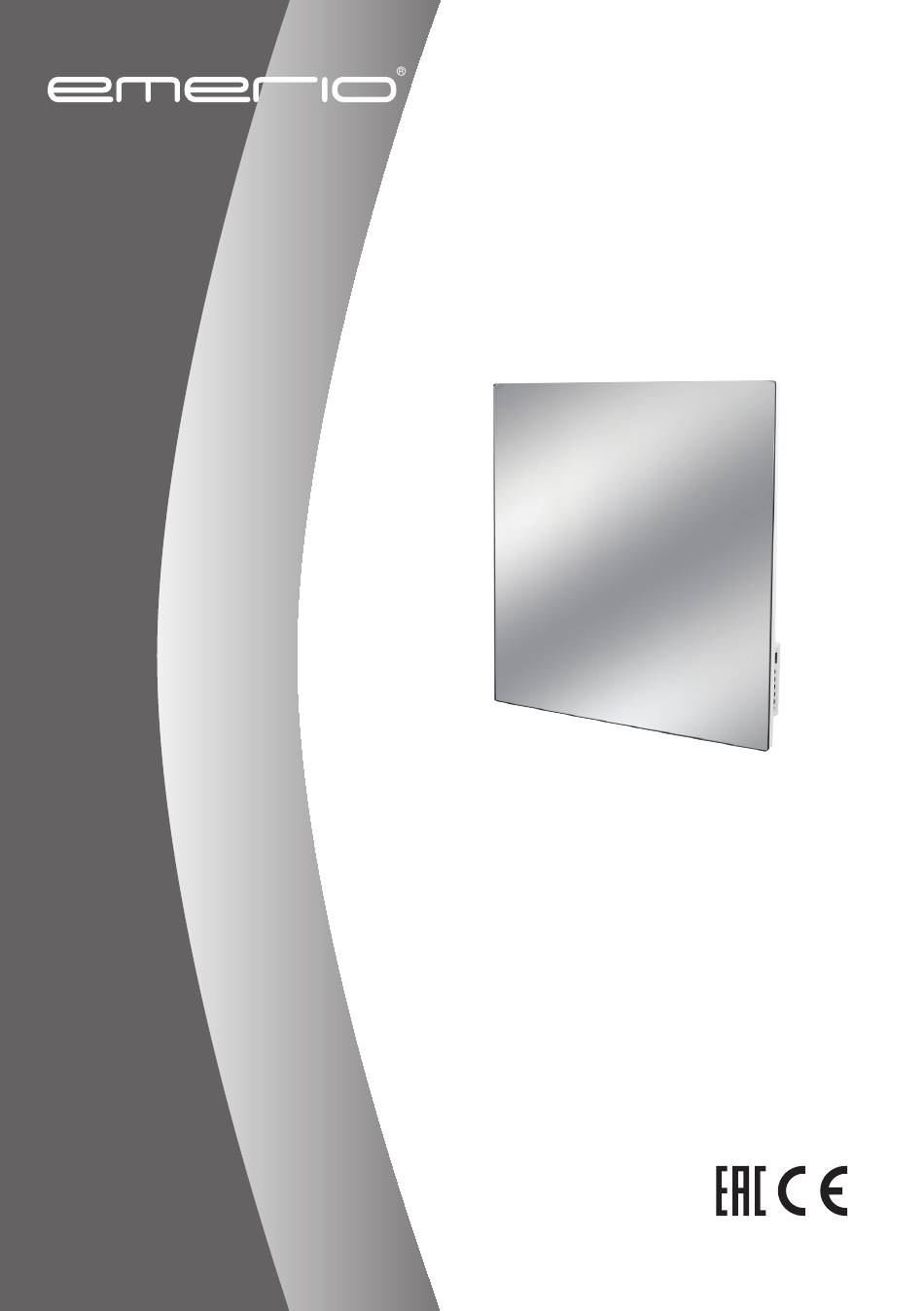

  • Page 1 CBC-124810.1 Infrared panel heater (EN) Infrarotheizung (DE) Radiateur infrarouge (FR) Pannello radiante a infrarossi (IT)
  • Page 2 Content – Inhalt – Teneur – Contenuto Instruction manual – English ..................- 2 - Bedienungsanleitung – Deutsch ................- 12 - Mode d‘emploi – Français ..................- 23 - Manuale d'istruzioni – Italiano ................. - 34 - - 1 -...
  • Page 3: Instruction Manual - English

    Instruction manual – English SAFETY INSTRUCTIONS Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place.
  • Page 4 7. CAUTION — Some parts of this product can become very hot and cause burns. Particular attention has to be given where children and vulnerable people are present. 8. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 5 21. Keep combustible material such as furniture, cushions, bedding, paper, clothes, curtains etc. at least 100cm away from the heater. 22. This heater has hot and arcing or sparking parts inside. Do not use it in the areas where gasoline, paint, or flammable liquids are used or stored.
  • Page 6 CBC-124810.1 PARTS DESCRIPTION Heating panel Temperature sensor Power switch Control panel Remote control LCD display On/off button Mode button Value increase button Value decrease button Timer button Heating light LCD display Date icon Icon of open-window detection function Icon of timer...
  • Page 7 WALL MOUNTING There is a pack of accessories provided with the appliance. Please use them for wall mounting according to below illustrations. Before installation, make sure the appliance is turned off and disconnected from power. Use the supplied installation template (a) to mark the position of the holes on the wall. Drill holes using a 8mm drill.
  • Page 8 2. Set the temperature. 1) Press the button “ + ” or “ - ” to set your desired temperature. You can choose from 0℃ to 37℃. 2) The display will flash the set temperature a few seconds and then turn back to show the current temperature.
  • Page 9 “+” / “-“. The appliance will not record this change. If you want to permanently modify the weekly schedule, please follow the steps below: Long press button “M” until you hear “DI” sound; the date icon flashes, press button “+” or “-” to choice which day you want to modify;...
  • Page 10 To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. EMERIO Switzerland AG Industriestrasse 47 6300 Zug...
  • Page 11 ERP information (EN) EMERIO Switzerland AG Supplier: Industriestrasse 47 6300 Zug Switzerland Declare that the product detailed below: Information requirements for electric local space heaters Model identifier(s): Item Symbol Value Unit Item Unit Heat output Type of heat input, for electric storage...
  • Page 12 EMERIO Switzerland AG Contact details Industriestrasse 47 6300 Zug Switzerland Satisfies the requirement of the Council Directives: COMMISSION REGULATION (EU) No 2015/1188 of 28 April 2015 and Amending COMMISSION REGULATION (EU) 2016/2282 implementing Directive 2009/125/EC of the European Parliament and of the Council with regards to...
  • Page 13: Bedienungsanleitung - Deutsch

    Bedienungsanleitung – Deutsch SICHERHEITSHINWEISE Lesen Sie vor dem Gebrauch unbedingt die nachfolgenden Anleitungen, um Verletzungen oder Beschädigungen zu vermeiden und das beste Ergebnis mit dem Gerät zu erzielen. Bewahren Sie diese Bedienungsanleitung an einem sicheren Ort auf. Wenn Sie dieses Gerät an eine andere Person weitergeben, stellen Sie sicher, dass Sie auch diese Bedienungsanleitung aushändigen.
  • Page 14 wurde und sie beaufsichtigt werden oder in der sicheren Bedienung des Gerätes unterrichtet wurden und die involvierten Gefahren verstehen. Kinder ab 3 Jahre und unter 8 Jahre dürfen das Gerät nicht an das Stromnetz anschließen, einstellen reinigen oder Wartungsarbeiten durchführen. 7.
  • Page 15 17. WARNUNG: Das Heizgerät darf nicht benutzt werden, wenn die Platte beschädigt ist. 18. Das Heizgerät muss so installiert werden, dass seine Schalter und anderen Bedienelemente nicht von einer Person berührt werden können, die sich in der Badewanne oder in der Dusche befindet. 19.
  • Page 16 28. Einen Abstand von mindestens 40 cm an der Vorderseite und 20 cm an den Seiten zu anderen Gegenständen und der Wand einhalten. 29. Babys und Kinder von Verpackungsmaterialien wie Plastikbeuteln fernhalten, um Erstickungsgefahr zu vermeiden. 30. Das Gerät (inklusive Kabel und Stecker) darf nur von einer autorisierten Fachkraft geöffnet und/oder repariert werden.
  • Page 17 CBC-124810.1 BESCHREIBUNG DER TEILE Heizplatte Temperatursensor Hauptschalter Bedienfeld Fernbedienung LCD-Display EIN-/AUS-Taste Modus-Taste Plus-Taste Minus-Taste Timer-Taste Heizleuchte LCD-Display Datumssymbol Symbol für die Funktion zur Erkennung offener Fenster Timer-Symbol Zeit Temperatur Symbol des Normal-Modus Symbol des Wochenplans Phase des Wochenplans Fernbedienung Das Gerät beinhaltet eine Fernbedienung. Legen Sie vor dem Gebrauch zwei 1,5 V AAA-Batterien in die Fernbedienung ein.
  • Page 18 MONTAGE AN DER WAND Das Gerät wird mit Montagezubehör geliefert. Anhand der folgenden Abbildungen das Gerät mit dem Zubehör an der Wand montieren. Vor der Montage ist sicherzustellen, dass das Gerät ausgeschaltet und von der Stromquelle getrennt ist. Mit der mitgelieferten Montageschablone (a) die Position der Bohrlöcher an der Wand markieren. Mit einem 8-mm-Bohrer Löcher bohren.
  • Page 19 1. Temperatur-Kalibrierung Die Taste „+“ 5 Sekunden gedrückt halten, um in den Kalibriermodus für die Temperatur zu gelangen. Der Wert wird durch Drücken der Taste „+“ oder „-“ kalibriert. Die Temperatur kann von -5 bis +5 Grad kalibriert werden 2. Temperatur einstellen. 1) Die Taste „...
  • Page 20 Montag 1/ Dienstag 2/ Mittwoch 3/ Donnerstag 4/ Freitag 5/ Samstag 6/ Sonntag 7 Phase Zeit 6:30 8:00 18:00 22:30 Temperatur 21 °C 18 °C 21 °C 16 °C Zum Beispiel: Am Montag läuft die erste Phase (P 1) von 6:30 bis 8:00; die eingestellte Temperatur für diese Phase beträgt 21 °C.
  • Page 21 Wiederverwertung von Ressourcen zu fördern. Nutzen Sie zur Rückgabe Ihres Altgeräts bitte die Rückgabe- und Sammelsysteme oder wenden Sie sich an den Händler, bei dem Sie dieses Gerät erworben haben. Dieser kann das Gerät umweltschonend entsorgen. EMERIO Switzerland AG Industriestrasse 47 6300 Zug...
  • Page 22 ERP-Informationen (DE) Lieferant: EMERIO Switzerland AG Industriestrasse 47 6300 Zug Switzerland Erklärt für das im Folgenden beschriebene Produkt: Erforderliche Angaben zu elektrischen Einzelraumheizgeräten Modellkennung(en): Angabe Symb Wert Einheit Angabe Einheit Wärmeleistung Nur bei elektrischen Speicher-Einzelraumheizgeräten: Art der Regelung der Wärmezufuhr (bitte eine Möglichkeit auswählen)
  • Page 23 Heizbeginns mit Betriebszeitbegrenzung Nein mit Schwarzkugelsensor Nein Kontaktangaben EMERIO Switzerland AG Industriestrasse 47 6300 Zug Switzerland Erfüllt die Anforderung der Richtlinien des Rates: VERORDNUNG (EU) Nr. 2015/1188 DER KOMMISSION vom 28. April 2015 und Anpassung der VERORDNUNG (EU) 2016/2282 DER KOMMISSION zur Durchführung der Richtlinie 2009/125/EG des Europäischen Parlaments und des Rates im Hinblick auf die Festlegung von Anforderungen an die...
  • Page 24: Mode D'emploi - Français

    Mode d‘emploi – Français CONSIGNES DE SÉCURITÉ Avant d’utiliser l’appareil, lisez toutes les consignes suivantes pour éviter des blessures et des dommages, et pour optimiser les performances de votre appareil. Conservez cette notice d’utilisation dans un endroit sûr. Si vous donnez ou transférez cet appareil à...
  • Page 25 de l'appareil d'une manière sûre et reconnaissent les risques encourus. Les enfants âgés d’au moins 3 ans et de moins de 8 ans ne doivent pas brancher, régler et nettoyer l'appareil ou d'effectuer l'entretien de l'utilisateur. 7. ATTENTION - Certaines parties de ce produit peuvent devenir très chaudes et causer des brûlures.
  • Page 26 18. L’appareil de chauffage doit être installé de façon telle que les interrupteurs et autres dispositifs de commande ne puissent pas être touchés par une personne dans la baignoire ou la douche. 19. Ne pas utiliser cet appareil de chauffage à proximité d’une baignoire, d’une douche ou d’une piscine.
  • Page 27 29. Tenez les emballages et les sacs en plastique hors de portée des nourrissons et des enfants pour éviter tout risque d’étouffement. 30. Toute ouverture ou réparation de l’appareil (y compris son cordon et sa fiche d’alimentation) doit être confiée à une personne compétente et agréée.
  • Page 28 CBC-124810.1 DESCRIPTION DES PIÈCES Élément chauffant Capteur de température Interrupteur d’alimentation Panneau de contrôle Télécommande Écran LCD Bouton marche/arrêt Bouton M (mode) Bouton + Bouton - Bouton minuterie Témoin de chauffe Écran LCD Symbole date Symbole fonction détection de fenêtre ouverte...
  • Page 29 FIXATION MURALE Un pack d’accessoires est fourni avec l’appareil. Utilisez ce pack pour fixer l’appareil au mur conformément aux illustrations ci-dessous. Avant de commencer le montage, vérifiez que l’appareil est éteint et débranché de la prise. Utilisez le modèle fourni (a) pour marquer la position des trous de fixation sur le mur. Percez les trous à...
  • Page 30 1. Étalonnage du capteur de température Appuyez sur le bouton + pendant 5 secondes pour afficher les paramètres d’étalonnage du capteur de température. Modifiez la valeur à l’aide des boutons + et -. La valeur doit être comprise entre -5 °C et +5 °C.
  • Page 31 Lundi 1 / Mardi 2 / Mercredi 3 / Jeudi 4 / Vendredi 5 / Samedi 6 / Dimanche 7 Plage horaire Heure 6 h 30 8 h 00 18 h 00 22 h 30 Température 21 °C 18 °C 21 °C 16 °C Exemple : le lundi, la première plage horaire (P1) court de 6 h 30 à...
  • Page 32 Pour recycler votre produit, utilisez les réseaux de collecte de votre région ou prenez contact avec le revendeur du produit. Ce dernier pourra vous aider à le recycler. EMERIO Switzerland AG Industriestrasse 47 6300 Zug...
  • Page 33 Informations ERP (FR) Fournisseur: EMERIO Switzerland AG Industriestrasse 47 6300 Zug Switzerland Déclare que le produit désigné ci-dessous : Exigences d'informations applicables aux dispositifs de chauffage décentralisés électriques Référence(s) du modèle : Caractéristique Symbole Valeur Unité Caractéristique Unité Puissance Type d'apport de chaleur, pour les...
  • Page 34 Option contrôle à distance Contrôle adaptatif de l'activation Limitation de la durée d'activation Capteur à globe noir Coordonnées EMERIO Switzerland AG Industriestrasse 47 de contact 6300 Zug Switzerland Satisfait aux exigences des Directives du Conseil : Règlement (UE) n° 2015/1188 de la Commission du 28 avril 2015 et amendé par le règlement (UE) n°...
  • Page 35: Manuale D'istruzioni - Italiano

    Manuale d'istruzioni – Italiano ISTRUZIONI DI SICUREZZA Prima dell'uso, accertarsi di aver letto tutte le istruzioni riportate di seguito per evitare lesioni o danni e ottenere i migliori risultati dall'apparecchio. Conservare questo manuale in un luogo sicuro. In caso di passaggio di proprietà dell'apparecchio, includere anche questo manuale di istruzioni.
  • Page 36 dai 3 anni agli 8 non collegheranno, regoleranno nè svolgeranno operazioni di pulizia o manutenzione sullo stesso 7. ATTENZIONE – Alcune parti del presente prodotto possono diventare molto calde e causare scottature. Fare particolare attenzione nel caso in cui siano presenti bambini e persone vulnerabili.
  • Page 37 Significa: “NON COPRIRE“. 21. Conservare materiali combustibili come mobili, cuscini, lenzuola, giornali, indumenti, tende, ecc. ad almeno 100 cm di distanza dall'apparecchio. 22. Questo apparecchio contiene parti calde che emettono scintille o archi elettrici. Non usare l'apparecchio in locali in cui benzina, vernici o liquidi infiammabili sono usati o conservati.
  • Page 38 31. Usare l'apparecchio esclusivamente per lo scopo per cui è progettato e come descritto in questo manuale. 32. Per quanto riguarda le informazioni che riguardano l’installazione, far riferimento al paragrafo di seguito del manuale. - 37 -...
  • Page 39 CBC-124810.1 DESCRIZIONE DELLE PARTI Pannello riscaldante Sensore della temperatura Interruttore di alimentazione Pannello di controllo Telecomando Display LCD Pulsante di avvio/arresto Pulsante della modalità Pulsante di aumento del valore Pulsante di diminuzione del valore Pulsante del timer Indicatore luminoso di riscaldamento...
  • Page 40 FISSAGGIO ALLA PARETE Insieme all'apparecchio è fornito un set di accessori. Usarli per fissare l'apparecchio alla parete, come descritto di seguito. Prima di installare l'apparecchio, assicurarsi che sia spento e scollegato dalla presa di corrente. Usare il modello di installazione fornito (a) per contrassegnare la posizione dei fori sulla parete. Praticare i fori usando una punta da trapano da 8 mm.
  • Page 41 regolare il valore sul display premendo i pulsanti + e –. L'intervallo di calibrazione è compreso tra -5 e +5. 2. Impostazione della temperatura 1) Premere il pulsante + o – per impostare la temperatura desiderata. La temperatura può essere impostata tra 0°C e 37°C.
  • Page 42 questo intervallo è 18°C; il terzo intervallo (P 3) va dalle 18:00 alle 22:30, e la temperatura impostata per questo intervallo è 21°C; il quarto intervallo (P 4) va dalle 22:30 alle 6:30 di martedì , e la temperatura impostata per questo intervallo è 16°C. Se si desidera modificare temporaneamente la temperatura impostata per il intervallo corrente, premere direttamente il pulsante + o –.
  • Page 43 Per restituire il dispositivo utilizzato, servirsi dei sistemi di restituzione e raccolta o contattare il proprio rivenditore autorizzato dove il prodotto è stato acquistato. Il rivenditore autorizzato si occuperà dello smaltimento sicuro del prodotto. EMERIO Switzerland AG Industriestrasse 47 6300 Zug Switzerland...
  • Page 44 Informazioni ERP (IT) Il fornitore: EMERIO Switzerland AG Industriestrasse 47 6300 Zug Switzerland dichiara che il prodotto descritto di seguito Informazioni obbligatorie per gli apparecchi per il riscaldamento d'ambiente locale elettrici Identificativo del modello: Dato Simbolo Valore Unità Dato Unità...
  • Page 45 Contatti EMERIO Switzerland AG Industriestrasse 47 6300 Zug Switzerland è conforme ai requisiti fissati dalle seguenti direttive: REGOLAMENTO (UE) N. 2015/1188 DELLA COMMISSIONE del 28 aprile 2015 e REGOLAMENTO (UE) N.
