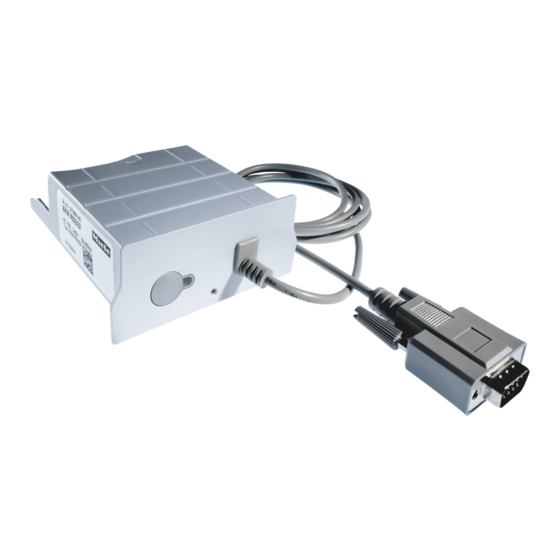

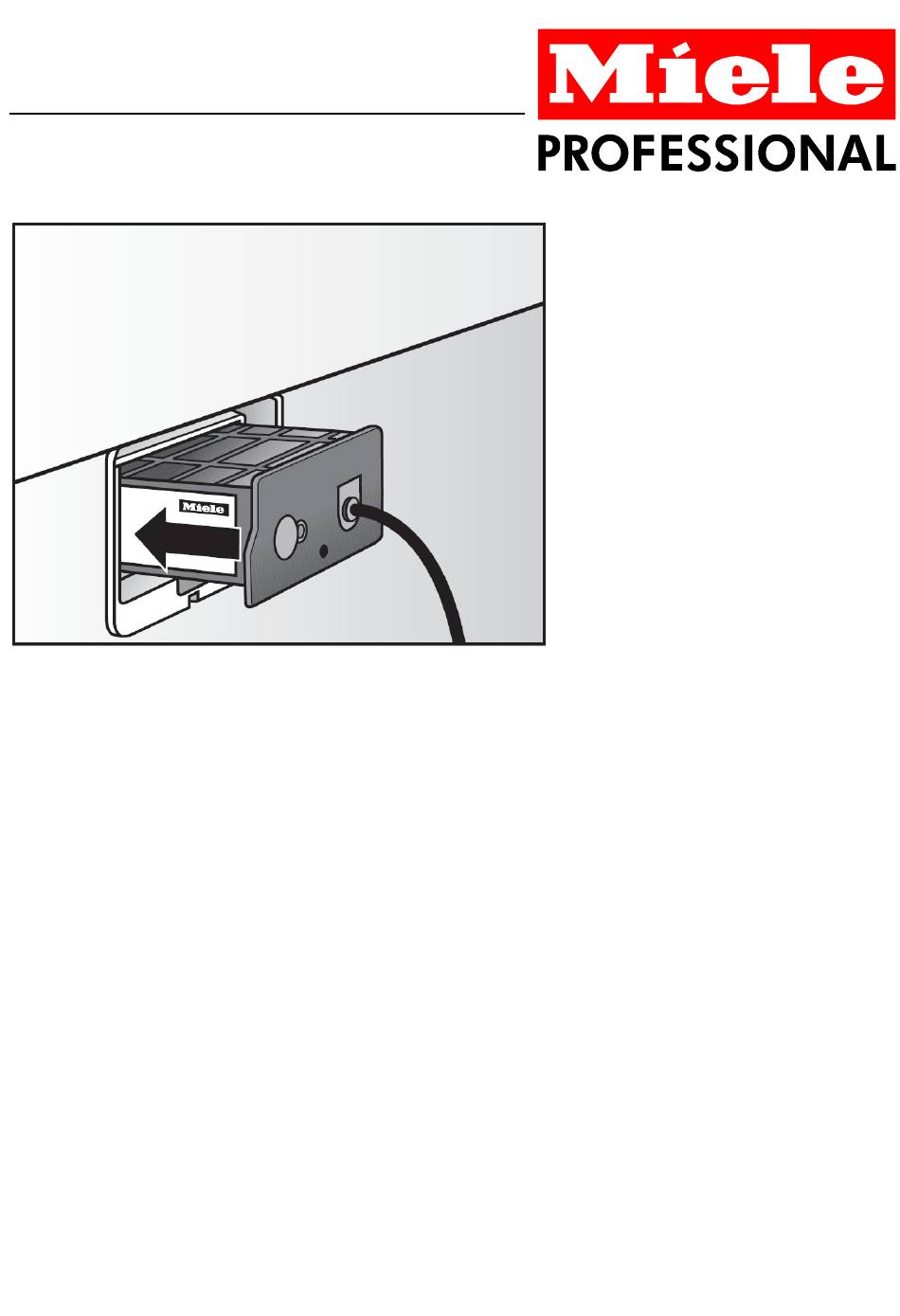

- Page 1 Operating instructions XKM RS232 en-GB To avoid the risk of accidents or damage to the appliance it is essential to read these instructions before it is installed, commissioned and used for the first time. M.-Nr. 07655210...
-
Page 2: Caring For The Environment
Disposal of the packing material Electrical and electronic appliances The packaging is designed to often contain materials which, if protect the XKM RS232 during handled or disposed of incorrectly transportation. Ensure that any could be potentially hazardous to plastic wrappings, bags etc. are... -
Page 3: Table Of Contents
Contents Contents Caring for the environment ..............2 Disposal of the packing material ............2 Disposing of your old appliance ............2 Contents ....................3 Warning and Safety instructions ............4 Correct application................4 Technical safety................4 Operation....................6 Button .................... -
Page 4: Warning And Safety Instructions
Before connecting the XKM RS232 module, ensure that the To avoid the risk of accidents connection data on the data plate and damage to the XKM RS232 (voltage and frequency) match please read these instructions the mains electricity supply. carefully before using it for the first time. - Page 5 Warning and Safety instructions Please ensure that the XKM RS232 data cable is fitted and laid correctly. The XKM RS232 module must be installed and connected by a suitably qualified engineer to ensure safety.
-
Page 6: Operation
Operation Oper ation Button The button on the XKM RS232 module is used to check that the installation was carried out correctly. A red LED control light will come on when the button is pressed to indicate that the module has been correctly installed and is ready for use. -
Page 7: Installation / Setting Up
Reconnect the Miele Professional appliance to the power supply. Press the XKM RS232 button to test that it is correctly installed. A red LED will come on to signal that the module is ready for use. -
Page 8: Technical Data
Technical data Tech nical dat an Power supply Minimum Typically Maximum Unit Voltage V AC Current 0.01 Frequency RS-232 interface Minimum Typically Maximum Unit Data rate 38 kBits Maximum cable length Metres Pin 2 RxD (input) SUB-D connector Pin 3 TxD (output) Pin 5 GND Temperature Minimum... - Page 9 Appendix...
- Page 10 Appendix...
- Page 11 Appendix...
- Page 12 United Kingdom: Miele Co. Ltd Fairacres, Marcham Road Abingdon, Oxon, OX14 1TW Tel: (01235) 554455 Fax: (01235) 554477 Customer Contact Centre Tel: (08707) 554466 E-mail: info@miele.co.uk Internet: www.miele.co.uk Alteration rights reserved M.-Nr. 07655210/02...
