Trixie natura 55961 Quick Start Manual

Pos. No. Description
Pos. 1 Side panel, nesting box, back
Pos. 2 Side panel, nesting box, front
Pos. 3 Side wall, nesting box
Pos. 4 Bottom plate, nesting box
Pos. 5 Partition wall, nesting box
Pos. 6 Wall, sleeping house, left
Pos. 7 Roof plate, nesting box
Pos. 8
Front part, sleeping house
Pos. 9
Back wall, sleeping house
Pos. 10 Wall, sleeping house, right
Pos. 11 Front part, enclosure
Pos. 12 Back part, enclosure
Pos. 13 Support for ramp
Pos. 14 Ramp
Pos. 15 Side wall, enclosure, right
Pos. 16 Chicken perch
Pos. 17
Drawer with plastic inlay
Pos. 18
Roof plate, left
Pos. 19 Roof plate, right
Pos. 20 Cover strip for roof plates
281019
Aufbauanleitung/Assembling Instruction/Instruction de montage

Part List

Pos. No.
Measurement Quantity Item No.
14.5 × 14 × 1 in.
1 55961-10 A
(374 × 360 × 30 mm)
14.5 × 14 × 1 in.
B
1 55961-11
(374 × 360 × 30 mm)
19.25 × 13.25 × 1 in.
C
1 55961-12
(490 × 342 × 30 mm)
19 × 13.75 × 0.75 in.
D
1 55961-13
(486 × 346 × 13 mm)
11.75 × 13.75 × 0.25 in.
1 55961-14
(300 × 348 × 8 mm)
25.75 × 40 × 1.75 in.
1 55961-20
(650 × 1020 × 45 mm)
22.5 × 14.75 × 0.75 in.
G
1 55961-15
(575 × 380 × 20 mm)
19.5 × 40 × 0.75 in.
1 55961-21 H
(500 × 1020 × 25 mm)
19.5 × 37.75 × 0.75 in.
1 55961-22
(500 × 960 × 25 mm)
25.5 × 24.5 × 2.5 in.
1 55961-23
(650 × 620 × 60 mm)
30.5 × 40 × 0.75 in.
1 55961-30
(780 × 1020 × 25 mm)
30.5 × 37.75 × 0.75 in.
1 55961-31
(780 × 960 × 25 mm)
9.25 × 1.75 × 0.75 in.
1 55961-40
Other parts already assembled (spare parts separately available)
(235 × 50 × 20 mm)
29 × 9.25 × 0.75 in.
Pos. No.
1 55961-41
(742 × 235 × 20 mm)
25.5 × 40 × 0.75 in.
1 55961-32
(650 × 1020 × 25 mm)
ø 1 × 17.5 in.
1 55961-42
(ø 30 × 456 mm)
16.5 × 26.5 × 1.75 in.
2 55961-43
(425 × 674 × 50 mm)
22.75 × 30.5 × 1.25 in.
1 55961-50
(580 × 775 × 35 mm)
30.5 × 30.5 × 1.25 in.
1 55961-51
(780 × 775 × 35 mm)
27.5 × 1.75 × 0.25 in.
1 55961-52
(700 × 50 × 8 mm)
TRIXIE Pet Products, Inc. · P.O. Box 101196 · Ft. Worth, TX 76185 · www.trixiepet.com
Description
Lenshead screw with nut
Thread screw with nut
Countersunk screw
Countersunk screw
E Countersunk screw
F Countersunk screw
Countersunk screw, black
Countersunk screw, black
I Check strap, left/right
J Lenshead screw
Description
Hinge for the left wooden door, incl. screws
Hinge for the right wire door and roof of the house, incl. screws
Hinge for roof of the nesting box, incl. screws

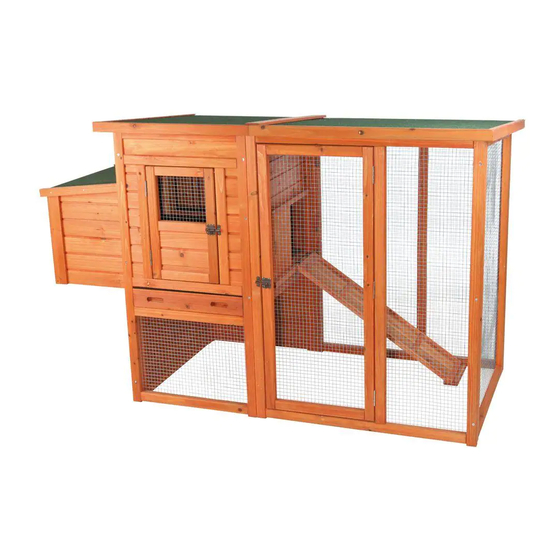

Chicken Hutch
Size Quantity
M6 × 2.25 in.
4+1
(M6 × 60 mm)
M6 × 1.75 in.
4+1
(M6 × 45 mm)
ø 0.25 × 2.25 in.
3+1
(ø 3.5 × 60 mm)
ø 0.25 × 1.75 in.
18+1
(ø 3.5 × 45 mm)
ø 0.25 × 0.75 in.
4+1
(ø 3 × 22 mm)
ø 0.25 × 0.5 in.
15+1
(ø 3 × 16 mm)
ø 0.25 × 0.5 in.
2+1
(ø 3 × 16 mm)
ø 0.25 × 0.75 in.
4+1
(ø 3.5 × 20 mm)
1 in.
plus 8 screws J for each 2/1
(28 mm)
ø 0.25 × 0.5 in.
24+1
(ø 4 × 16 mm)
Size Quantity
1.75 in.
2
(5 cm)
2.75 in.
8
(7.1 cm)
2.5 in.
2
(6.6 cm)
#55961
Item No.
55961-60
6235-60
6235-61
Item No.
6235-72
6235-74
6235-75
Made in China
