- Page 1 INSTRUCTION BOOK T H M P O W E R M E T E R t h m . b i k e T H M C l a v i c u l a S E P M...
- Page 2 Please bear in mind that your THM component is a lightweight construction manufactured from carbon – take this into account for assembly/maintenance work and when handling the product and proceed with caution! T H M P O W E R M E T E R...
-
Page 3: Table Of Contents
INTRODUCTION ......5 Preface ..............5 SAFETY ........6 Fundamental safety precaution ....... 6 Assembly & Maintenance ........6 On the road ............. 7 Transport & Storage ..........7 SPECIFICATIONS ...... 8 Delivery specifications ........8 Technical Specifications ........9 ASSEMBLY ......10 Get started ............ - Page 4 T H M P O W E R M E T E R...
-
Page 5: Introduction
IN TROD UCT ION Preface This manual is an integral part of your THM component and it provides you with information regarding the safe operation of your THM Powermeter. Read this manual carefully prior to assembling your THM component. Always read and observe all of the assembly and maintenance instructions in this manual, as well as those provided in the manuals of other manufacturers whose products are used on your bicycle (e.g. -
Page 6: Safety
Always observe all the specified tightening torques for the screw connections. − Only ever use original THM components which are available from your specialist − dealer or directly from THM. Never make any modifications to your THM components. -
Page 7: On The Road
− Do not use your THM-component at ambient temperatures below -10°C (14 °F). − Do not exceed the maximum rider weight for which your THM components have been − approved Do not perform jumps with your bicycle as this generates an enormous amount of −... -
Page 8: Specifications

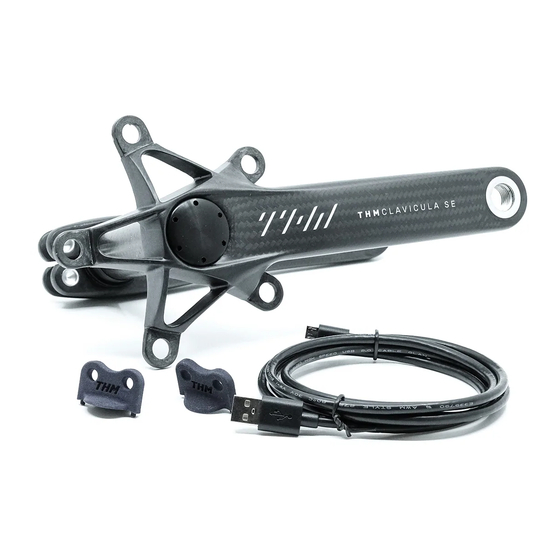

SP EC IF ICAT ION S Delivery specifications Powermeter Modul Protection lid (incl. O-ring) Instruction book Charging cable 1.8 m (USB to micro USB) T H M P O W E R M E T E R... -
Page 9: Technical Specifications
Technical Specifications Crankset CLAVICULA SE compact or standard Weight (±5%) 320 g compact; 329 g standard (without chainrings) Material Carbon Finish Matt or Glossy Diameter axle 30 mm BCD 5 bolt 110 mm or 130 mm Sensor position Integrated in the axle (measures leftside) Measurement Power, Cadence, Torque effectiveness, Pedal Smoothness (L) Power range 0 W –... -
Page 10: Assembly
• Now the crank is ready for connecting with your mobile ANT+ or Bluetooth device • To save energy the powermeter will switch off after 5 min if it is not connected to any • device. You can turn on the powermeter by turning the crankset several times. -
Page 11: Connecting To An Ant+ Device
Settings > Sensors > Add > … INFO To pair the powermeter it has to be turned on. (green led flashing) Calibration After the assembly it is important to proceed a calibration. Make sure that you do not touch the crankset/pedals and there is no other load on the crankarms while the calibration. -
Page 12: Zwatt App
The ZWATT APP can be found for Android in the Play store or for iOS in the iOS store. Temperature compensation The powermeter is equipped with an active temperature compensations. It will compensate a potential offset due to temperature changes. -
Page 13: Runtime And Charging
Runtime and Charging The powermeter is equipped with an integrated li ion rechargeable battery. The runtime is around 150 hours. The battery can be charged via any micro USB cable and standard 5 V USB charger. Use the delivered key (see p. 7) to loosen the protection lid. -
Page 14: Flight Mode
Reset If it is not possible to wake up your powermeter or you get faulty power values. Plug in an USB charger with a micro USB cable to reset the powermeter. T H M P O W E R M E T E R... -
Page 15: Legal
LE GAL Important product information Product Information: Product Name: THM Powermeter FCC ID: Contains FCC ID: O6R2398 IC ID: Contains IC: 3797A-2398 California Proposition 65: The enclosed hardware and its packaging contain chemicals the State of California has found to cause cancer, birth defects or reproductive harm. - Page 16 The product does not contain any user-serviceable parts. Unauthorized repairs or modifications could result in permanent damage to the equipment, and void your warranty and your authority to operate this device under Part 15 regulations. CAUTION! The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment.
- Page 17 public access to telecommunications and/or network services. This device may not be used for setting up outdoor radio links in France and in some areas the RF output power may be limited to 10 mW EIRP in the frequency range of 2454 – 2483.5 MHz. For detailed information the end-user should contact the national spectrum authority in France.
-
Page 18: Materials Defect Liability
Liability shall expire if repair work or any other work on the THM product has been conducted by unauthorized person. The same shall also apply to any direct or indirect... - Page 19 Reproduction or translation of this publication, in whole or in part, is not permitted without the written consent of the company THM Faserverbund-Technologie GmbH. All rights under the provisions of the copyright act are reserved.
- Page 20 080520TK2-1 User manual THM Powermeter THM Faserverbund-Technologie GmbH Am Sportplatz 3 D-24791 Alt Duvenstedt Germany info@thm.bike www.thm.bike t h m . b i k e T H M P O W E R M E T E R...
