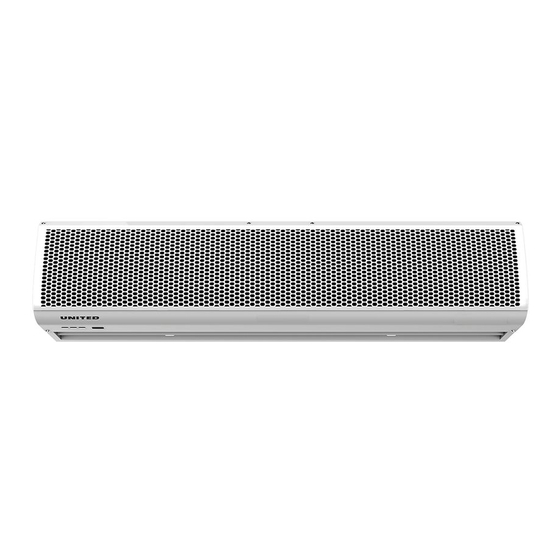

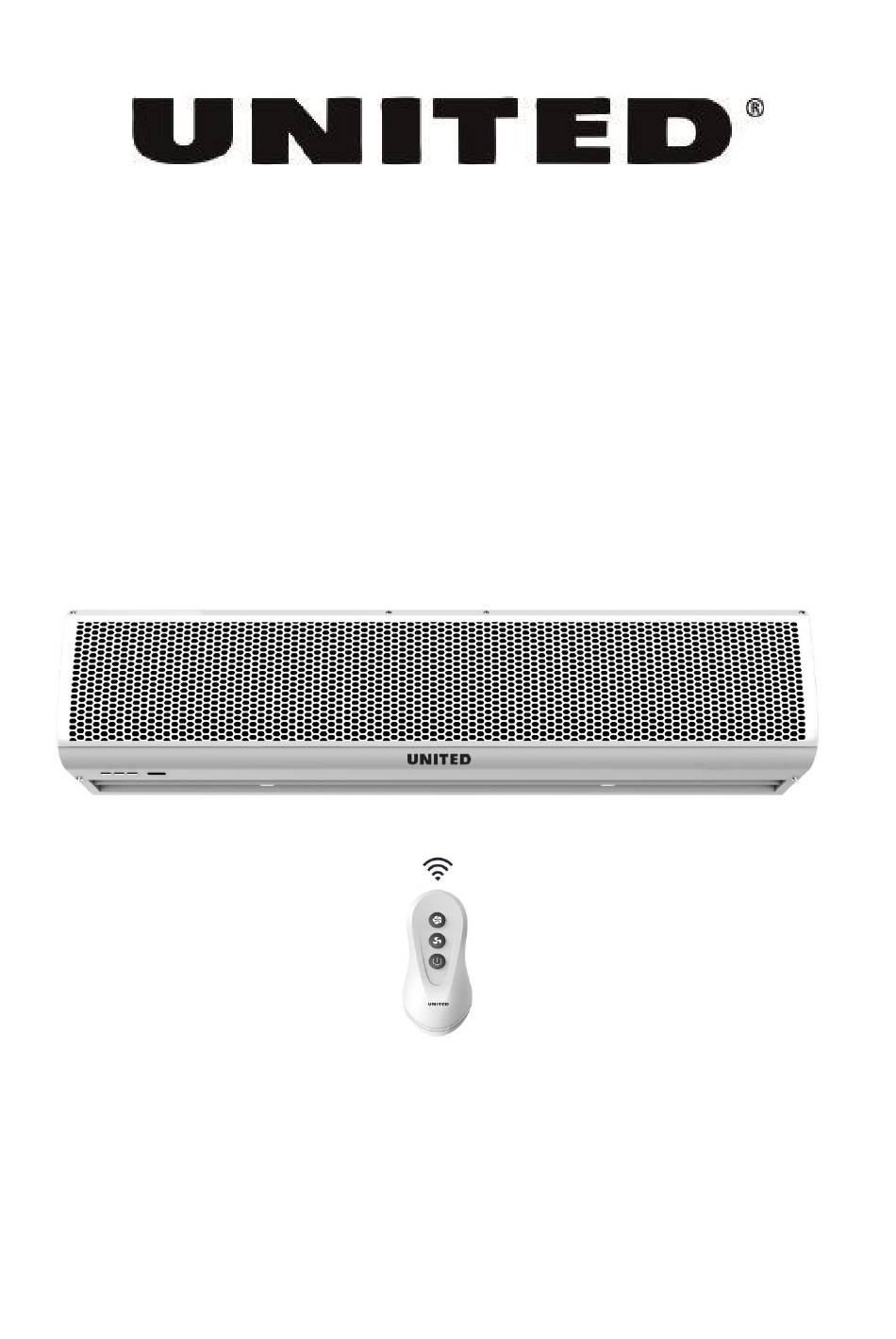

- Page 1 AIR CURTAIN INSTALLATION MANUAL ARU-8409 / ARU-8412 / ARU 8415 Thank you for purchasing this Air Curtain. Please read the instructions carefully before use.
- Page 2 1、PRODUCT INTRODUCTION As one of the new top-class products for modern decoration, air curtain is also matched with the air-conditioner. Usually you can find it installed at the entrances of supermarket, theater, meeting room, hotel, office room, and storeroom to prevent the dust, mosquito and warm air, and so on. 2、IDENTIFICATION &...
- Page 3 3.3 Don’t install the unit too low, no less than 3.4 When the entrance is wider than the unit, it 2.3 meters from the ground. is recommended to install two or more units in parallel. In this case, provide 20-40mm gaps between the units.
- Page 4 B、 Installing on the wooden wall 4.2.1 Fix the mounting plate in the proper 4.2.2 Same as the step 4.1.4 positions with tapping screw. C、 Hanging from the ceiling 4.3.1 Remove the mounting plate from 4.3.2 Fixing ceiling brackets as Fig. main body (Same as step 4.1.1) 4.3.3 Set the mounting plate on the ceiling 4.3.4 Do the same as step A to install the main...
- Page 5 5、 TECHNICAL PARAMETER Max input Max air Air volume Noise power speed Volt. Freq (dB) MODEL weight (m/s) (Hz) (V~) (Kg) ARU-8409 1400 1100 ARU-8412 220-240 1900 1600 ARU-8415 2500 2000 11.5 6、 ELECTRIC DIAGRAMS BLUE(BROWN/RED) BLUE(BROWN/RED) BLUE BROWN RECEIVER...
- Page 6 ErP Directive 09 / 125 / EC CE Marking: 93 / 68 / EEC RoHS Directive: 11 / 65 / EU & Delegating Directive (EU) 15 / 863 The detailed declaration of conformity can be found at: www.united-electronics.gr Importer: Kalliopi Karyda & Co, LP 87A, 17 Noemvriou str, P.C.
