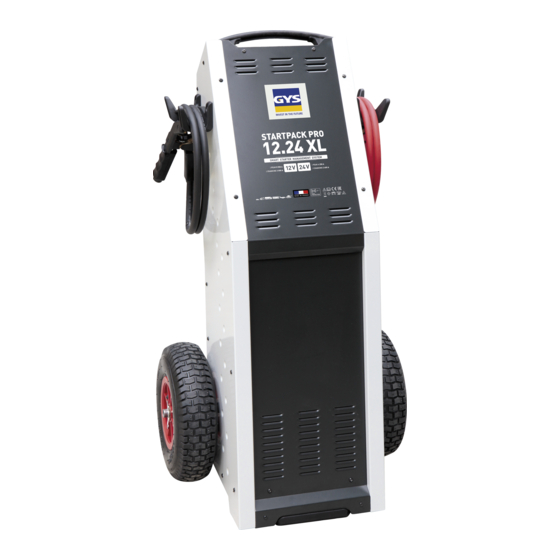

Summary of Contents for GYS STARTPACK PRO 12.24 XL
- Page 1 02-10 / 65-68 STARTPACK PRO 12.24 XL 11-19 / 65-68 20-28 / 65-68 29-37 / 65-68 38-46 / 65-68 47-56 / 65-68 57-64 / 65-68 www.gys.fr 73502_V3_15/10/2020...
- Page 2 Translation of the original instructions STARTPACK PRO 12.24 XL SAFETY INSTRUCTIONS This manual contains safety and operating instructions. Please read it carefully before using the device for the first time and keep it in a safe place for future reference. Read and understand the following safety recommendations before using or servicing the unit.
-
Page 3: Connection / Disconnection
Translation of the original instructions STARTPACK PRO 12.24 XL • In case of contact with the eyes or the skin, rinse with water imme- diately and seek medical attention as soon as possible. Connection / disconnection: • Disconnect the power supply before connecting/disconnecting the device to/from the battery. - Page 4 ASSEMBLY M5x16 The GYSFLASH 6.12 XL and the power supply cable can be fitted on the STARTPACK PRO 12.24 XL or kept sepa- rated (screws included). When using the STARTPACK PRO 12.24 XL outdoors, the power supply cable is not weather proof .
- Page 5 In case of polarity inversion, the STARTPACK PRO 12.24 XL will signal it by : buzzer + red LED light on. • Switch the STARTPACK PRO 12.24 XL on by pressing the power button for 3 secs. • The digital display shows the voltage of the vehicle’s battery.
- Page 6 • If the voltage > 11 V, the STARTPACK PRO 12.24 XL is ready to start : Proceed to the next step described below. • If the voltage is < 11 V, the STARTPACK PRO 12.24 XL signals a voltage error : - The vehicle battery is in a poor state of health.
- Page 7 Translation of the original instructions STARTPACK PRO 12.24 XL • Turn the key to your vehicle within this time. nb : si votre moteur ne démarre pas, attendre 3 minutes et réaliser une nouvelle tentative. A vehicle that does not start after the third attempt may have a problem other than a battery in poor condition: alternator, glow plug, etc.
- Page 8 STARTPACK PRO 12.24 XL USE IN CHARGER MODE (CHARGE INTERNAL BATTERIES) For the STARTPACK PRO 12.24 XL to be always operational and deliver maximum starting power, it is recommended to charge it after each use and to keep on charge until next used.
- Page 9 Translation of the original instructions STARTPACK PRO 12.24 XL INTERNAL BATTERIES REPLACEMENT Position the product horizontally : Unscrew the 16 metal casing screws marked with a dash : The batteries must be recycled in accordance Once the casing is removed, disconnect the with local laws and regulations.
-
Page 10: Troubleshooting
12.24 XL. BATTERY NOT COVERED BY THE WARRANTY The STARTPACK PRO 12.24 XL works with two 12V high performance batteries which MUST be recharged after each use. If this recommendation is not followed, the batteries may permanently deteriorate. For this reason, the STARTPACK PRO 12.24 XL batteries are not covered by the warranty. - Page 11 STARTPACK PRO 12.24 XL PLASTRON / CONTROL PANEL STICKER / FRONTSEITE / TECLADO / ПАНЕЛЬ УПРАВЛЕНИЯ / VOORS- TUK / TASTIERA DI COMMANDO N° Bouton power Power button Ein/Aus-Taste Botón power Кнопка power Knop power Tasto power Fehler- Voyant erreur...
- Page 12 STARTPACK PRO 12.24 XL PIÈCES DÉTACHÉES / SPARE PARTS / ERSATZTEILE / PIEZAS DE RECAMBIO / ЭЛЕКТРИЧЕСКАЯ СХЕМА / RESERVE ONDERDELEN / PEZZI DI RICAMBIO N° Reference Аккумуляторные Batteries Batteries Batterien Baterías Accu's Batterie 53075 батареи Roues Wheels Ruedas Колёса...
- Page 13 STARTPACK PRO 12.24 XL SPECIFICATION TECHNIQUES / TECHNICAL SPECIFICATIONS / TECHNISCHE DATEN / ESPECIFICA- CIONES TÉCNICAS / ТЕХНИЧЕСКИЕ ХАРАКТЕРИСТИКИ / TECHNISCHE SPECIFICATIES / SPECIFICHE TECNICHE Tension de Charging Tensión de Напряжение Tensione di Ladespannung Laadspanning 14,6 V à 25°C charge...
- Page 14 GYS SAS 1, rue de la Croix des Landes CS 54159 53941 SAINT-BERTHEVIN Cedex France...
