Switching on and off
Dimming
E Schaudt GmbH, Elektrotechnik und Apparatebau, Planckstraße 8, 88677 Markdorf, Germany, Tel. +49 7544 9577-0, Fax +49 7544 9577-29, www.schaudt- -gmbh.de
822.381 BAMA / EN

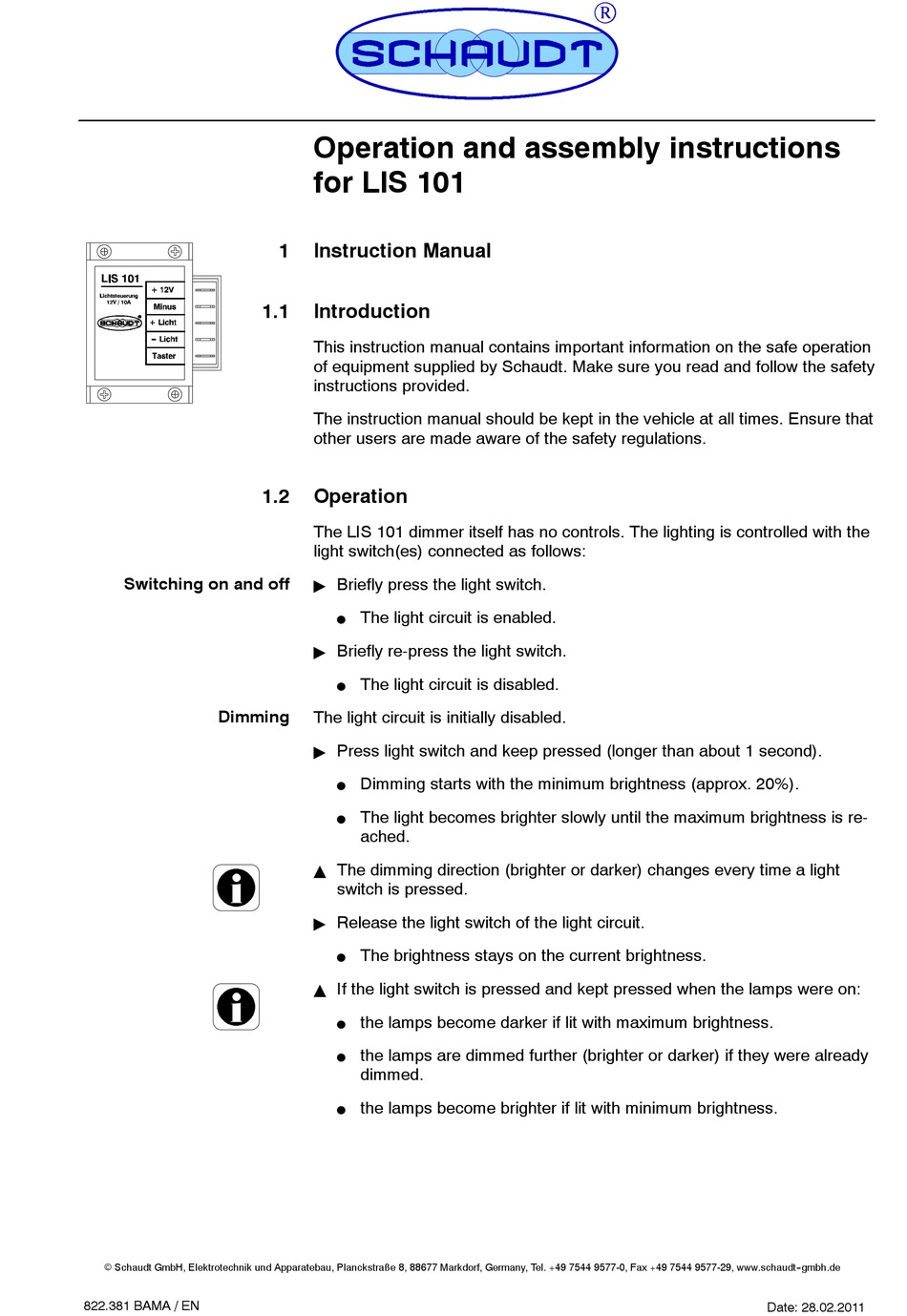

Operation and assembly instructions
for LIS 101
1 Instruction Manual
1.1 Introduction
This instruction manual contains important information on the safe operation
of equipment supplied by Schaudt. Make sure you read and follow the safety
instructions provided.
The instruction manual should be kept in the vehicle at all times. Ensure that
other users are made aware of the safety regulations.
1.2 Operation
The LIS 101 dimmer itself has no controls. The lighting is controlled with the
light switch(es) connected as follows:
Briefly press the light switch.
"
The light circuit is enabled.
F
Briefly re-press the light switch.
"
The light circuit is disabled.
F
The light circuit is initially disabled.
Press light switch and keep pressed (longer than about 1 second).
"
Dimming starts with the minimum brightness (approx. 20%).
F
The light becomes brighter slowly until the maximum brightness is re-
F
ached.
The dimming direction (brighter or darker) changes every time a light
Y
switch is pressed.
Release the light switch of the light circuit.
"
The brightness stays on the current brightness.
F
If the light switch is pressed and kept pressed when the lamps were on:
Y
the lamps become darker if lit with maximum brightness.
F
the lamps are dimmed further (brighter or darker) if they were already
F
dimmed.
the lamps become brighter if lit with minimum brightness.
F
Date: 28.02.2011
