SYMPTOM: The displays of the console do not
function properly

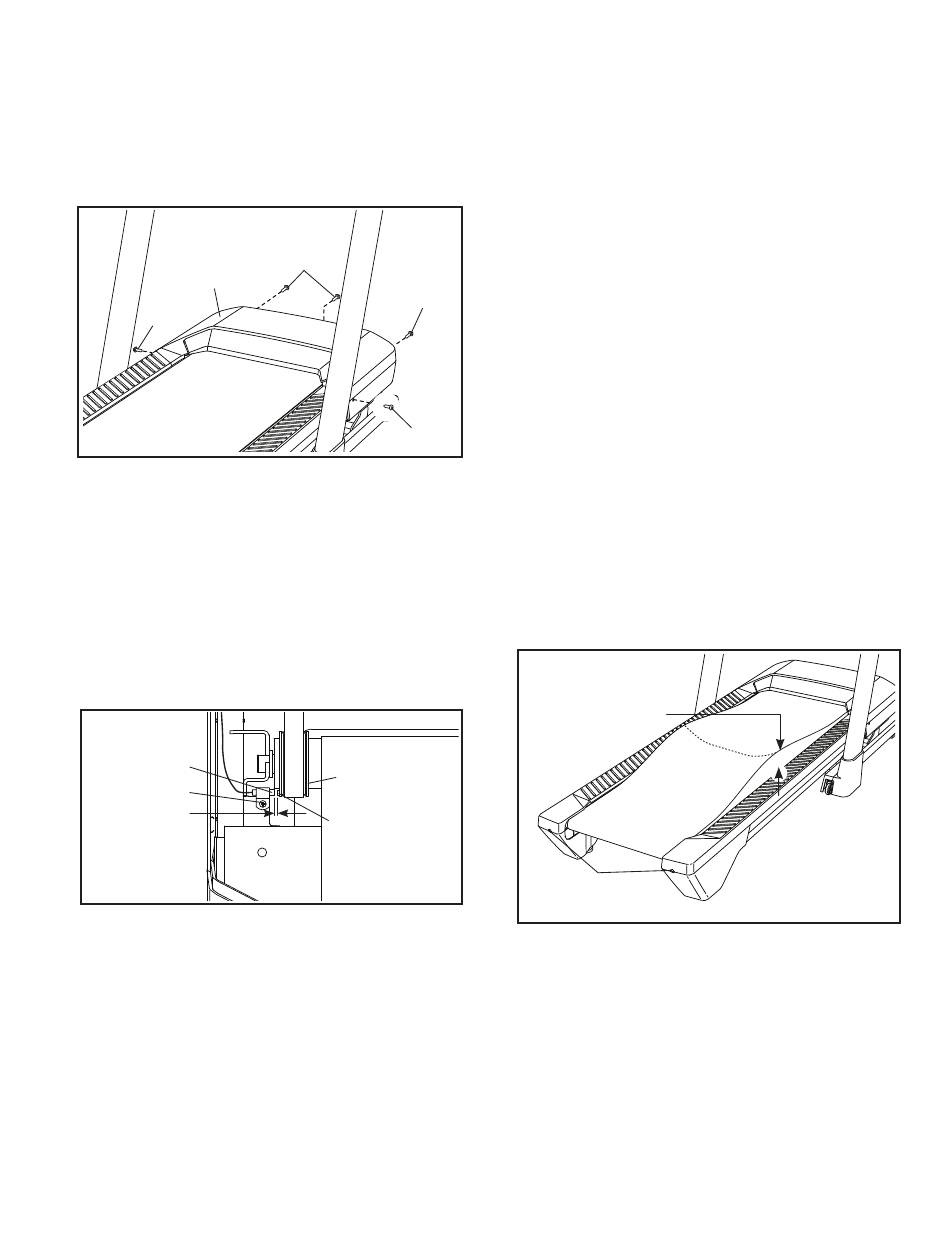

a. If the console does not record speed or distance
correctly, fi rst remove the key from the console and
UNPLUG THE POWER CORD. Next, remove the
fi ve #8 x 3/4" Pan Head Screw (18), and carefully
pivot off the Motor Hood (68).
a
68
18
Next, locate the Reed Switch (113) and the Magnet
(115) on the left side of the Pulley (54). Turn the
Pulley until the Magnet is aligned with the Reed
Switch. Make sure that the gap between the
Magnet and the Reed Switch is about 3 mm
(1/8 in.). If necessary, loosen the #8 x 3/4" Screw
(5), move the Reed Switch slightly, and then
retighten the Screw. Reattach the Motor Hood, and
walk on the treadmill for a few minutes to check for
a correct speed reading.
Top
View
113
5
3 mm
18
18
18
54
115
30
SYMPTOM: The treadmill will not connect to the
wireless network
a. Make sure that the wireless settings on the console
are correct (see page 25).
b. Make sure that the settings for your wireless net-
work are correct.
c. If you still have questions, see the front cover of
this manual.
SYMPTOM: The walking belt slows when walked on
a. If an extension cord is needed, use only a 3-con-
ductor, 14-gauge (2 mm
than 5 ft. (1.5 m).
b. If the walking belt is overtightened, treadmill
performance may decrease and the walking belt
may become damaged. Remove the key and
UNPLUG THE POWER CORD. Using the hex key,
turn both idler roller screws (C) counterclockwise,
1/4 of a turn. When the walking belt is properly
tightened, you should be able to lift each edge of
the walking belt 2 to 3 in. (5 to 7 cm) off the walking
platform. Be careful to keep the walking belt
centered. Then, plug in the power cord, insert the
key, and walk on the treadmill for a few minutes.
Repeat until the walking belt is properly tightened.
b
2–3 in.
C
2 ) cord that is no longer
