3. Operation Procedure
Connect the probe, operate the main unit, and adjust the image
1)
according to the instructions given in the operation manual for
the main unit.

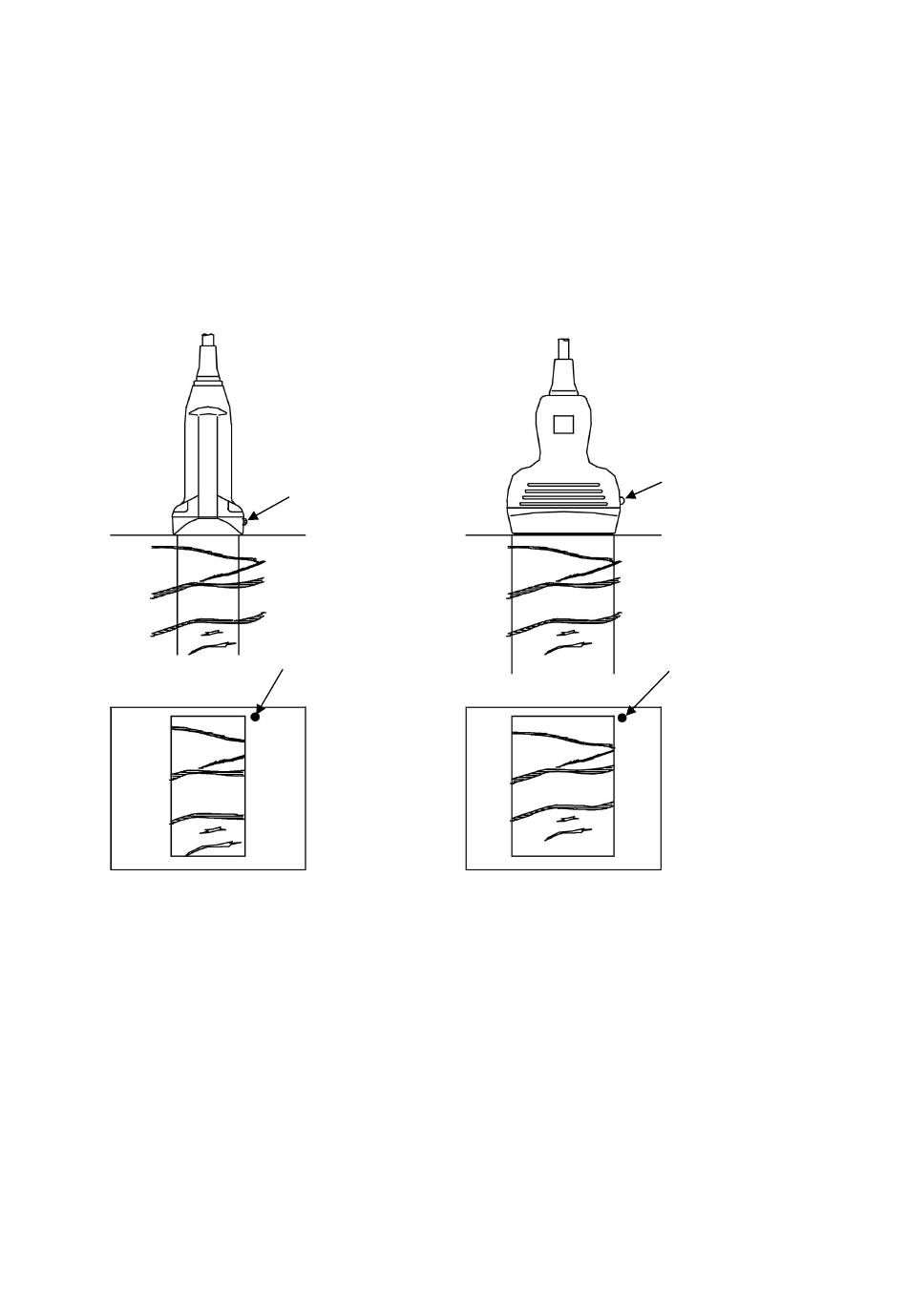

Relationship between direction of the probe and the image is
2)
shown in Fig. 3. The right-left orientation mark on the image
indicates the direction of the index mark on the probe.
(EUP-L53S,L52)
Fig. 3
Relationship between Index Mark and Right-left Orientation Mark
When using under sterile condition, protect the probe by using
3)
covers. Some Latex material creates allergic reaction. Please
use allergy free material covers.
Caution in case of wiping off the ultrasound jelly or cleaning
4)
the surface of the acoustic lens.
Index mark
Right-left
orientation mark
-8-
(EUP-L53, L53L)
Index mark
Right-left
orientation mark
Q1E-EP0348
