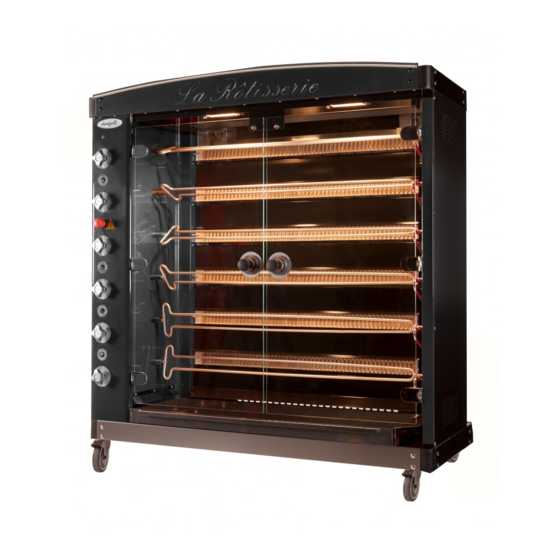

INSTRUCTION MANUAL
PROFESSIONAL ROTISSERIE
FOR YOUR SAFETY
Do not store or use gasoline or other flammable
vapors or liquids in the vicinity of this or any
other appliance.
WARNING
Improper installation, adjustment, alteration,
service or maintenance can cause property
damage, injury or death. Read the installation,
operating and maintenance instructions
thoroughly before installing or servicing this
equipment.
hljjljj
MAG 4 GAZ
MAG 6 GAZ
MAG 8 GAZ
INSTRUCTION MANUAL ROTISSERIE MAG GAZ
SEPTEMBER 2011
1
MESURE DE SÉCURITÉ
Ne pas entreposer ni utiliser d'essence ni autres
vapeurs ou liquides inflammables à proximité de
cet appareil ou de tout autre appareil.
AVERTISSEMENT
L'installation, le réglage, la modification, la
réparation ou l'entretien incorrect de cet appareil
peut causer des dommages matériels, des
blessures ou la mort. Lire attentivement les
instructions d'installation, de fonctionnement et
d'entretien avant de procéder à son installation
ou son entretien.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MAG 4 GAZ and is the answer not in the manual?

Questions and answers

Related Manuals for DOREGRILL MAG 4 GAZ

Summary of Contents for DOREGRILL MAG 4 GAZ

  • Page 1 INSTRUCTION MANUAL PROFESSIONAL ROTISSERIE MAG 4 GAZ MAG 6 GAZ MAG 8 GAZ FOR YOUR SAFETY MESURE DE SÉCURITÉ Ne pas entreposer ni utiliser d’essence ni autres Do not store or use gasoline or other flammable vapors or liquids in the vicinity of this or any vapeurs ou liquides inflammables à...
  • Page 2 Our technical team will always be available to guide you for installation and answer any questions you may have. In addittion we welcome your comments and suggestions. Do not hesitate to contact us or visit our website : www.doregrill.com www.doregrill.com DOREGRILL S.A.S.

  • Page 3: Table Of Contents

    SUMMARY GENERALITY ............................. 6 ................................. 7 ARKING ........................... 8 MPORTANCE OFTHE MANUAL .............................. 8 L RIGHTS RESERVED ..............................8 ENERAL ARNING ................................8 ARRANTY SHIPPING AND HANDLING ........................ 9 ............................9 HIPPING AND ELIVERY ..........................9 NPACKING AND MANUTENTION TECHNICAL DESCRIPTION ......................10 ............................
  • Page 4 10 MAINTENANCE / CUSTOMER SERVICE .................... 25 10.1 ..............................26 OUBLE SHOOTING 10.2 ..............................26 PECIFIC REPAIRS 10.2.1 Bulb Change ........................26 10.2.2 Opening of the technical Unit .................... 27 10.2.3 Change of the spit rotation ....................27 10.2.4 Change of Injectors ......................27 11 COMPONENTS CHART GRAPHICS ....................
  • Page 5 User Manual INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...

  • Page 6: Generality

    Name & address of the manufacturer - N° de série (MATR) Marking ANS Z83.11b-2009/CSA 1.8b-2009 - Equipment Model (MOD) year of Manufacture SAS DOREGRILL Parc d’activité du moulin USA/CANADA 12 Rue du moulin 44880 SAUTRON FRANCE www.doregrill.com...
  • Page 7 INSTRUCTIONS COOK Lighting the pilot: Press the wheel of the valve and turn left on symbol “ “. When the pilot is lit, wait a few seconds for the thermocouple is hit (security). Then release the wheel of the valve. Lighting of burner: Turn left the wheel of the valve, burner is going to be red.

  • Page 8: Importance Ofthe Manual

    Importance of the Manual This notice has been made for the installer as well as the user of DOREGRILL in order to give them all the necessary information to operate the rotisserie at its best and to prolong le life of the equipment.

  • Page 9: Shipping And Handling

    SHIPPING AND HANDLING Shipping and delivery Our Rotisseries are adjusted, tested and controlled in our facilities. The radiant burners are preheated in order to simplify the starting process. There are carefully packed to arrive in good condition. The rotisserie is delivered on palette strapped and shrinks wrapped. The machine is protected in a carton box with plastic bubble, polystyrene and foam for shipping.

  • Page 10: Technical Description

    TECHNICAL DESCRIPTION General Description The rotisserie is mounted on a wheel base carriage (1) with casters: - 4 casters with brakes for the Mag4 / MAG 6 and MAG 8 Assembled in one main structure in 4 parts: - Brushed Stainless Steel Base (2) - Enameled roof top (3), reinforced with a stainless steel belt.

  • Page 11: Classification

    Classification Components are listed in the rotisserie INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...

  • Page 12: Panel Control

    Panel Control Power on indicator Gas valve Level 8 Switch Motor Level 8 Gas Valve Level 7 Gas valve Level 6 Switch Motor Level 6-5 Gas valve Level 5 Emegency Stop button Gas Valve Level4 Switch Motor Level 4-3 Gas Valve Level 3 Gas Valve Level 2...

  • Page 13: Rotisserie Measurement

    Rotisserie Measurement Voir Chapiter 7 « Installer – Technical Information » Technical information See Chapiter 7 « Installer –Technical Information » Ultimate Usage Our rotisseries are made to roast meat and poultry prepared in an hot environment and professional caterer in the food industry. Wiring Diagram See Chap 10 «...
  • Page 14  Switches for motors Each switch controls two spits. These two spits rotate in opposite direction, so they cannot block each other when cooking bigger items (all spits on ‘’even levels’’ rotate in on direction and all spits on ‘’odd levels’’ rotate in the opposite direction) Start spit rotation : Push switch up.

  • Page 15: Implementation

    Implementation IMPORTANT Do not put anything on the top of the rotisserie or obstruct the exhaust Device  Preparation Make sure the rotisserie is plugged in and power is on Make sure the rotisserie is hooked up and gas is on Turn on the light (if desired) Put at least 1’’...

  • Page 16: Cleaning And Maintenance

    CLEANING AND MAINTENANCE IMPORTANT: before cleaning, make sure the burners are turned off and unplug the rotisserie. Never use a pressure washer. Use a protective apron, gloves and eyes protection. Use only chemicals “special oven without caustic “and “certified food”. Do not spray on the burners.

  • Page 17: Main Reasons Of Glass Breakage

    MAIN REASONS OF GLASS BREAKAGE Thermal shock There cannot be a difference of more than 176°F between two spots of the glass doors. If that happens, the breaking point is reached and the glass doors might then shatter instantaneously (For example: cleaning of hot door with cold towel) Hits When a glass door is inadvertently hit, especially on the edge, a tiny piece of glass might get off and therefore the molecular balance is broken.
  • Page 18 Installer manual INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...

  • Page 19: Technical Specification

    TECHNICAL SPECIFICATION MAG 4 GAZ MAG 6 GAZ MAG 8 GAZ DIMENSIONS Width 58 ⅛’’ 58 ⅛’’ 58 ⅛’’ Depth Weight (empty) 312.4 lb. 462 lb. 539 lb. Width 58 ⅛’’ 58 ⅛’’ 58 ⅛’’ Depth Weight (empty) 312.4 lb.

  • Page 20: Installation

    Gas and pressure table Country France Category II 2E + EP Propane Pressure (WC) 8” WC 15” WC Power of unit-burners First position Second position Ø Injector (full) (slow) Propane 15” WC Ø 1,35 mm 17,742 BTU/hr 12,966 BTU/hr NAT 8” WC Ø...
  • Page 21 Angle Hood 1 00 1 00 1 50 1 50 1 470 Wall Hood: 1 00 1 50 1 50 1 50 1 470 Center Hood 1 50 1 50 1 50 1 50 INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...

  • Page 22: General Information

    Gas Connection IMPORTANT: Each rotisserie is set up at the factory for a certain type of gas. If you need to change the gas type settings, the injectors of each radiant must be changed as well as the gas pressure regulator in the back of the rotisserie. Conversion kit must be ordered from the factory (See page 31: “changing injectors’’) 9.5.1 General Information...
  • Page 23 Natural GAZ – Value in kWPCI with 8 WC Diameter 1/2" Diameter 3/4" Diameter 1" R= 90 mm R = 110 mm R = 130 mm Length Without With Without With Without With PUSHGAZ PUSHGAZ PUSHGAZ PUSHGAZ PUSHGAZ PUSHGAZ 0,50 m 25,3 21,5 93,6...
  • Page 24 MAINTENANCE INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...

  • Page 25: Maintenance / Customer Service

    10 MAINTENANCE / CUSTOMER SERVICE All Services on the Rotisserie must be done by a Qualified Technician 10.1 Trouble shooting This section will help to solve minor problems without the presence of a technician Trouble Shooting Possible Problem What to do GAS line - The main shut off gas valve - Open the main shut off gas valve...

  • Page 26: Touble Shooting

    Touble Shooting Possible Problem What to do Electrical Circuit No Power Turn power on and Breakers on Not plugged Plug It Defective Light Change bulb Power Light Off -Defective bulb Change Bulb Defective electrical connexion Call electrician Interior Light off Defective switch Call electrician -Defective electrical connexion...

  • Page 27: Opening Of The Technical Unit

    Turn off and unplug the rotisserie Loosen bolts with a wrench. Remove bolts and washers Slide and remove glass protection Remove old light bulb Put new one in. NEVER touch the new bulb with your fingers: always use a soft protection Once the bulb has installed, put back all protection the glass protection.
  • Page 28 Open the technical block after taking the nessesary precaution for the gas line (shut off all valves and unplung the power source Loosen the union on the injector’s base, and loosen the screw in front of the burner. Then remove the injector After selecting the correct injector (see chart hereafter), put it on, tighten screw in front of burner and tighten union on the injectors base...

  • Page 29: Components Chart Graphics

    Components Chart Graphic INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...

  • Page 30: Chart 2 - Control Panel

    11 COMPONENTS CHART GRAPHIC 11.1 Graphic 1 – Base et Cart AC 1 INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
  • Page 31 Planche 1 – Base and Cart AC 1 Quantity for Mark Reference Designation N° certificate MAG 8 GAS Base Tubular Chassis 40 x 40 Plastic Corner Circular Caster, with brake diam 100 INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
  • Page 32 Contol Panel 11.2 Planche 2 – INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
  • Page 33 Planche 2 – Control Panel Quantity for Mark Reference Designation N° certificate MAG 8 GAS CC600 Cable source 3G 2.5 CC600 02041403 ME 3 Terminal Bloc Ground Wire section 1.5 Ormerin Cable NVAS Silicable style 3513 Fuse coil Nylon cable gland Pilot Switch motors 0/1 Emergency button (coup de poing)

  • Page 34: Chart 3 - Right Side & Doors

    1 3 1 3 Planche 3 – Right side and Doors INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
  • Page 35 Quantity for Mark Reference Designation N° certificate MAG 8 GAS Right Outside Panel Spit Inside Panel Omega Right inside Panel Glass n°132 Hinge Plate Isolating Washer Protective Glass Spacer glace Hinge pin Hinge component 1 Hinge component 2 Hinge component 3 Hinge screw Door Magnet Cover for Magnet...

  • Page 36: Chart 4 - Roof

    11.4 Planche 4 – Roof INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
  • Page 37 Planche 4 – Roof Quantity for Mark Reference Designation N° certificate MAG 8 GAS Top Plate Curved Front sign Plate Rounded Bar Glass sign Support glass Sign Corners Right side Plate Top right side plate Top Back plate Back Plate Left louver Plave Left side Plate Front Louver plate...

  • Page 38: Chart 5 - Circuit Line

    11.5 Planche 5 – Circuit line 29 31 INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
  • Page 39 Planche 5 – circuit line Quantity for Mark Reference Designation N° certificate MAG 8 GAS Gas Valve Staight Connector Gas regulator Gas Pipe Gas Knob Gas Screw Valve Gas Valve Bottom Deflector Middle Deflector Burner Shield Burner Support Burner U pour CI Spit Oméga support radiant Top Deflector L shape support...

  • Page 40: Chart 6 - Spit System ,Support And Sauce Pan

    11.6 Planche 6 – Spit system, support and sauce PAN INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
  • Page 41 Planche 6 – Spit sytem and support-Sauce Pan Quantity for Mark Reference Designation N° certificate MAG 8 GAS Motor Isolating plate Motor Plate Spring Intermediary Plate Spit Spit holder Motor supports diameter 3/8” Motor support holder 3 ‘’1/8 Holder Motor Support 2’2/4 Sauce Pan Label Sauce Pan...

  • Page 42: Chart 7 - Electrical Chart Mag 8 Gas Usa

    11.7 Planche 7 – Electrical Chart MAG 8 GAZ USA INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
  • Page 43 11.8 Planche 8 - Certification Gas INSTRUCTION MANUAL ROTISSERIE MAG GAZ SEPTEMBER 2011...
