- Page 1 FICHA TÉCNICA 30 200-120 Ultimate 300 std. 120V 60Hz 30 200-240 Ultimate 300 std. 240V 50Hz 30 201-120 Ultimate 300 DMX 120V 60Hz 30 201-240 Ultimate 300 DMX 240V 50Hz OWNER´S MANUAL SERVICE MANUAL...
- Page 2 CAUTION ! IMPORTANT! Read all cautions and warnings prior to assembly, mounting and operating this equipment. IMPORTANT ! Prière de lire toutes les précautions et les avertissements avant l’assemblage, le montage et de faire fonctionner cet équipement. WICHTIG ! Lesen Sie alle Warnungen sorgfältig bevor Sie das Gerät zusammenbauen, installieren und benutzen.
-
Page 3: Table Of Contents
4. CE-CONFORMITY 5. INSTALLATION PLANNING AND PRECAUTIONS 6. OPERATION Operate as one unit Operate as separate units Normal Operation Operation – Standard model without DMX control Operation – DMX model 7. SERVICE, MAINTENANCE & REPAIR SWEFOG WORLD-WIDE WARRANTY SERVICE MANUAL... -
Page 4: How To Use This Guide

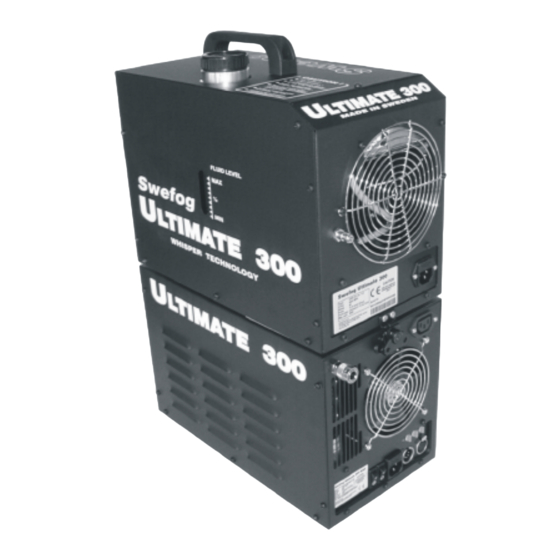

For your safety, it is important that you read this manual thoroughly before you operate the Ultimate 300. This manual describes how to unpack, plan for, set up and operate the Ultimate 300. It also lists important safety precautions and a separate service & maintenance manual for technical support. -
Page 5: Introduction
For the best results, use only original Swefog Ultimate haze fluid in the machine. Use of any other fluid will void the warranty. -
Page 6: Safety Precautions
NOTE: The fluid is made with mineral-based oil and may cause allergic reactions. Make sure that those subjected to haze and fluid are not allergic to the substance. The original Swefog fluid is made with medical grade chemicals only, and is non-toxic. But always ensure the haze will not cause inconvenience. -
Page 7: Ce-Conformity
If haze & compressor units are stacked and used as one unit, ensure that the butterfly catches are properly locked. 4. CE-CONFORMITY (230V models only): We, Swefog, declare that the appliance described in this manual conforms to the EEC machine directive. Complete documents may be required from Swefog. 5. INSTALLATION PLANNING AND PRECAUTIONS:... -
Page 8: Operation
6. OPERATION: Standard control panel: Mains fuse (slow blow) 115V: 8 Amp. 230V: 4 Amp. IEC mains inlet Mains switch DMX control panel: Standard control panel DMX address 100´s DMX address 10´s DMX address units DMX operate LED XLR DMX out XLR DMX in Mains fuse (slow blow) 115V: 8 Amp. -
Page 9: Normal Operation
Place the machine on a level surface. • Remove the fill cap on top of the machine. Fill with original “Swefog Ultimate” fluid. Fill slowly. DO NOT overfill. NEVER exceed the ”max” fluid level. Close the fill cap before switching on the machine. -
Page 10: Operation - Dmx Model
DMX. Remote controlled from external sources: Ultimate 300 – standard or DMX models – can be controlled with the use of external control units. EXAMPLE Problem: A standard model (without integrated DMX) must be controlled from a DMX light desk. -
Page 11: Service, Maintenance & Repair
If you have great know-how and technical experience of cracker hazers electronics and pneumatics, follow the service & maintenance manual (included with this manual). If not, refer servicing to qualified technical personnel, or contact a preferred Swefog dealer. Preferred dealers have qualified service technicians, and will be able to perform most service works. -
Page 12: Swefog World-Wide Warranty
Returning an item for repair covered by warranty Before any units are sent to Swefog for repair, a Return Form has to be filled out. This form can be obtained by contacting Swefog info@swefog.com or can be downloaded from our website www.swefog.com.
