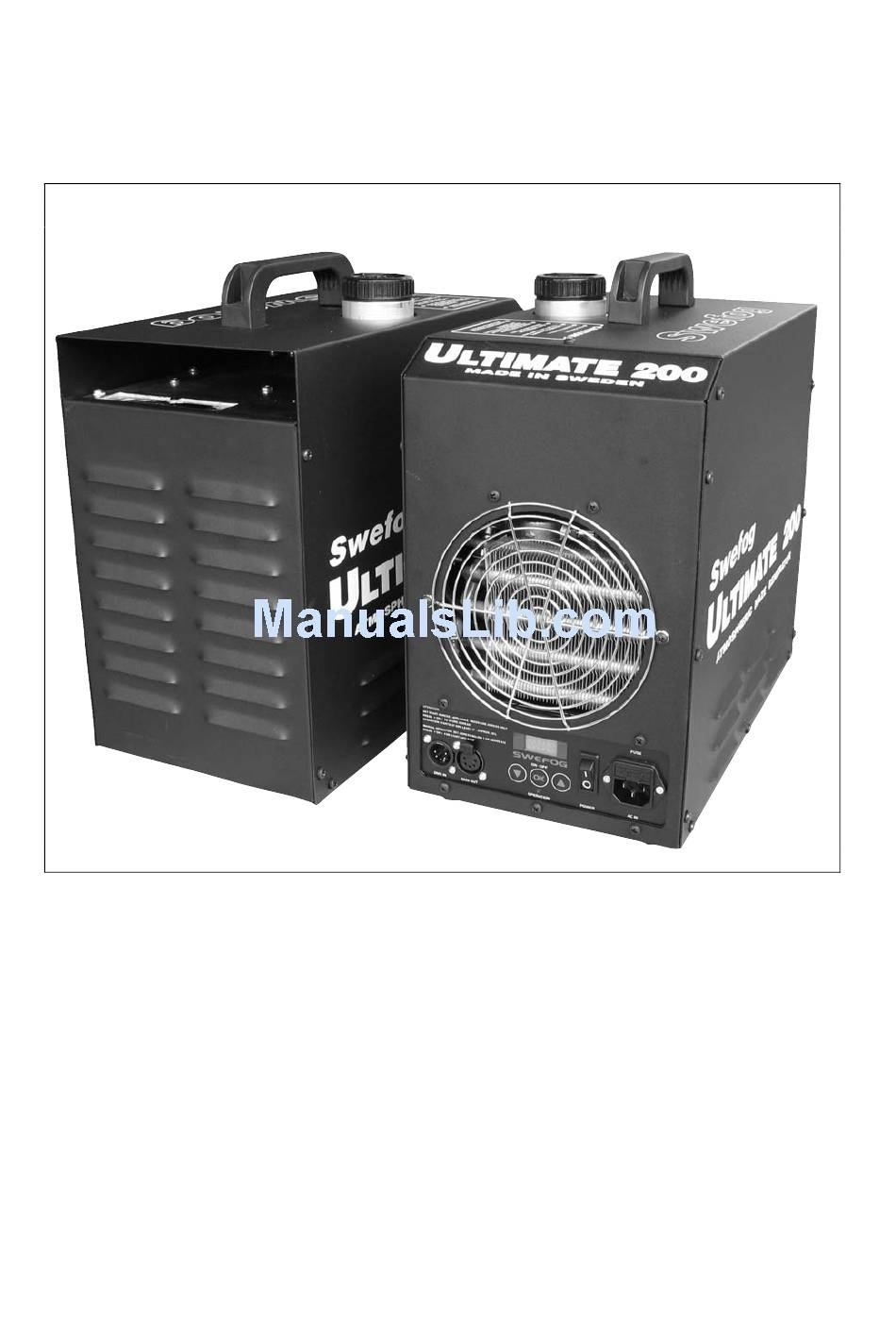

- Page 1 LTIMATE 200 ATMOSPHERIC HAZE GENERATOR ■ 20 200-120 Ultimate 200 std. 115V 60Hz ■ 20 200-240 Ultimate 200 std. 240V 50Hz ■ 20 201-120 Ultimate 200 DMX 120V 60Hz ■ 20 201-240 Ultimate 200 DMX 240V 50Hz OWNER´S MANUAL STANDARD & DMX VERSIONS...
- Page 2 CAUTION ! IMPORTANT! Read all cautions and warnings prior to assembly, mounting and operating this equipment. IMPORTANT ! Prière de lire toutes les précautions et les avertissements avant l’assemblage, le montage et de faire fonctionner cet équipement. WICHTIG ! Lesen Sie alle Warnungen sorgfältig bevor Sie das Gerät zusammenbauen, installieren und benutzen.
-
Page 3: Table Of Contents
Operation – Standard model without DMX: Operation – DMX model 7. SERVICE, MAINTENANCE & REPAIR SWEFOG WORLD-WIDE WARRANTY Manufactured by: SWEFOG TECHNOLOGY GROUP AB P.O. BOX 106 SE-682 23 FILIPSTAD, SWEDEN. Tel: +46 590 122 50 Fax: +46 590 122 09 e-mail: info@swefog.com... -
Page 4: How To Use This Guide
1. Read chapter 3: “safety precautions”. 2. Place machine on a level surface. 3. Fill Swefog Ultimate haze fluid in the tank, fill slowly, and do NOT exceed the “max” level indicator ! 4. Connect to a mains outlet with earth lead. -
Page 5: Introduction
However, to keep your machine functioning like new for its entire life, it is important to follow the instructions in this manual and to have regular maintenance of the hazer. For the best results, use only original Swefog Ultimate haze fluid in the machine. Use of any other fluid will void the warranty. - Page 6 The original Swefog fluid is made with medical grade chemicals only, and is non- toxic. But always ensure the haze will not cause inconvenience. • Connect to mains outlet with earth. Use a cable with earth. Check for correct voltage and/or mains frequency (see machine label).
-
Page 7: Ce-Conformity
4. CE-CONFORMITY (230V models only): We, Swefog, declare that the appliance described in this manual conforms to the EEC machine directive. Complete documents may be required from Swefog. 5. INSTALLATION PLANNING AND PRECAUTIONS: According to a report commissioned by Actors’... -
Page 8: Operation
• Place the machine on a level surface. • Remove the fill cap on top of the machine. Fill with original “Swefog Ultimate” fluid. Fill slowly. DO NOT overfill. NEVER exceed the ”max” fluid level. Close the fill cap before switching on the machine. -
Page 9: Operation - Standard Model Without Dmx
6.2 OPERATION - Standard model without DMX control: • The machine is switched on / off with the mains switch. • The haze output is regulated by the running time of the machine. The longer it operates, the more haze is produced. Remote control from external power sources - Ultimate 200 standard (w/o DMX) only: Ultimate 200 standard model (without DMX) can be controlled with the use of an external switch or relay pack. -
Page 10: Service, Maintenance & Repair
& maintenance manual able to download from www.swefog.com. If not, refer servicing to qualified technical personnel, or contact a preferred Swefog dealer. Preferred dealers have qualified service technicians, and will be able to perform most service... -
Page 11: Swefog World-Wide Warranty
Returning an item for repair covered by warranty Before any units are sent to Swefog for repair, a Return (RMA) Form has to be filled out. This RMA form can be obtained by contacting Swefog info@swefog.com...
