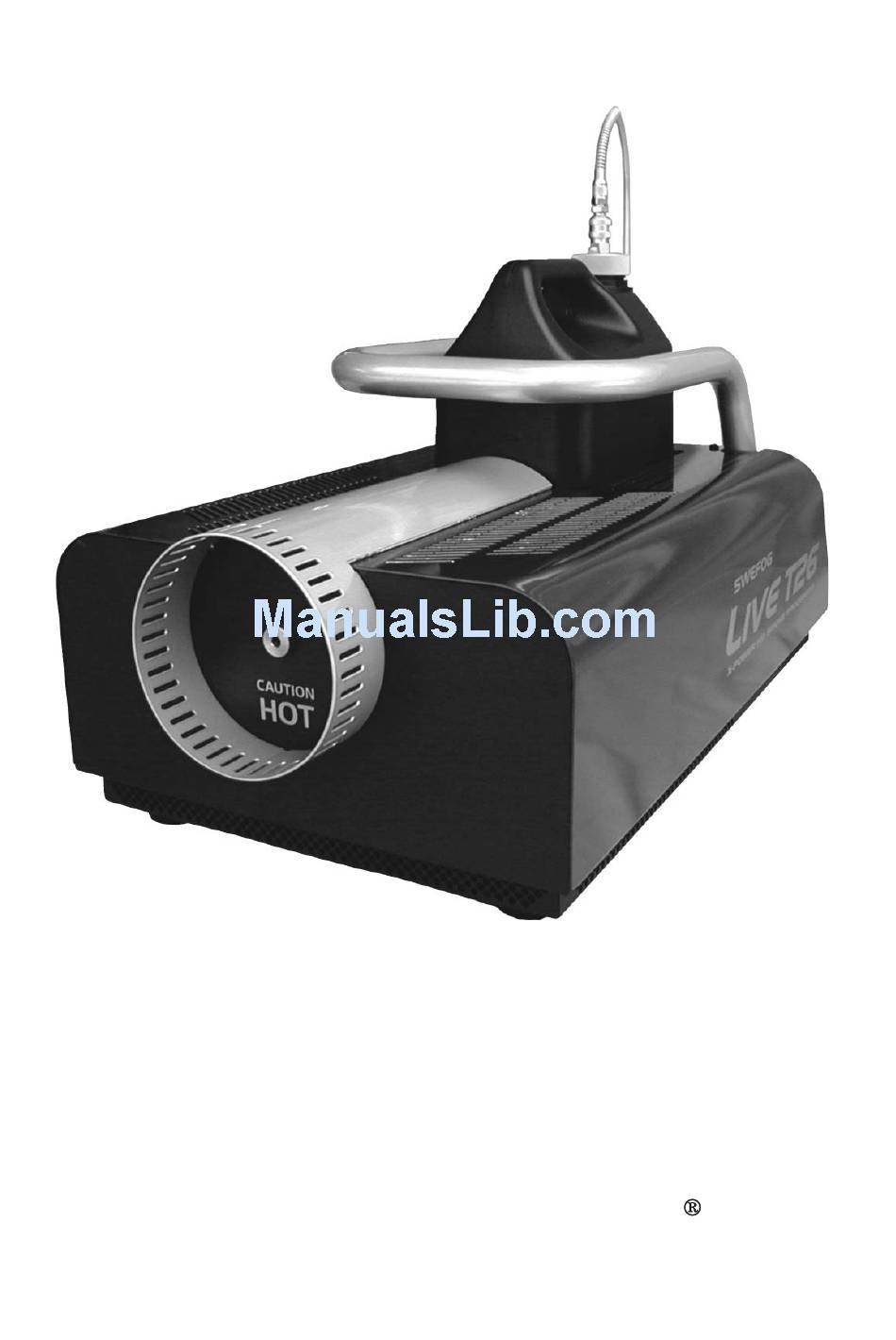

- Page 1 IVE T26 IVE T26 X-POWER HD SMOKE PROCESSOR X-POWER HD SMOKE PROCESSOR OWNER´S MANUAL Item no. 40 201-240 Live T26 240V 50Hz SWEFOG INDS...
- Page 2 IMPORTANTI! Leggere tutti gli avvertenti prima di montare e usare questo apparecchio. Manufactured by: SWEFOG TECHNOLOGY GROUP AB P.O. Box 106 SE-682 23 FILIPSTAD, Sweden Tel: +46 590 122 50 Fax: +46 590 122 09 e-mail: info@swefog.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS: HOW TO USE THIS GUIDE QUICK SETUP GUIDE 1. INTRODUCTION A few words about smoke fluid The Swefog Live T26 How does a smoke machine work? EPR-Electronic Pump Ramping Intelligent Soft Start 2. UNPACKING 3. SAFETY PRECAUTIONS 4. -
Page 4: How To Use This Guide
QUICK SETUP GUIDE: 1. Read chapter 3: “safety precautions”. 2. Place machine on a level surface. 3. Prepare a SWEFOG smoke fluid canister, screw the metal capsule on and tighten. Place the canister in the machine and connect the fluid suction tube. -
Page 5: Introduction
1. INTRODUCTION: The Live T26 is a high power smoke generator. Due to the very precise output control and the integrated fan outlet control, the machine can be used for many purposes. • Very high output – 1,800 m / minute at full power. -
Page 6: The Swefog Live T26
The Live T26 is advanced, but very easy to use, with the use of an alphanumerical display and a simple-to-use menu system. -
Page 7: Intelligent Soft Start
EPR will automatically reduce the pump speed. This is a fully automatic system, controlled by the processor, and cannot (and should not) be disabled or modified by the user. 2. Unpacking: The Live T26 package contains: • One machine. •... - Page 8 Service internal parts ONLY if you have the know-how and experience to perform the service correctly. If not, please contact a Swefog service centre or the manufacturer. NOTE: Incorrect service works and/or the use of non-original spare parts will void the warranty.
-
Page 9: Ce-Conformity
Output nozzle 1. Place the machine on a level surface. 2. Use Swefog fluid, 5L canister size. Remove the plastic capsule, replace it with the canister metal fitting with fluid suction pipe (included with the machine). Ensure an airtight connection. -
Page 10: Fog Capacity
XLR & DIN connectors XLR & DIN connectors Support handle Mains cable Fan fuse Fan connector 6. If the machine is to be used with DMX: Connect a 5-pin DMX cable to the male (=input) XLR connector. See below for further instructions. 6. -
Page 11: Wiring & Connections
Blue: Neutral Yellow / Green: Earth The Live T26 is fitted with a mains cable with European standard plug with earth. If the plug is replaced, connect the wires as shown above. Use a mains plug approved for min. 16 Amps. -
Page 12: Din Remote 0-10V Analogue Connection
Pin 3 = Fan speed Pin 4 = Smoke output Pin 5 = +12V out (used with Swefog remote control only, NOT for use with a light desk or for any other purpose). Do NOT link or short circuit any pins! It may damage the machine´s electronics. -
Page 13: Operation
8. OPERATION : 8.1 Control panel & display: All settings & programming is made with the use of the control panel & the alphanumerical display. SWITCH ON: Plug the T26 into a power socket with the appropriate voltage. NOTE: The machine consumes 2,600 Watts = 11 Amps at 230V and NO fan connected. -
Page 14: Operation Mode
8.2 Operation mode: • Press MODE switch to select how to operate the machine: DMX / Manual / Timer / Remote 0-10V/ switch off. Op mode MANUAL >P MODE MODE Time:00:00 smoke Op mode DMX Ch: 001 >P 0% Press MODE to select how MODE to control the machine. -
Page 15: Manual Mode
(connect unit 2 to 3, unit 3 to 4 etc), until all units are connected. Daisy-chain rule: You need one DMX cable for each unit you want to connect in the daisy- chain. Swefog Live T26 or Swefog Live T26 or Swefog Live T26 or... -
Page 16: Timer Mode
8.2.3. Timer mode: Select timer mode to produce fog with fixed time intervals. The T26 uses the microprocessor to control operate / delay time, which makes the timer very precise. Time: 00: 00 smoke >P: 1. INTRODUCTION: The machine is using the microprocessor to control the timing process, which makes smoke &... -
Page 17: Remote / 0-10V Mode
8.2.4. Remote / 0-10V mode: Select this mode to control the machine with a Swefog analog remote controller (optional) or a 0-10V light desk. Op mode REMOTE Connect the remote controller or a cable from a light desk to the 5-pin DIN connector. The fog output and the fan speed is proportional to the amount of voltage supplied. -
Page 18: Mms - Mode Memo System
If the machine is to be used with a fog distribution system, it should be placed so that the fog is discharged into the distribution system´s inlet or as directed by the distribution systems instructions. Always use the Swefog ducting system adaptor (optional). Do NOT slip the tubing over the end of the machine´s output collar. -
Page 19: Flying Installation
If a problem is discovered by the processor, it will automatically shut down the machine, and display an error code. If an error code appears in the display, contact your Swefog dealer for solving the problem. The basic error messages are: C101, C102, C103. All these error codes... -
Page 20: Service, Maintenance & Repair
9. SERVICE, MAINTENANCE & REPAIR: The Live T26 is made with industrial standard components. If regular care and maintenance is performed, the machine will last for many years of use. If you have good know-how and great experience with smoke machines, you may perform cleaning and basic troubleshooting. -
Page 21: Troubleshooting
10. TROUBLESHOOTING: WARNING RISK OF ELECTRIC SHOCK! DISCONNECT FROM MAINS BEFORE OPENING THE MACHINE! SOME INTERNAL PARTS MAY BE EXTREMELY HOT ! • MACHINE DOES NOT START UP WHEN CONNECTED TO A POWER SOCKET: Q: Does the “standby” indicator illuminate red? YES: Press and HOLD the “OK”... - Page 22 Please note, there might be other error messages displayed, depending on updated software and technical changes / improvments. Check with your dealer or at www.swefog.com for an updated manual and service bulletins. Never repair or modify the machine yourself. Refer to qualified personnell.
-
Page 23: Swefog World-Wide Warranty
Returning an item for repair covered by warranty Before any units are sent to Swefog for repair, a Return Form has to be filled out. This form can be obtained by contacting Swefog info@swefog.com or can be downloaded from our website www.swefog.com.
