Airzone AZCEZDAAM Assembly

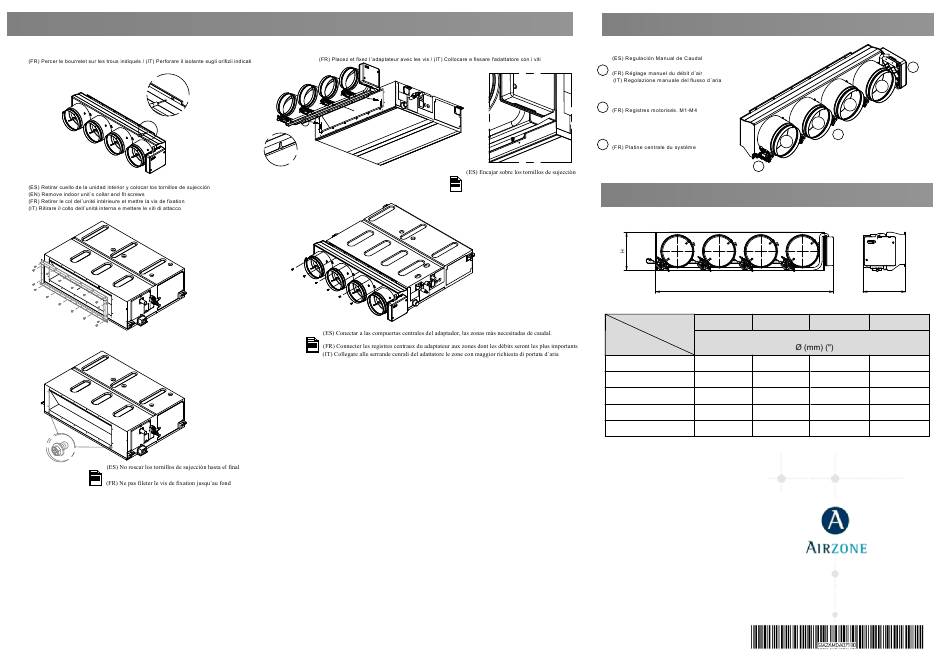

(ES) Montaje / (EN) Assembly / (FR) Montage / (IT) Montaggio (ES) Montaje / (EN) Assembly / (FR) Montage / (IT) Montaggio
1
(ES) Perforar el burlete sobre los orificios indicados / (EN) Drill draught excluder on the holes indicated
2
(EN) Affix screws not fully tight
NOTE
(IT) Non flettare le viti fino in fondo
3
(ES) Coloque y fije el adaptador con los tornillos / (EN) Place and fix adaptor with the screws
(EN) Fit on the supporting screws
(FR) Ajuster aux vis de fixation
NOTE
(IT) Incastrare sulle viti
(EN) Connect the central motorized dampers to the zones with higher airflow requirements
NOTE

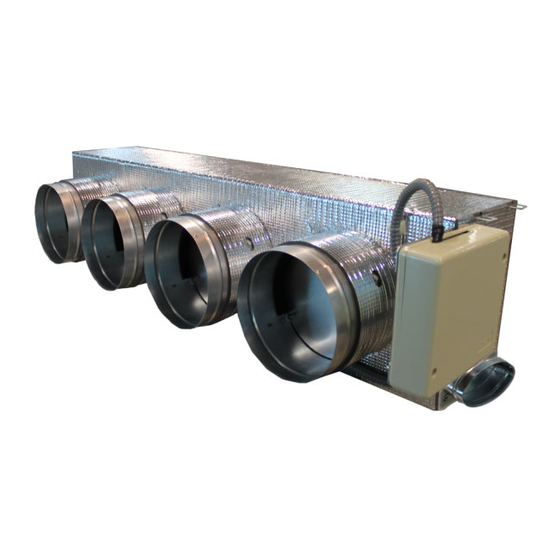

(ES) Adaptador motorizado / (EN) Motorized adapter
(FR) Adaptateur de moteur / (IT) Adattatore motorizzate
(EN) Manual Air flow adjustment
1
(ES) Compuertas motorizadas. M1-M4
(EN) Motorized dampers. M1-M4
2
(IT) Serrande motorizzate. M1-M4
(ES) Placa central de sistema
(EN) Main controller
3
(IT) Scheda centrale del sistema
1
(ES) Dimensiones / (EN) Size / (FR) Dimensions / (IT) Dimensioni (ES) Dimensiones / (EN) Size / (FR) Dimensions / (IT) Dimensioni
L
Talla / Size
XS S
Taille / Dimensione
Compuertas / Dampers
Registres / Serrande
667 x 245 x 265
2
(200) (8)
667 x 245 x 265 867 x 245 x 265
3
(150) (6) (200) (8)
867 x 245 x 265
4
(150) (6)
5
6
3
M1
M2
M3
2
M4
W
L
M
L x H x W (mm)
1107 x 245 x 265 1357 x 245 x 265
(200) (8) (200) (8)
1107 x 245 x 265 1357 x 245 x 265
(150) (6) (200) (8)
1357 x 245 x 265
(150) (6)
