- Page 1 USER MANUAL LT10 HUGO TILLQUIST AB Box 1120 SE-164 22 KISTA Sweden Tel: +46 8 594 632 00 info@tillquist.com www.tillquist.com Manual LT10 Rev: EN2020-11-30...
- Page 2 Thank you for choosing LT10 från Hugo Tillquist AB! The LT10 is a 1-channel configurable transducer for measuring AC voltage, current and frequency. The analogue output is freely configurable within the range 0–20 mA, the supply voltage for a very wide range and both inputs and outputs are galvanically isolated.
- Page 3 Table of contents Product description ................... 1 Technical data ................... 1 Instructions......................3 Mounting ....................3 Installation ....................3 Operation ....................3 Warning! ....................3 Maintenance ..................... 3 Inputs - Outputs ..................4 Symbols on the appliance ................. 4 ConfigLQT software ................... 4...

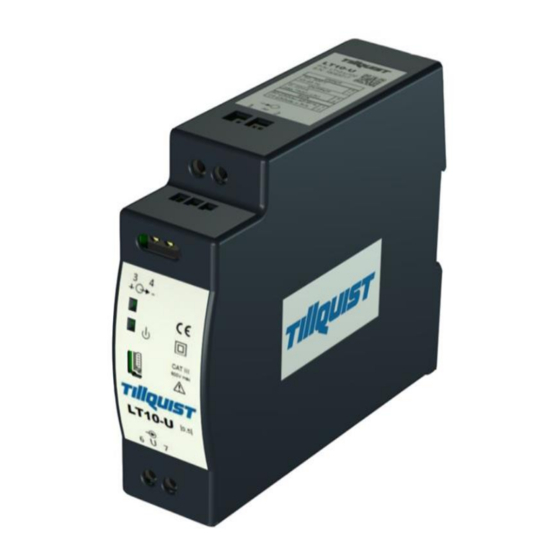

- Page 4 The LT10 is a configurable 1-phase transducer which comes in 2 different variants: LT10I for measuring of AC current8 and frequency and LT10-U for measuring of AC voltage and frequency. The configuration is easily done via its USB-port with use of our free software ConfigLQT.
- Page 5 2 x In – continuously, 10 x In – 15 s, 20 x In – 1 s Measuring range F 10 – 120 Hz Configurable measuring range 0 – 120 Hz Consumption < 0,5 VA Models LT10-I & LT10-U General data Acurracy class Overvoltage category CAT III Galvanic isolation All coonections are galvanically isolated...
- Page 6 2 Instructions 2.1 Mounting The transducer is mounted on a 35mm DIN rail on a wall or device cabinet for suitable protection. The enclosure shall not be accessible without tools. 2.2 Installation The installation is to be made by competent personnel and in accordance with applicable regulations.
- Page 7 2.6 Inputs - Outputs 2.7 Symbols on the appliance Double insulated device Warning for life-threatening or hazardous for properties situations 2.8 ConfigLQT software ConfigLQT is our free software which is used to configure our transducers. If you want to read more about it, check our ConfigLQT manual. There you can find detailed info regarding installation, configuration and firmware upgrade as well as connection diagrams, examples of settings etc.
