TILLQUIST P20 User Manual

Transducer of temperature and standard signals
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
TRANSDUCER
of TEMPERATURE
and STANDARD
SIGNALS
P20 type
USER'S MANUAL


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P20 and is the answer not in the manual?

Questions and answers

Haythal Ghamrawi
March 27, 2025

Dear Sir/Madam . Transducer P 20 Tillquist power by lumil PD 14 used for TRANSFORMER TAP CHANGER TO GIVE THE THE TAP POSITION , DU YOU HAVE SUCH TRANSDUCER

0

Related Manuals for TILLQUIST P20

Summary of Contents for TILLQUIST P20

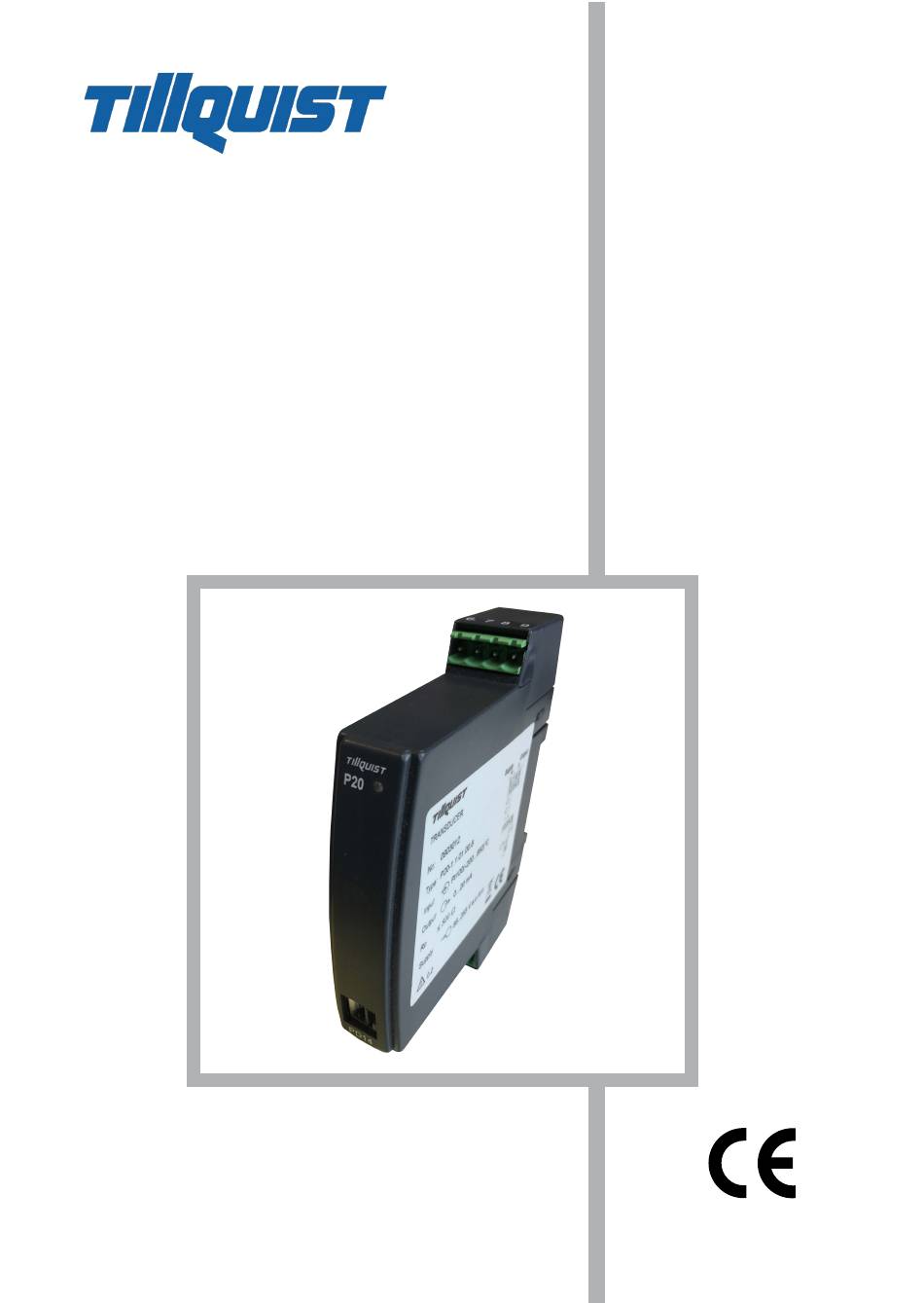

  • Page 1 TRANSDUCER of TEMPERATURE and STANDARD SIGNALS P20 type USER’S MANUAL...

  • Page 3: Table Of Contents

    Contents 1. APPLICATION ................... 5 2. TRANSDUCER SET ................... 5 3. OPERATIONAL SAFETY ................6 4. INSTALLATION ..................7 4.1. Fitting way ................7 4.2. External electrical connection diagrams ......8 5. TRANSDUCER CONFIGURATION BY MEANS OF THE LPCon PROGRAM ................ 9 5.1. Configuration of the transducer input type ......10 5.2. Configuration of the individual analog output characteristic ............11 5.3. Configuration of the analog output at overflows ....12 5.4. Readout of the measured value ..........13 6. TECHNICAL DATA ................... 15 7. EXECUTION CODES ................17 8. MAINTENANCE AND GUARANTEE ............19...

  • Page 5: Application

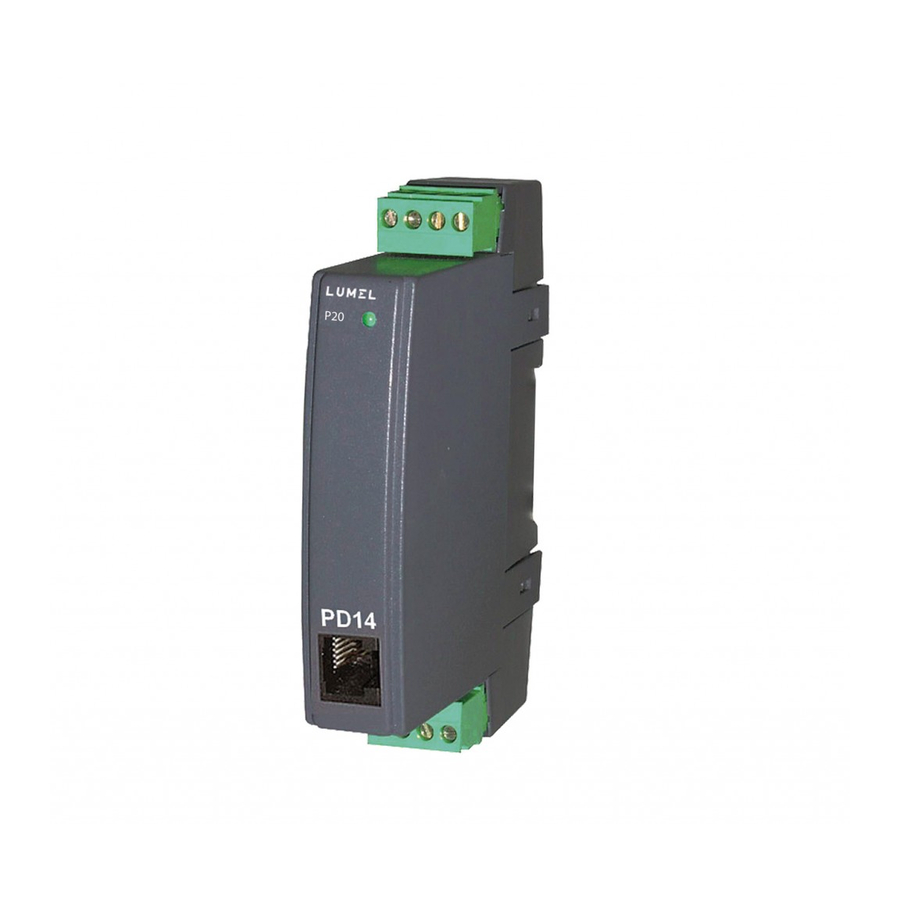

    The transducer is fully configurable through the PD14 programmer. By means of this programmer, one can change the input type, the measu- rement averaging time and rescale the analog output acc. to the indivi- dual output characteristic, and also read out the measured value. 2. TRANSDUCER SET The set of the P20 transducer is composed of: - P20 transducer 1 pc. - User’s manual 1 pc. - Guarantee card 1 pc - Plug with screw terminals 2 pcs.

  • Page 6: Operational Safety

    3. OPERATIONAL SAFETY In the safety service scope, the transducer meets to requirements of the EN 61010-1 standard. Observations concerning the operational safety All operations concerning transport, installation, and commissioning as well as maintenance, must be carried out by qualified, skilled personnel, and national regulations for the prevention of accidents must be observed. Before switching transducer on, one must check the correctness of connections to the network. When connecting the supply, one must remember that a switch or a circuit-breaker should be installed in the building. This switch should be located near the device, easy accessible by the operator, and suitably marked as an element switching the transducer off. Do not connect the transducer to the network through an autotransformer. Before removing the transducer housing, one must switch the supply off and disconnect measuring circuits. The removal of the transducer housing during the guarantee contract period may cause its cancellation. The programmer socket is only use to connect the PD14 programmer. After the transducer programming, one must insert the hole plug. Non-authorized removal of the housing, inappropriate use, incorrect installation or operation, creates the risk of injury to personnel or a transducer damage. For more detailed information, please study the User’s Manual.

  • Page 7: Installation

    4. INSTALLATION 4.1. Fitting way P20 transducers are designed to be mounted on a 35 mm rail accor- ding to EN 60715. The transducer housing is made of a self-extinguishing plastic. Housing dimensions are: 22.5 x 120 x 100 mm. On the transducer outside, there are screw or self-locking terminal strips, which make possible the connection of external wires with a 2.5 mm cross-section (supply and output) and up to 1.5 mm (input). Connector of the PD14 programmer Fig. . Overall dimensions and fitting way of the transducer...

  • Page 8: External Electrical Connection Diagrams

    The electrical connection diagram is also situated on the transducer housing. In case of the transducer work in an environment with high interferences, one must apply shielded wires in the transducer input. RTD in a three-wire RTD in a two-wire TC or voltage system system or resistance - 60... 60 mV measurement 0... 60 mV - 150... 150 mV 0... 150 mV Voltage Current - 10... 10 V - 20... 20 mA 0... 10 V 0... 20 mA 0... 5 V 4... 20 mA Fig.2. Electrical connection diagrams of the P20 transducer.

  • Page 9: Transducer Configuration By Means Of The Lpcon Program

    Fig. . Configuration of the connection with the P0 transducer. After the connection configuration, one must choose Device -> Trans- ducers P -> P20 from the menu, and next click the Readout icon in order to read out all parameters. One can also read out parameters individually in each group clicking the Refresh push-button.

  • Page 10: Configuration Of The Transducer Input Type

    5.1. Configuration of the transducer input type Three developable lists are accessible in the parameter group “Input configuration”, by means of which, one can choose the input type, the measuring range and the measurement averaging time. One must con- firm changes, clicking the Apply push-button. Fig. . View of the LPCon program window “Input configuration”...

  • Page 11: Configuration Of The Individual Analog Output Characteristic

    5.2. Configuration of the analog output characteristic The P20 transducer enables the conversion of measured values into an output signal on the base of the individual linear characteristic of the analog output. On the base of given by the user coordinates of two points, the transducer determines (from the system of equations) coefficients a and b of the individual characteristic.

  • Page 12: Configuration Of The Analog Output At Overflows

    Fig. . View of the LPCon program window “Individual characteristic” 5.3. Configuration of the analog output at overflows The user has the additional possibility in the P20 transducer to confi- gure the preservation of the analog output after the signal overflow oc- currence on the measuring input. By default, the service of overflows is switched out – then, after the signal overflow on the input, the output is still proportional to the steered up input beyond the basic output range. After switching the overflow service on, the user can define himself by which value the output is to be steered up after the occurrence of the higher or lower overflow.

  • Page 13: Readout Of The Measured Value

    Fig. . View of the “ Output configuration at overflows” window of the LPCon program. 5.4. Readout of the measured value By means of the LPCon program, one can also read out the actually measured value, check the output type, read out the factory serial num- ber and the programming version. These quantities are located in the Measured values window.
  • Page 14 Fig.8. View of the “ measured values” window of the LPCon program...

  • Page 15: Technical Data

    6. TECHNICAL DATA Basic parameters: - analog output galvanicaly isolated: - current 0/4...20 mA - voltage 0...10 V - maximal load resistance of the £ 500 W current output - minimal load resistance of the ³ 500 W voltage output - accuracy class - averaging time of the transducer: - range: d.c. current [mA], d.c. voltage [V] ³ 0.1 s ³ 0.3 s - other ranges - consumption < 3 VA - preheating time of the transducer 10 min - transducer response time: - range: d.c. current [mA], d.c. voltage [V] ³ 0.2 s ³ 0.4 s - other ranges - current flowing through RTD...
  • Page 16 Input parameters: - resistance of voltage input [V] > 1 MW - resistance of current input [mA] 12 W ±1% Sustained overload: - TC and RTD 1.1 X - voltage, current and resistance 1.3 X Short duration overload: - voltage input 5 U - current input 10 I Ensured protection level acc. to EN 60529: - housing IP 40 - from terminal side...

  • Page 17: Execution Codes

    7. EXECUTION CODES Execution codes of the P0 transducer Table . TRANSDUCER P20 - XX XX Analog outputs: current 0... 20 mA ...... 1 current 4... 20 mA ...... 2 voltage 0... 10 V ......3 Supply: 85...253 V a.c./d.c......1 20...40 V a.c./d.c.......2 Kind of input see table 3 ..........XX Execution: standard ............
  • Page 18 Coding of the P20 transducer input kind Table . Type of TC of K type -200...1200 Range [ ° sensor/input 0...1200 0...1000 Pt100 RTD -200...850 0...800 0...850 0...600 0...600 0...400* 0...400 -200...200* 0...200 TC of S type 0...1760 -200...200 0...1600 -100...100* 0...1400* Pt 250 RTD -200...850 0...1200* 0...850 0...1000*...

  • Page 19: Maintenance And Guarantee

    00 – standard execution 7 – with an extra quality inspection certificate 8. MAINTENANCE AND GUARANTEE The P20 transducer does not require any periodical maintenance. In case of some incorrect operations: After the dispatch date and in the period stated in the guarantee card: One should return the transducer to the Manufacturer’s Quality...
  • Page 20 ACCESSORIES for MEASURING INSTRUMENTS (SHUNTS)  CUSTOM-MADE PRODUCTS ACCORDING CUSTOMER’S REQUIREMENTS  WE ALSO OFFER OUR SERVICES IN THE PRODUCTION OF: ALUMINIUM ALLOY PRESSURE CASTINGS  PRECISION ENGINEERING and THERMOPLASTICS PARTS  SUBCONTRACTING of ELECTRONIC DEVICES (SMT)  PRESSURE CASTINGS and OTHER TOOLS  HUGO TILLQUIST AB Box 1120, 164 22, Kista, Sweden Finlandsgatan 16, Kista Tel +46 8 594 632 00 www.tillquist.com...
