Transducer of temperature and standard signals (20 pages)
Summary of Contents for TILLQUIST LQT60

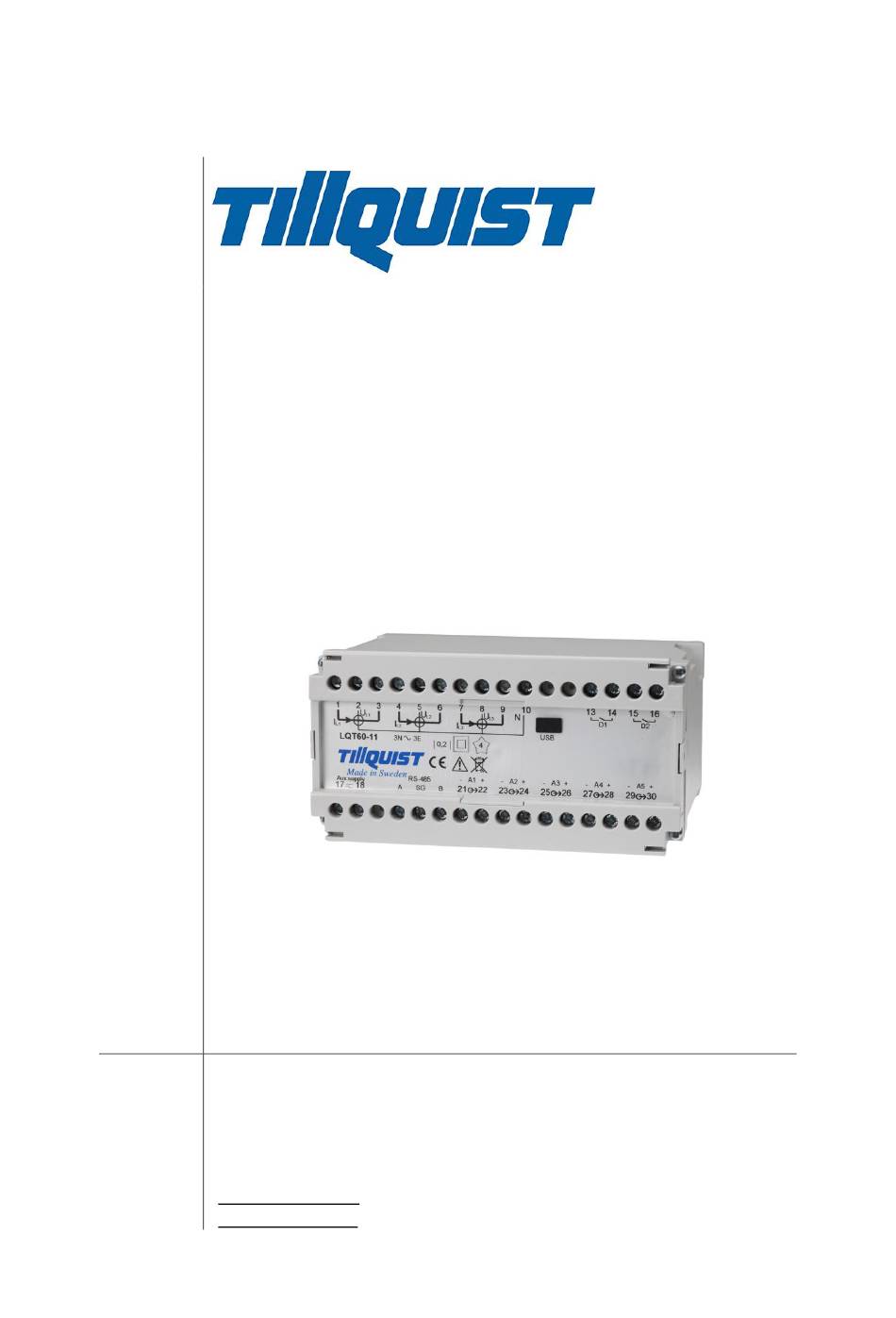

Page 1
USER MANUAL LQT60 HUGO TILLQUIST AB Box 1120 SE-164 22 KISTA Sweden Tel: +46 8 594 632 00 info@tillquist.com www.tillquist.com Manual LQT60 Rev: EN2020-11-30...
Page 2
Thank you for choosing LQT60 from Hugo Tillquist AB! The LQT60 is a configurable multitransducer for all electrical quantities. All areas for AC current and voltage (True RMS) are covered by one single unit. With its 5 analog and 2 digital outputs together with RS485, it offers almost unlimited possibilities.
Page 3
Table of contents Product description ................... 1 Technical data ................... 1 Instructions......................2 Mounting ....................2 Installation ....................2 Operation ....................2 Warning! ....................2 Maintenance ..................... 2 Inputs - Outputs ..................3 Symbols on the appliance ................. 3 Installation of ConfigLQT ................3...
Page 4

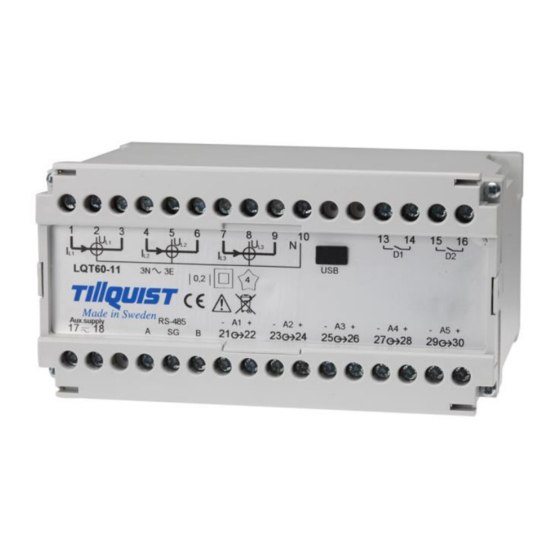

1 Product description The LQT60 is a configurable 3-phase multi-transducer, capable for measuring any electrical quantity of a network. It is possible to choose up to 5 of any electrical quantities and link them to the analog outputs. Its 2 transistor outputs can be used to energy pulses or alarm levels.
Page 5
2 Instructions 2.1 Mounting The transducer is mounted on a 35mm DIN rail on a wall or device cabinet for suitable protection. The enclosure shall not be accessible without tools. 2.2 Installation The installation is to be made by competent personnel and in accordance with applicable regulations.
Page 6
2.6 Inputs - Outputs Inputs Analog outputs Chanel SUPPLY Digital outputs 13 / 14 15 / 16 2.7 Symbols on the appliance Double insulated device. Warning for life-threatening or hazardous for properties situations. 2.8 Installation of ConfigLQT ConfigLQT is our free software which is used to configure our transducers. If you want to read more about it, check our ConfigLQT manual.
