OWNER'S MANUAL

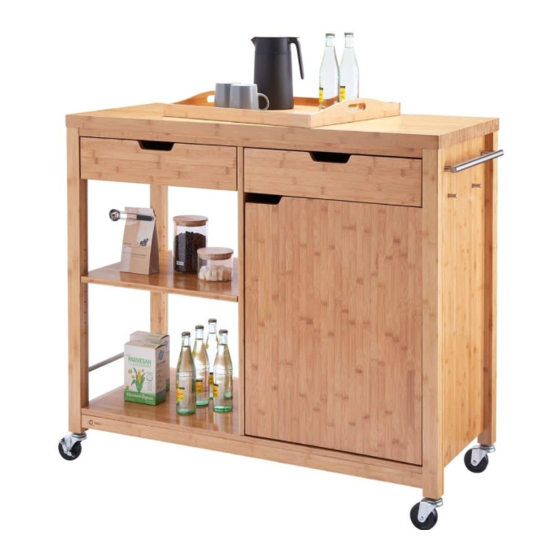

TRINITY PRO 48" BAMBOO KITCHEN ISLAND
W/ CABINET
MODEL # TBFLNA-1408
Important / Important / Importante
FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS
Direct ives int elligent es
POUR DES DIRECTIVES D'ASSEMBLAGE 3D RAPIDES ET FACILES
Inst rucciones Int eligent es
PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D
DOWNLOAD THE FREE APP | TÉLÉCHARGER L'APPLICATION GRATUITE | DESCARGUE LA APLICACIÓN GRATUITA
Advertisement
Related Manuals for TRINITY Pro TBFLNA-1408
Summary of Contents for TRINITY Pro TBFLNA-1408
- Page 1 OWNER’S MANUAL TRINITY PRO 48” BAMBOO KITCHEN ISLAND W/ CABINET MODEL # TBFLNA-1408 Important / Important / Importante FOR QUICK & EASY 3D ASSEMBLY INSTRUCTIONS Direct ives int elligent es POUR DES DIRECTIVES D’ASSEMBLAGE 3D RAPIDES ET FACILES Inst rucciones Int eligent es PARA INSTRUCCIONES DE ENSAMBLAJE RÁPIDAS Y SENCILLAS EN 3D...
- Page 2 PARTS LIST Your TRINITY PRO 48” Bamboo Kitchen Island w/ Cabinet should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com.
- Page 3 PARTS LIST DRAWER RIGHT DRAWER BOTTOM HANDLE (2) HINGE (2) PANEL (2) PANEL (2) DRAWER SHELF HANDLE HINGE SCREW (12) + SUPPORT (9) SCREW (4) SCREW (12) + (1) extra (1) extra SCREW (9) CONNECTOR SCREW CAM LOCK DOWEL (24) + (1) extra (24) + (1) extra (20) + (2) extra HANGER STUD (7)
- Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Note: To protect product from any scratches or A (1) C (1) D (1) F (1) FF (24) MM (1) possible damage, please make sure all bamboo parts are laid on a clean and soft cloth / surface during assembly process.
- Page 5 ASSEMBLY INSTRUCTIONS STEP 2 Lay BOTTOM SHELF (B) on a clean B (1) M (2) EE (6) HH (4) MM (1) surface with holes facing up. Insert (4) DOWELS (HH) into inner holes as shown. Orient LOWER SHELF FRAME (M) with TRINITY logo facing out.
- Page 6 ASSEMBLY INSTRUCTIONS STEP 4 Insert (2) DOWELS (HH) into bottom of DIVIDER EE (3) HH (2) MM (1) (E) as shown. Connect DIVIDER (E) with BOTTOM SHELF (B) via inserted (2) DOWELS (HH), making sure to align grooves on BOTTOM SHELF (B), DIVIDER (E) and BACK FRAME (F).
- Page 7 ASSEMBLY INSTRUCTIONS STEP 6 Insert (2) DOWELS (HH) into each side of GG (10) HH (4) MM (1) BOTTOM SHELF (B) as shown. Connect LEFT SIDE FRAME (C) with BACK FRAME (F) and BOTTOM SHELF (B). Make sure all CONNECTOR SCREWS (FF) & DOWELS (HH) are inside corresponding holes.
- Page 8 ASSEMBLY INSTRUCTIONS STEP 8 With another person, carefully stand partially assembled BB (9) S (2) CC (4) II (7) Kitchen Island upright, making sure LOCKING CASTERS are locked. Install (1) HANDLE (S) to LEFT SIDE FRAME (C) with (2) HANDLE SCREWS (CC) and tighten fully.
- Page 9 ASSEMBLY INSTRUCTIONS STEP 9 GG (13) HH (8) MM (1) Insert (4) DOWELS (HH) on each corner on top of LEFT and RIGHT SIDE FRAME (C & D). Insert (4) DOWELS (HH) into top of BACK FRAME (F) as shown. With another person, lift TOP (A) and place onto Kitchen Island, making sure CONNECTOR SCREWS (FF) on...
- Page 10 ASSEMBLY INSTRUCTIONS STEP 10 N (2) O (2) P (2) Q (2) R (2) AA (12) MM (1) As shown in image 1, align and press dowels on DRAWER FRONT PANEL (N) and DRAWER BACK PANEL (P) into blind holes on DRAWER RIGHT PANEL (Q). Make sure grooves of all panels are aligned.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 11 I (1) J (1) K (1) As shown in image: Pull out slides on left side frame and divider and align them with slides on one assembled drawer. Push drawer fully into Kitchen Island. Repeat to assemble other drawer to Kitchen Island.
- Page 12 ASSEMBLY INSTRUCTIONS STEP 12 T (2) DD (12) MM (1) L (1) Place DOOR PANEL (L) on a clean surface with 2 circular pockets facing up. As shown in the image, take HINGE (T) and fit one side into circular pocket. Screw (2) HINGE SCREWS (DD) through HINGE (T) into DOOR PANEL (L).
- Page 13 USAGE INSTRUCTIONS Adjusting SHELF Position Reposition SHELF SUPPORTS (BB) at desired heights up and down along holes of LEFT SIDE FRAME (C), RIGHT SIDE FRAME (D) and DIVIDER (E). SHELF (I) and CABINET SHELF (J) can now move up and down accordingly.
- Page 14 SERVICE PARTS LIST – TBFLNA-1408 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description LNA-06-012-4720 ZSV-99-007-3010 Non-locking Caster XNA-01-006-0830 Dowel XXX-97-002-0001 Wrench XSV-02-018-0001 Hanger Stud LNA-03-059-4420 Bottom Shelf ZSV-01-028-1514 Cam Lock LNA-14-028-2034 Divider LNA-14-030-2037 Right Side Frame...
- Page 15 SERVICE PARTS LIST – TBFLNA-1408 TRINITY Customer Service provides the following replacement parts: © 2020 TRINITY - 800.985.5506...
- Page 16 WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of their environment and ensure that they use the product in a safe and responsible manner.
- Page 17 CARE AND MAINTENANCE • Avoid harsh, abrasive cleaners, and other corrosive chemicals. • Wood product can be cleaned with damp cloth and wiped dry immediately with dry cloth. If needed, solvent-based wood furniture cleaner can be used. • Keep dry but out of direct sunlight and avoid damp environments. •...
- Page 18 PRODUCT REGISTRATION Thank you for purchasing a TRINITY PRO 48” Bamboo Kitchen Island w/ Cabinet. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to customerservice@trinityii.com.
- Page 19 Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY PRO 48” Bamboo Kitchen Island w/ Cabinet (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s obligation...
- Page 20 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...
