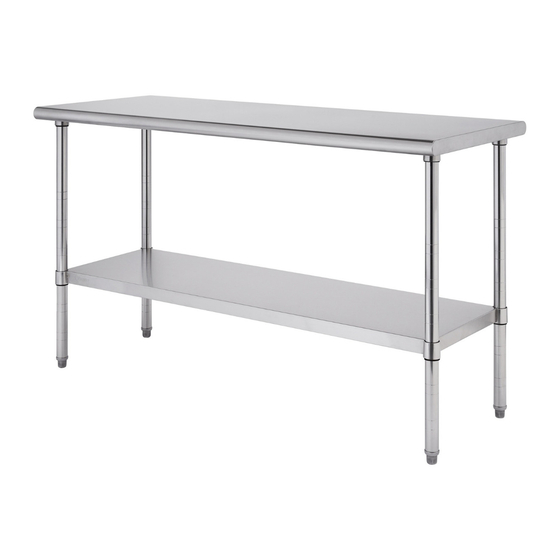

- Page 1 OWNER’S MANUAL TRINITY PRO ECOSTORAGE® STAINLESS STEEL TABLE Model # TLS-0204 (48”x24”) / TLS-0205 (60”x24”) / TLS-0214 (72”x30”)
- Page 2 © 2018 TRINITY - 800.985.5506...
-
Page 3: Parts List
PARTS LIST Your TRINITY PRO Stainless Steel Table should include the following parts. Please inspect box contents to ensure you have received all components. If you are missing any parts, need assistance with assembly or have questions, please contact TRINITY Customer Service: 800.985.5506 or customerservice@trinityii.com. - Page 4 ASSEMBLY INSTRUCTIONS STEP 1 Place TABLE TOP (A) top side down on a clean A (1) C (4) smooth surface. Screw each LEG (C) into circular collars on corners of TABLE TOP (A). Tighten clockwise until fully secured. STEP 2 Slide SHELF (B) carefully top side down over B (1) each LEG (C) at same time, until it rests on the...
- Page 5 ASSEMBLY INSTRUCTIONS STEP 3 Note that each LEG (C) has slight horizontal line D (8) indentations. Each SLIP SLEEVE (D) has raised horizontal lines inside designed to lock them in place on LEG (C). On LEG (C), place 1 pair of SLIP SLEEVES (D) at the desired level.
- Page 6 SERVICE PARTS LIST – TLS-0204 / TLS-0205 / TLS-0214 TRINITY Customer Service provides the following replacement parts: Part Number Description Part Number Description XBS-06-008-4824 48” Table Top XBS-03-023-6823 72” Shelf XBS-06-008-6024 60” Table Top XGL-04-020-3300 XBS-06-008-7230 72” Table Top XSV-98-004-3283 Feet Leveler XBS-03-023-4417 48”...
-
Page 7: Care And Maintenance
WARNINGS 1. Read and understand all instructions. Failure to follow all instructions may result in injury and/or damage. 2. The warnings, cautions, and instructions discussed in this manual cannot cover all possible conditions or situations that may occur. The user must always be aware of their environment and ensure that they use the product in a safe and responsible manner. - Page 8 © 2018 TRINITY - 800.985.5506...
-
Page 9: Product Registration
PRODUCT REGISTRATION Thank you for purchasing a TRINITY PRO Stainless Steel Table. In order to register your product and receive streamlined customer service, please fill out the following Product Registration Form and (1) fax the form to 310.347.4134 (2) complete the Product Registration Form online at www.trinityii.com or (3) scan and email the form to... - Page 10 © 2018 TRINITY - 800.985.5506...
-
Page 11: Year Limited Warranty
Trinity International Industries (“Trinity”) warrants to the original consumer purchaser (“Purchaser”) of the TRINITY PRO Stainless Steel Table (“Product”) that each Product shall be free from defects in workmanship and materials for a period of 1 year from the date of original purchase. Trinity’s obligation under this... - Page 12 CONTACT US QUESTIONS? NEED PARTS? WE ARE HERE TO HELP! Please feel free to contact us. There are no questions too small, or any problems too big. We’re committed to providing our customers with the highest level of service. TRINITY Customer Service TEL: 800.985.5506 FAX: 310.347.4134 EMAIL: customerservice@trinityii.com...
